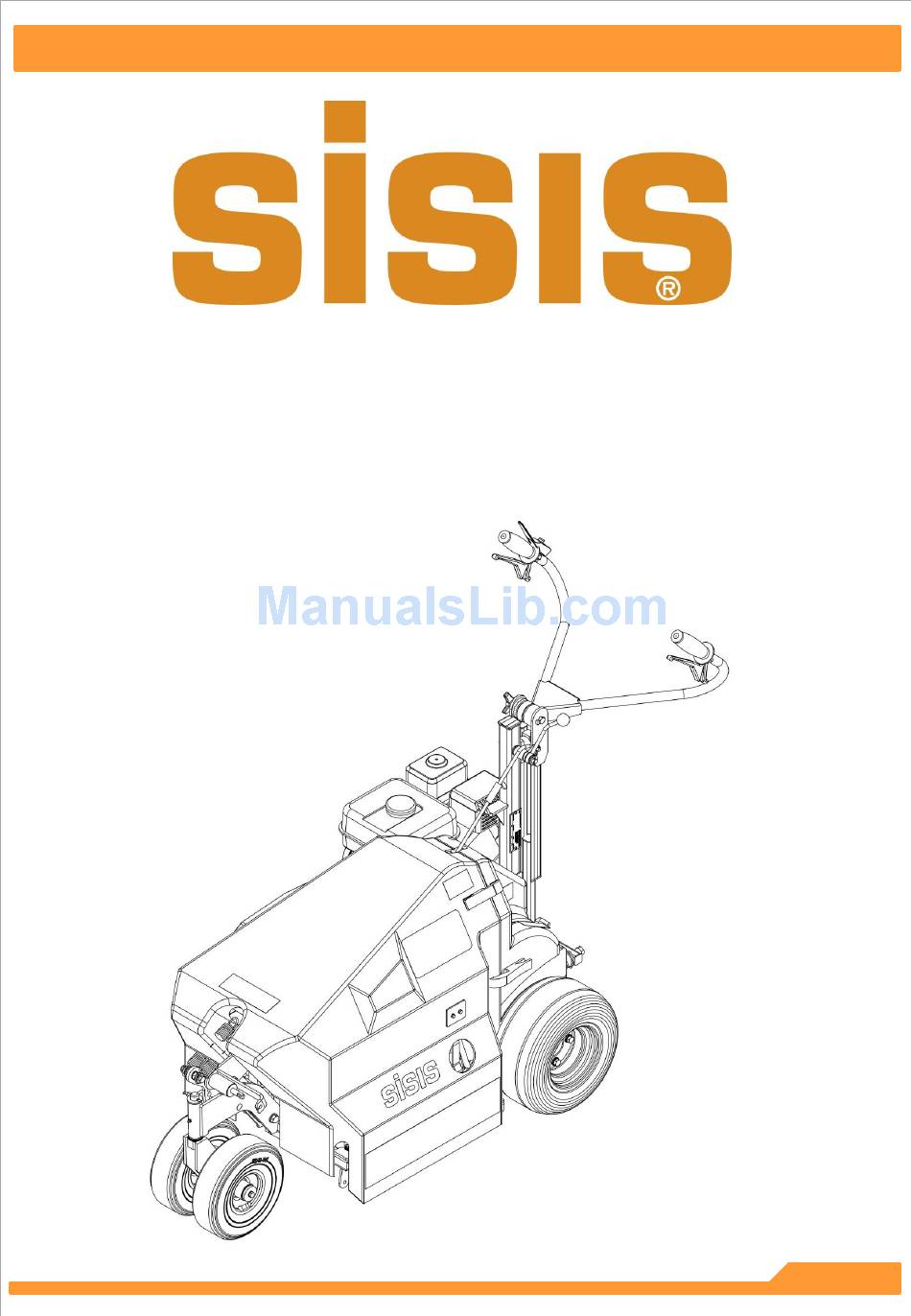

- Page 1 DART INSTRUCTION MANUAL SP20015_REV3 OCTOBER 2017...
-
Page 2: Serial Numbers
ENGINE SERIAL NUMBER INTRODUCTION The reliability and quality of performance of the SISIS DART depends upon some simple care maintenance carried out regularly. This manual has been prepared to allow the user to carry out all such work. It is advisable to read the instructions carefully. Proper care and attention will enable the machine to give a continuous, satisfactory, and reliable service. -
Page 3: Table Of Contents
READ THE INSTRUCTIONS. We want you to obtain the best performance from this machine. If you have any difficulty in carrying out the following instructions please contact your local SISIS dealer. NEVER Carry out adjustments whilst the machine is running. -
Page 4: Important Safety Instructions
TRAINING CAUTION - Read the instructions contained in this manual with care. If you are in any doubts ask your employer or contact us direct at SISIS. Be familiar with the controls and the proper use of the equipment. •... -
Page 5: Operating Instructions

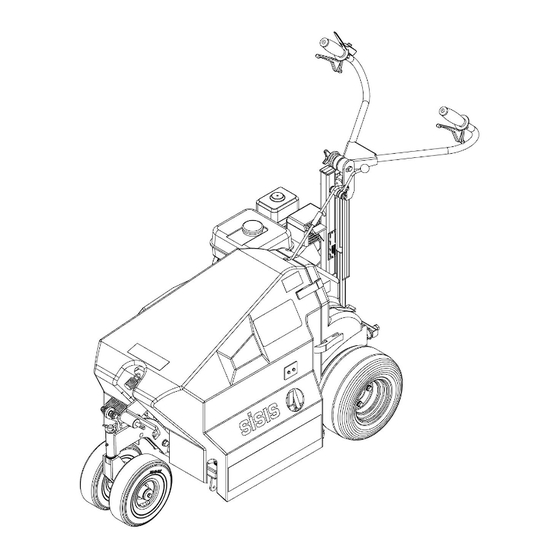

SISIS direct or your local SISIS territory manager or SISIS dealer. OPERATING PRINCIPLE The SISIS DART is an engine driven vertical aerator for the use on fine turf areas such as bowling greens, tennis courts and all areas of fine turf. -
Page 6: Maintenance
ROUTINE MAINTENACE TO CHANGE A DRIVE BELT Loosen the nuts on the bearing block and slide back until the belt may be slipped over the edge of the toothed pulley. When fitting a new belt do not over tension. 10mm of deflection should be left at the centre of the new belt. Image 4 10mm TIMING OF TOOTHED BELTS... -
Page 7: Tines
NOTE Tine spacing = 50mm The tines above are available for use with the dart. Maximum depth for all tines is 100mm. 1.) & 2.) Hollow Coring Tines – 1 - D2107 (12.5mm Dia), 2 – F36447 (16mm Dia) These remove cores of soil to relieve compaction caused by play and rolling and to exchange soil. In areas where compaction is severe use round solid tine treatment say 4-6 weeks before hollow tining to allow moisture to penetrate the compacted layer. - Page 8 NOTES SP20015_REV3 OCTOBER 2017...
- Page 9 DART - PARTS BOOK SP20015_REV3 OCTOBER 2017...
- Page 10 FRAME 36 51 46 41 51 51 46 36 51 51 46 38 51 51 46 Main chassis removed for clarity 37 52 52 45 54 54 45 52 45 52 39 15 52 41 51 51 46 13 53 53 47 43 54 P1.01 SP20015_REV3...
- Page 11 CHASSIS/QTY. 401646_REV0 GUARD BRACKET 401820_REV0 HANDLE SPACER 402054_REV0 COLLAR 402077_REV0 TENSIONER ARM 402081_REV0 BLOCK CLAMP 402102_REV2 MAIN FRAME (DART) 402119_REV0 SPACER 402120_REV0 TENSIONER BLOCK 402125_REV0 AXLE SPACER D1871_REV1 RIVET 3.2 X 6 D1947_REV1 GREASE NIPPLE M6 D8068_REV0 GRUB SCREW M6 X 6...
- Page 12 CHASSIS 16 28 28 22 19 31 31 24 29 P2.01 SP20015_REV3 OCTOBER 2017...
- Page 13 CHASSIS ITEM NO. PART NUMBER DESCRIPTION CHASSIS 2/QTY. 402086_REV0 UPPER LINK ARM 402089_REV0 LINK ARM 402096_REV1 LOWER FRAME 402098_REV0 FRONT WHEEL SHAFT ASSY 402101_REV0 BUSH 402126_REV0 PLUNGER D1947_REV1 GREASE NIPPLE M6 D5622_REV0 SPLIT PIN DIA5 x 50 D8733_REV0 WHEEL F21338_REV0 SPRING F21466_REV0 BUSH NYLON 008 1207 000 02...
- Page 14 DRIVE SYSTEM 57 57 ITEM NO. PART NUMBER DESCRIPTION DRIVE/QTY. 062276_REV0 BEARING 6207-2RS 3 229636_REV0 BUSH AM2530 - 25 401870_REV0 PULLEY BODY 38MM 402022_REV0 TIMING CRANK 402023_REV1 DRIVE CRANK 402031_REV1 CRANK 402051_REV1 SPACER 402052_REV0 SPACER 402069_REV1 PULLEY 402075_REV0 WASHER P3.01 SP20015_REV3 OCTOBER 2017...
- Page 15 DRIVE SYSTEM ITEM NO. PART NUMBER DESCRIPTION DRIVE/QTY. 402076_REV0 SPACER 402080_REV0 BEARING BLOCK 402118_REV0 TOP SHAFT 402121_REV0 TENSION PIVOT 402122_REV0 TENSION PIVOT 402123_REV1 SPRING RETAINER 403080_REV0 LAYSHAFT D1558_REV1 CHAIN D1792_REV1 EXTENSION SPRING D1873_REV1 CHAIN D1947_REV1 GREASE NIPPLE M6 D1986_REV0 HEX SET SCREW M5 X 20 F20184_REV1 TAPERLOCK 2517 25 F21150_REV1...
- Page 16 DRIVE SYSTEM 52 42 47 56 P3.03 SP20015_REV3 OCTOBER 2017...
- Page 17 TINE DRIVE 13 8 13 8 P4.01 SP20015_REV3 OCTOBER 2017...
- Page 18 TINE DRIVE ITEM NO. PART NUMBER DESCRIPTION TINE DRIVE/QTY. 400496_REV0 PLATE 402034_REV0 SPACER 402035_REV0 SPACER 402036_REV0 SPACER 402037_REV0 LINK ARM PLATE 402038_REV0 LINK ARM PLATE 402039_REV0 PIVOT PIN 402040_REV0 WASHER 402111_REV1 TINE HOLDER 402112_REV0 BEARING HOUSING 402113_REV1 SPRING FORK D1947_REV1 GREASE NIPPLE M6 E1-1066_REV0 WASHER SPRING M16...
- Page 19 HANDLE BARS ITEM NO. PART NUMBER DESCRIPTION Handle Bars/QTY. 229754_REV0 CLUTCH LEVER E1-1728_REV0 HEX BOLT M10 X 110 F21063_REV1 LOCK KNOB F21905_REV0 DEADMAN LEVER F22019_REV1 HANDLE GRIP F36320_REV5 BACK FRAME F36405_REV1 LABEL FORWARD DRIVE F37288_REV1 HANDLE BARS SP03011_REV0 WASHER M10 FORM A SP03034_REV0 WASHER M10 SPRING LOCK P5.01...
- Page 20 WHEELS 4 9 9 8 ITEM NO. PART NUMBER DESCRIPTION WHEELS/QTY. 401650_REV0 AXLE DIFF M/C 402055_REV0 AXLE SPACER D8733_REV0 WHEEL E1-1116_REV0 HEX BOLT M8 X 70 F21061_REV0 WHEEL F33607_REV1 WHEEL HUB SP01034_REV0 HEX SET SCREW M10 X 20 SP02006_REV0 NUT M8 NYLOC (T) SP03008_REV0 WASHER M8 FORM A SP03011_REV0...
- Page 21 GUARDS ITEM NO. PART NUMBER DESCRIPTION GUARDS/QTY. 401680_REV1 GUARD D8774 CSK CAP HEAD M5 X 20 F21924_REV1 OVERCENTRE LATCH F36525_REV1 GUARD BRACKET F36526_REV1 GUARD WASHER F37278_REV1 REAR GUARD SP01004_REV0 HEX SET SCREW M5 X 20 SP02002_REV0 NUT M5 NYLOC (T) SP03009_REV0 WASHER M5 FORM A P7.01...
- Page 22 DECALS ITEM NO. PART NUMBER DESCRIPTION DECALS/QTY. F33384_REV1 LABEL CAUTION F33480_REV1 LABEL OIL LEVEL F36332_REV0 DECAL SISIS WHITE 50MM HEIGHT F36403_REV1 LABEL DART F36404_REV1 TINE DRIVE LABEL F36412_REV1 LABEL DART F37269_REV1 LABEL DEPTH GAUGE F37860_REV1 LABEL SISIS UNION JACK HU60069_REV1 LABEL CAUTION P8.01...
- Page 23 SP03008_REV0 WASHER M8 FORM A Cables and Wireing Hidden for Clarity ITEM NO. PART NUMBER DESCRIPTION wires/QTY. F37289_REV4 DEPTH CONTROL CABLE DART F37290_REV4 CLUTCH CABLE DART HUHTM507_REV1 CONVOLUTED TUBING 1MTR SP12013_REV0 ELECTRICAL CONNECTOR 6MM RING (RED) SP12016_REV0 ELE' CONNECTOR FEMALE 2.8mm SPADE (RED) P9.01...
- Page 24 SISIS, Ashbourne Road, Kirk Langley, Derbyshire, DE6 4NJ, England Tel: +44 (0) 1332 824 777 Fax: +44 (0) 1332 824 525 Email: info@sisis.com www.sisis.com A division of Howardson Ltd – a proudly British company Company reg No: 641526 – Vat No GB 345 9918 12...
