8. Connection and Setup

8.1 Inspection Checks

Please inspect the unit to ensure that there is no damage to the external casing which could cause a
malfunction of the device or cause a safety critical fault. Any damaged units should be returned to Parallax
Digital Technologies for inspection and testing.
Please ensure that the DC Cables are securely fastened in the terminal block, and that the terminal block is
correctly inserted into the switch power connector housing.

8.2 RJ45 Connections

Ensure all required RJ45 Ports are connected correctly using CAT5e cable or better to the client devices.
The Uplink Port (POE) should be connected to the host device or network, and the access ports TP1-2 are
available for other devices or connections. All cables should be solid copper and not CCA.

8.3 Power Up

The Unit will automatically power up as soon as a valid power source is detected, either from a PoE/PoE+
feed, or an external +12VDC power supply. The LEDs will flash to complete the initialization sequence.
Following this, the POE/12V LED will illuminate, indicating a valid +12VDC output at the terminal block for
external devices.

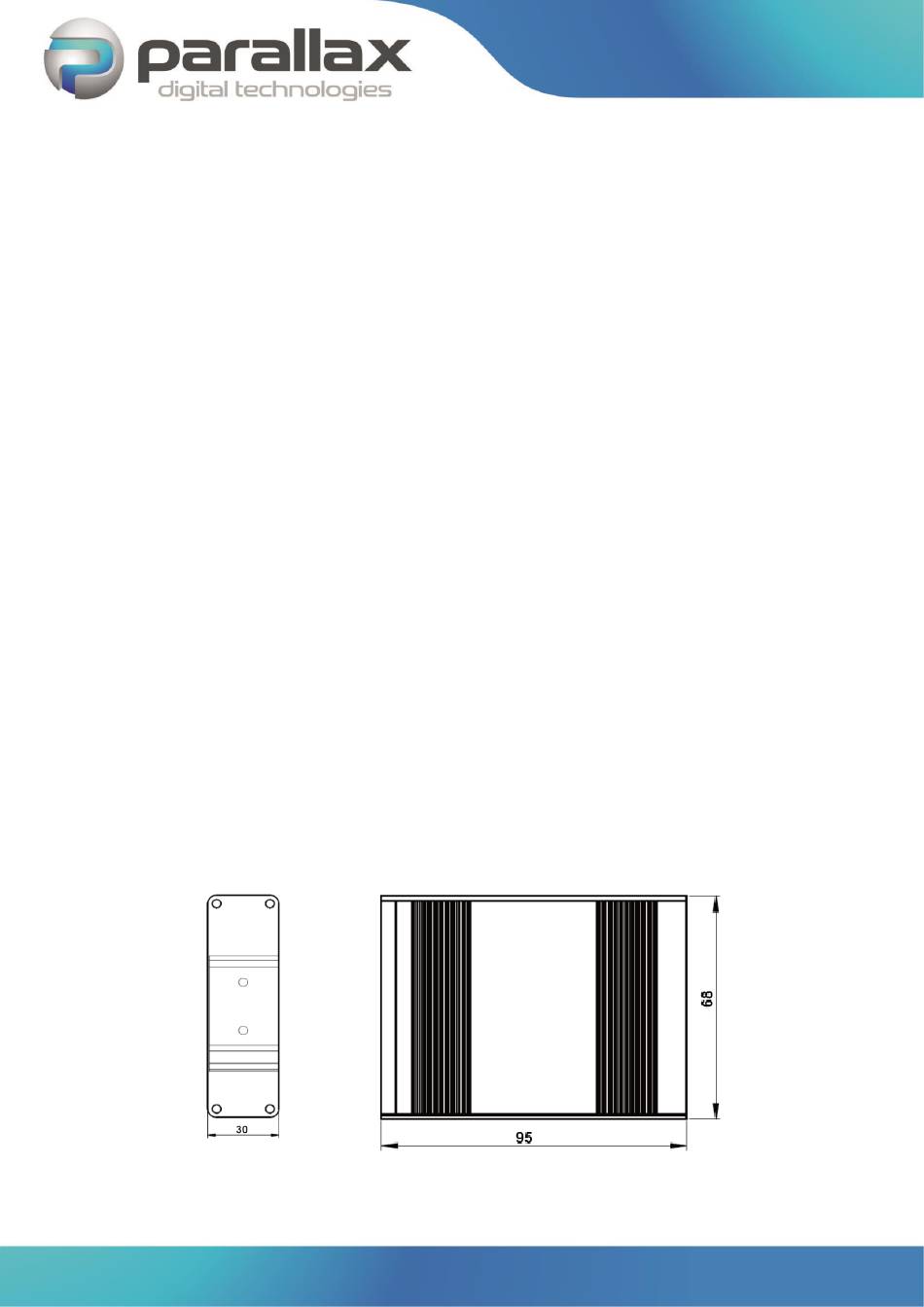

9. Physical Dimensions

All Dimensions are in mm
