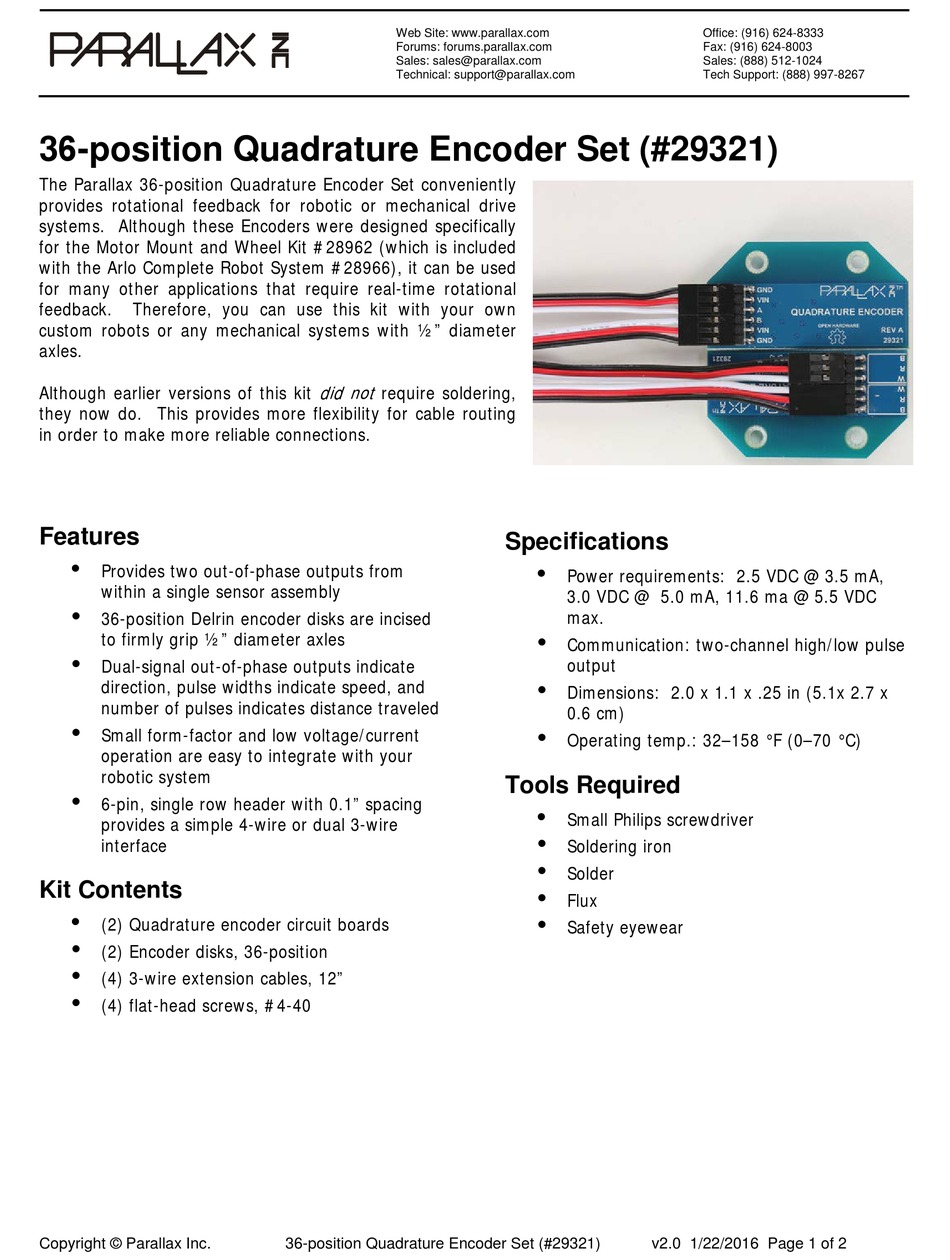

36-position Quadrature Encoder Set (#29321)
The Parallax 36-position Quadrature Encoder Set conveniently
provides rotational feedback for robotic or mechanical drive
systems. Although these Encoders were designed specifically
for the Motor Mount and Wheel Kit #28962 (which is included
with the Arlo Complete Robot System #28966), it can be used
for many other applications that require real-time rotational
feedback.
Therefore, you can use this kit with your own
custom robots or any mechanical systems with ½" diameter
axles.
Although earlier versions of this kit
they now do. This provides more flexibility for cable routing
in order to make more reliable connections.
Features
Provides two out-of-phase outputs from
within a single sensor assembly
36-position Delrin encoder disks are incised
to firmly grip ½" diameter axles
Dual-signal out-of-phase outputs indicate
direction, pulse widths indicate speed, and
number of pulses indicates distance traveled
Small form-factor and low voltage/current
operation are easy to integrate with your
robotic system
6-pin, single row header with 0.1" spacing
provides a simple 4-wire or dual 3-wire
interface
Kit Contents
(2) Quadrature encoder circuit boards
(2) Encoder disks, 36-position
(4) 3-wire extension cables, 12"
(4) flat-head screws, #4-40
Copyright © Parallax Inc.
Web Site: www.parallax.com
Forums: forums.parallax.com
Sales: sales@parallax.com
Technical: support@parallax.com
did not
require soldering,
36-position Quadrature Encoder Set (#29321)
Specifications
Power requirements: 2.5 VDC @ 3.5 mA,
3.0 VDC @ 5.0 mA, 11.6 ma @ 5.5 VDC
max.
Communication: two-channel high/low pulse
output
Dimensions: 2.0 x 1.1 x .25 in (5.1x 2.7 x
0.6 cm)
Operating temp.: 32–158 °F (0–70 °C)
Tools Required
Small Philips screwdriver
Soldering iron
Solder
Flux
Safety eyewear
v2.0 1/22/2016 Page 1 of 2
Office: (916) 624-8333
Fax: (916) 624-8003
Sales: (888) 512-1024
Tech Support: (888) 997-8267

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quadrature Encoder Set and is the answer not in the manual?

Questions and answers

Summary of Contents for Parallax Quadrature Encoder Set

  • Page 1 Technical: support@parallax.com Tech Support: (888) 997-8267 36-position Quadrature Encoder Set (#29321) The Parallax 36-position Quadrature Encoder Set conveniently provides rotational feedback for robotic or mechanical drive systems. Although these Encoders were designed specifically for the Motor Mount and Wheel Kit #28962 (which is included...
  • Page 2 You can solder each of the 6-pin right-angle headers in any orientation you choose, depending on your application. If you are using these Encoders with the Parallax Motor Mount and Wheel Kit (#28962), then insert the right-angle portion of the headers into the boards as shown below. This allows all four of the encoder cables to go in the same direction when mounted to the Motor Bearing Blocks.
