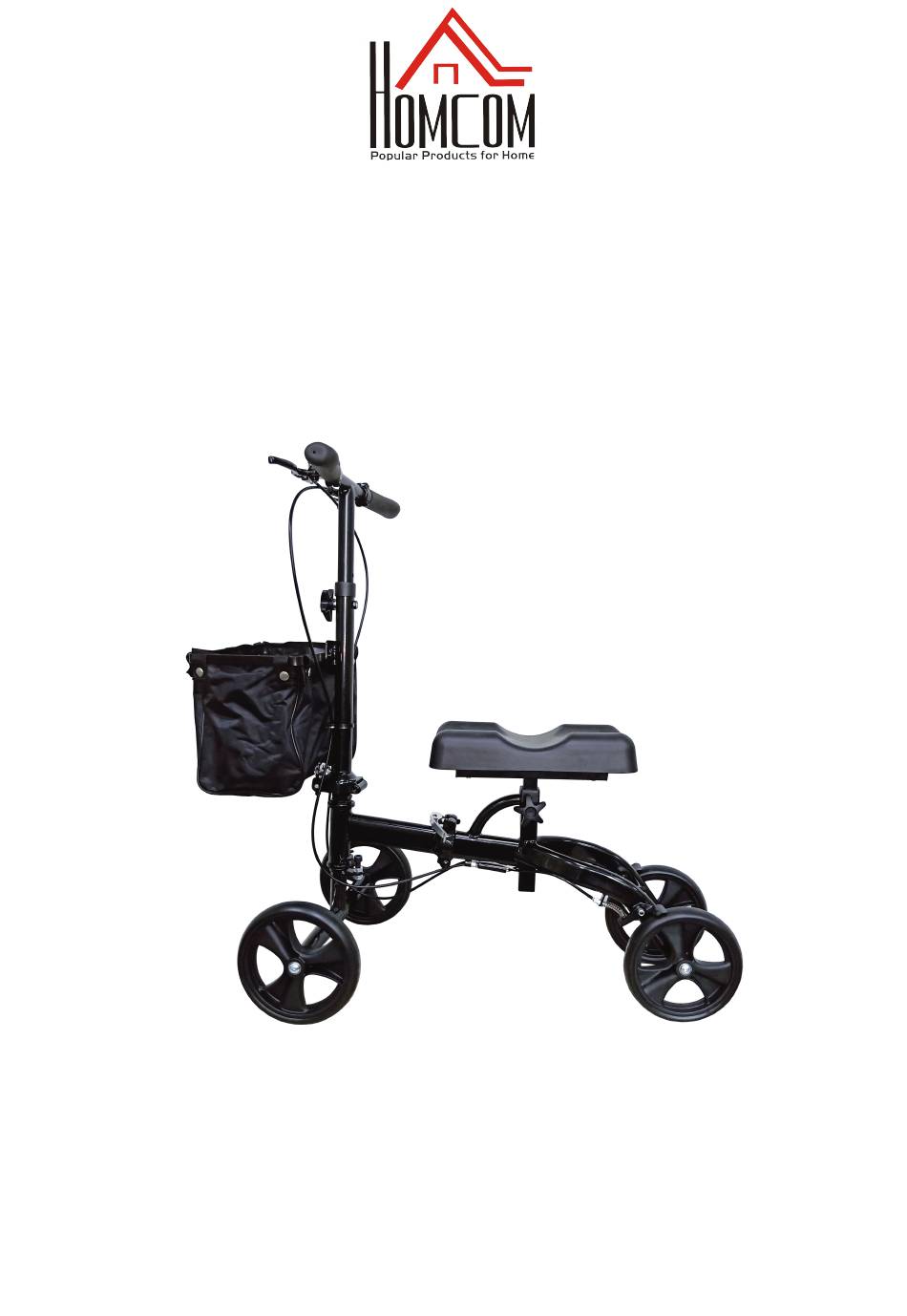

- Page 1 KNEE WALKER USER MANUAL 712-025...
-
Page 2: Warnings And Safety Instructions
- 1 - CAUTION! BEFORE using the Knee Walker, read this manual and save for future reference. DO NOT attempt to adjust or operate Knee Walker without carefully reading all instructions in this manual. Check ALL parts for shipping damage before use. In the case of shipping DO NOT install or use this equipment without first reading and understanding this instruction sheet. - Page 3 This will ensure the Knee Walker is properly balanced. Always keep both hands on the handle grips when in use. Only use accessories and spare parts authorized by Homcom. When turning the Knee Walker, exercise caution and only turn while...
-
Page 4: Care And Maintenance
- 3 - The Knee Walker is for individual use only. DO NOT attempt to push the Knee Walker while someone is seated on the seat. Doing so may result in serious injury and damage to the Knee Walker. The Knee Walker is not to be used as a transportation device. The Knee Walker is a walking aid only. - Page 5 - 4 - Knee Walker FEATURES Parking Brake Lock Hand Brake Lever Handlebars Steering Tiller Star Screw Basket Knee Platform Release Clamp Star Screw NOTE: The Knee Walker is a mobility device to be utilized during your recovery from foot or ankle surgery or injury. If you don't understand the manual, please contact your local healthcare provider for assistance.
- Page 6 - 5 - ASSEMBLY INSTRUCTIONS Step 1: To Assemble Knee Walker Frame - Unpack the Knee Walker from the carton. - Rotate the lever clockwise to tighten the quick release clamp and pull the quick release clamp down to point towards the frame tubing to lock it securely. Step 2: To Raise the Steering Tiller - Align and straighten the steering column frame to the erect position.
- Page 7 - 6 - - Move locking pin into the groove on steering column. Then, depress the locking handle to secure the steering column. Step 3: To Adjust Height of Handlebars Handlebars should be set at wrist level to keep your back straight. - Remove star screw.
- Page 8 - 7 - Step 4: To Adjust Height of Knee Platform: Stand on your good leg, hold on to a steady surface for support, and bend the leg that will be on the knee platform at a 90 degree angle. Adjust the knee platform to meet the height of your bent leg.
- Page 9 - 8 - Step 5: To Attach Basket...
- Page 10 - 9 - Step 6: To Adjust the Brakes - Use an Allen wrench to loosen the hand lever and reposition and re- tighten to a comfortable position. - The brake tightness can be adjusted with the nuts at either end of the brake cable.
