Creating a Project

Creating New Projects
with CX-Programmer
1,2,3...
3-2-2

Creating a New Function Block Definition

1,2,3...
Creating Function Block
Definitions
82
1. Start the CX-Programmer and select New from the File Menu.
2. In the Change PLC Window, select a Device Type that supports function
blocks. These are listed in the following table.
Device
CJ2H CPU68/67/66/65/64/68-EIP/67-EIP/66-EIP/65-EIP/64-EIP
CS1G-H CPU42H/43H/44H/45H
CS1H-H CPU63H/64H/65H/66H/67H
CJ1G-H CPU42H/43H/44H/45H
CJ1H-H CPU65H/66H/67H/64H-R/65H-R/66H-R/67H-R
CJ1M CPU11/12/13/21/22/23
CP1H CP1H-XA/X/Y
CP1L CP1L-M/L
NSJ G5D (Used for the NSJ5-TQ0@-G5D, NSJ5-SQ0@-G5D, NSJ8-
TV0@-G5D, NSJ10-TV0@-G5D, and NSJ12-TS0@-G5D)
M3D (Used for the NSJ5-TQ0@-M3D, NSJ5-SQ0@-M3D, and
NSJ8-TV0@-M3D)
FQM1-CM FQM1-CM002
FQM1-MMA FQM1-MMA22
FQM1-MMP FQM1-MMP22
3. Press the Settings Button and select the CPU Type. For details on other
settings, refer to the CX-Programmer Operation Manual (W446).

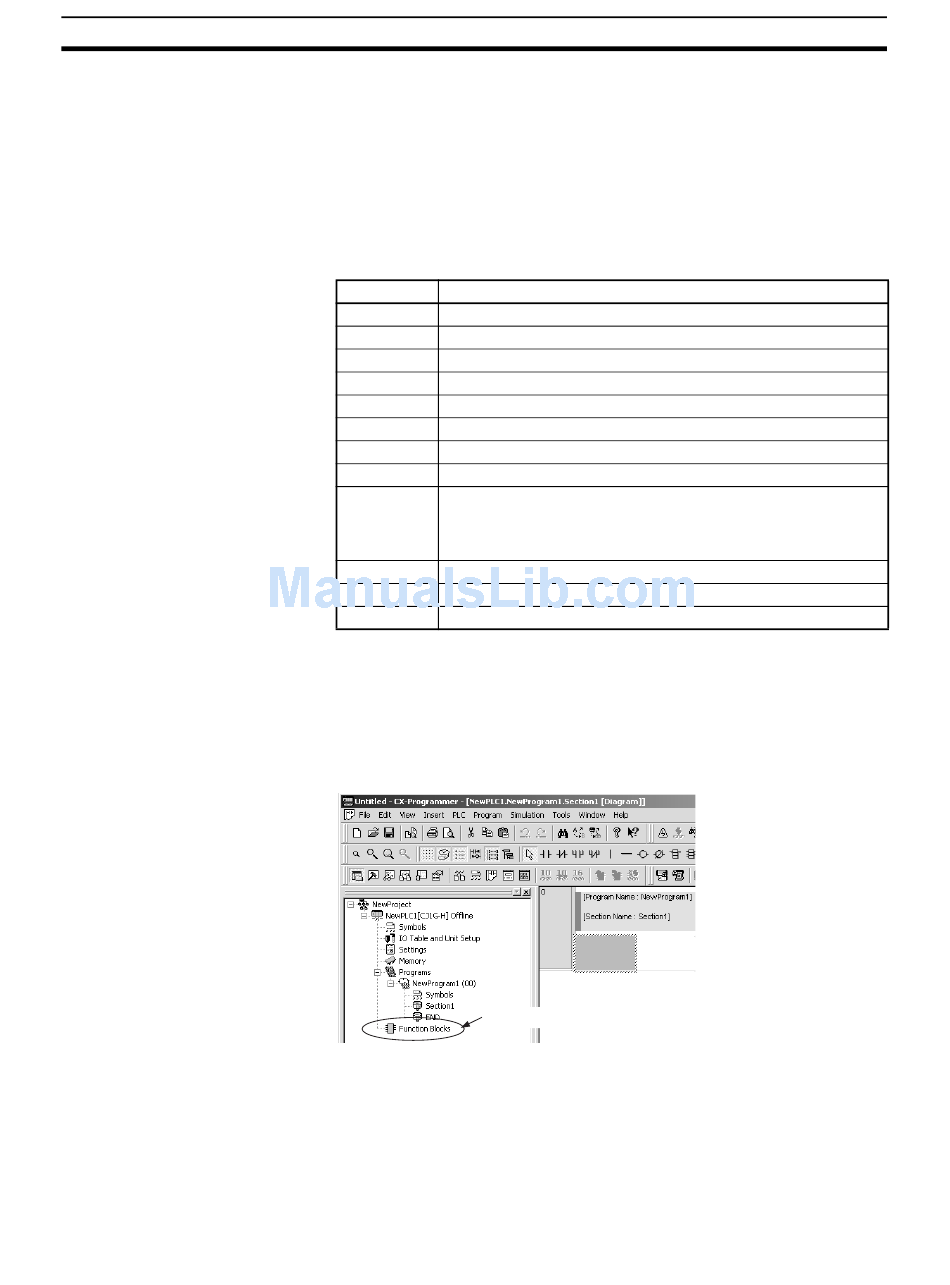

1. When a project is created, a Function Blocks icon will appear in the project
workspace as shown below.
2. Function block definitions are created by inserting function block defini-
tions after the Function Blocks icon.
Function blocks can be defined by the user using either ladder programming
or structured text.
CPU
Function Blocks will appear under the PLC.
