Charvet PRO 800 Installation Manual

Electric fryer with cold area
Hide thumbs Also See for PRO 800:
Table of Contents

Advertisement

Quick Links

Download this manual
Specification
E1FR2525
E1FR2525/MF
AUTO LIFT
ELECT.
REGULATION
CHARVET
F-38850 – CHARAVINES
Tel.: (33)-4-76-06-64-22
Fax: (33)-4-76-55-78-75
Email:
info@charvet.fr
Email:
sav@charvet-sa.fr
Electric Fryer with cold area
PRO 800
V02620
V02605
OPTIONS
V00986
V01180
PRO 900
V02621
V02611

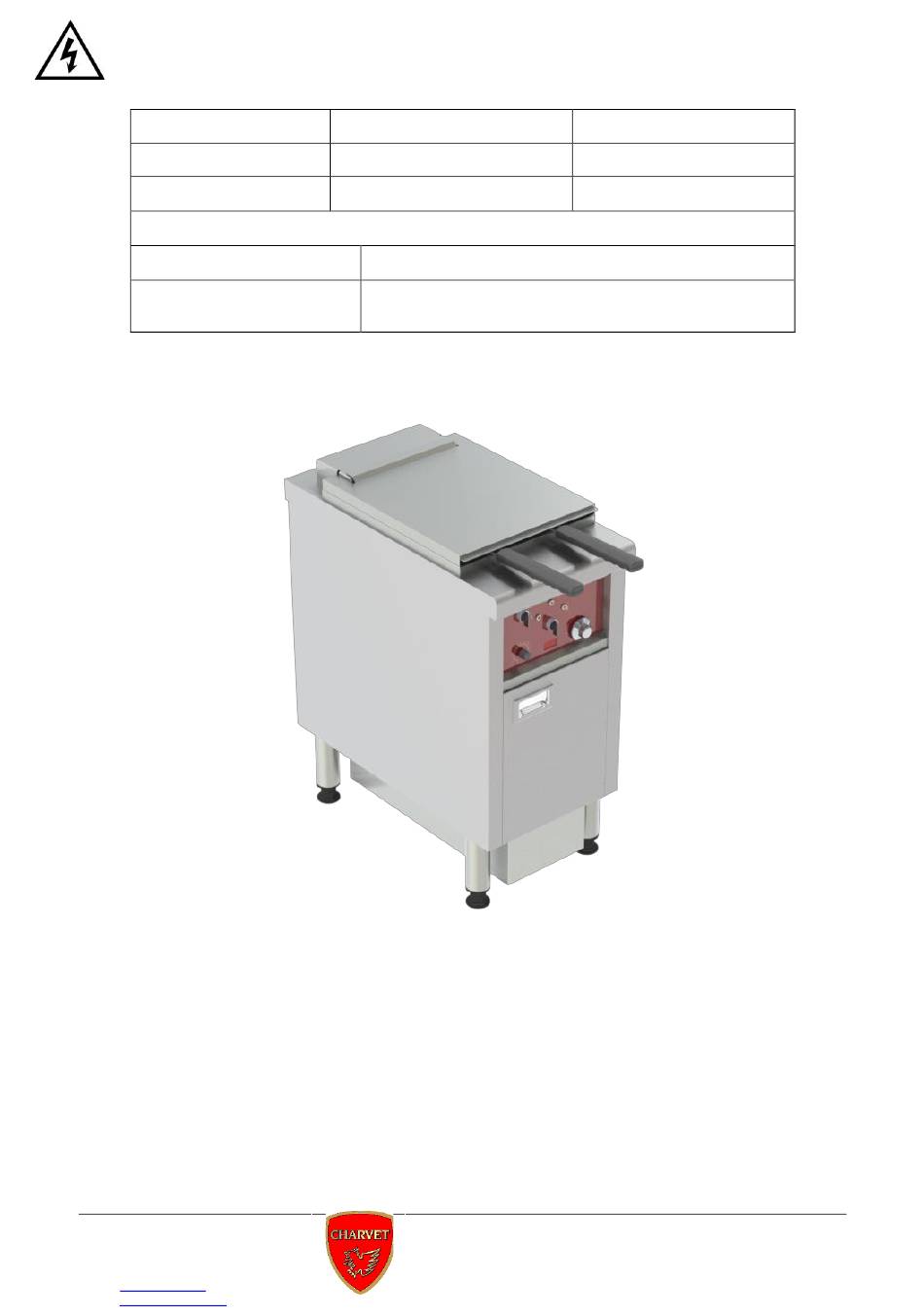

INSTALLATION MANUAL
MANUAL: 1/2Pro800-900 FR E1FR2525
ind.: C - Created on: 21/03/2006
Updated on: 07/06/2011
Page 1
