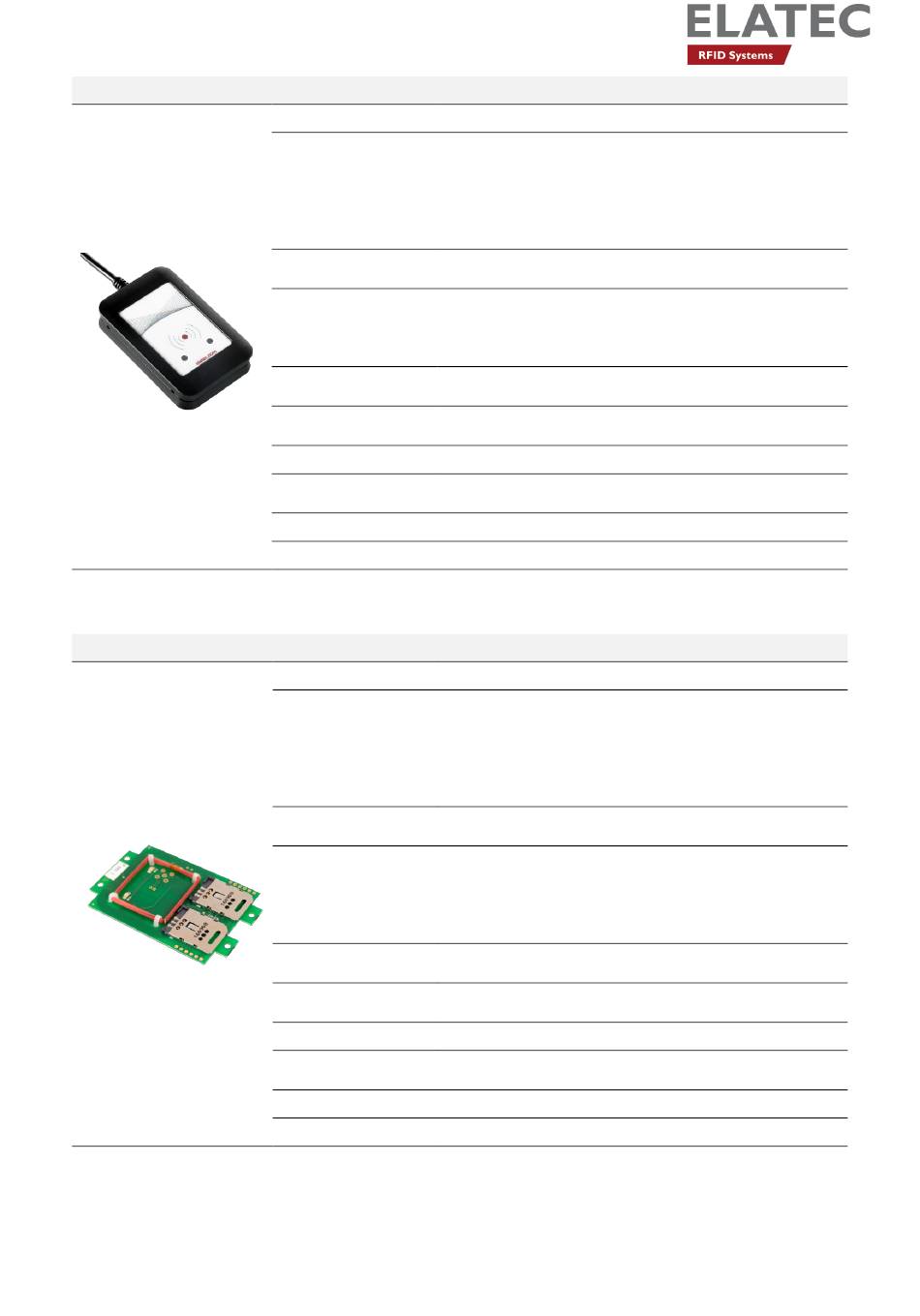

TWN4 MultiTech LEGIC (registered under the model name TWN4 LEGIC NFC)
3.2.2 RFID MODULES
TWN4 MultiTech LEGIC M
© 2024 – ELATEC GmbH – TWN4 MultiTech family – user manual – DocRev01 – EN – 05/2024
Frequencies 125 kHz (LF) / 13.56 MHz (HF)
Integrated RFID LF antenna
Dimensions: 29.00 x 32.00 mm / 1.14 x 1.26 inch
Number of turns: 164
Antennas
Integrated RFID HF antenna
Dimensions: 44.00 x 46.00 mm / 1.73 x 1.81 inch
Number of turns: 3
Dimensions Approx.
(L x W x H) 88.00 x 56.00 x 18.50 mm / 3.46 x 2.20 x 0.73 inch
USB: 4.3 V - 5.5 V
RS-232: requires 5 V external power supply
Power
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Current
RF field on: 140 mA typically
consumption
Temperature Operating: -25 °C up to +70 °C / -13 °F up to +158 °F
ranges Storage: -40 °C up to +75 °C / -40 °F up to +167 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours
Weight Approx. 120 g / 4.23 oz (with cable)
Frequencies 125 kHz (LF) / 13.56 MHz (HF)
Integrated RFID LF antenna
Dimensions: 29.00 x 32.00 mm / 1.14 x 1.26 inch
Number of turns: 164
Antennas
Integrated RFID HF antenna
Dimensions: 44.00 x 46.00 mm / 1.73 x 1.81 inch
Number of turns: 3
Dimensions Approx.
(L x W x H) 76.00 x 49.00 x 14.00 mm / 2.99 x 1.93 x 0.55 inch
USB: 4.3 V - 5.5 V
Connector CNA: 3.3 V ± 5%
Power RS-232: requires 5 V external power supply
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Current
RF field on: 140 mA typically
consumption
Temperature Operating: -25 °C up to +80 °C / -13 °F up to +176 °F
ranges Storage: -40 °C up to +85 °C / -40 °F up to +185 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours
Weight Approx. 10 g / 0.35 oz (without cable)
