Datalogic MAGELLAN 9900i TDR Installation Manual

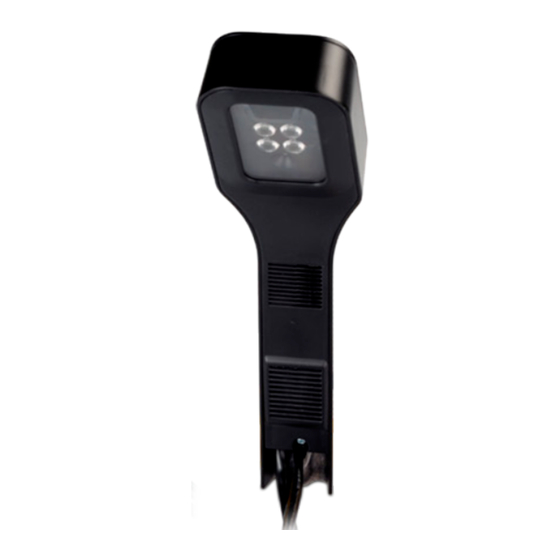

The Magellan 9900i TDR (Top Down Reader) option expands the
scan volume by up to 20% and adds a sixth sided view of items
crossing the platter. The TDR comes in 3 heights and offers an
optional integrated customer-facing reader, enabling customers to
scan mobile devices and coupons independent from a cashier in
assisted lanes improving efficiency.
Description Order no.
Top Down Reader (TDR) 31.5 cm / 12.4 in 90ACC0419
Top Down Reader (TDR) 22.8 cm / 9.0 in 90ACC0418
Top Down Reader (TDR) 17.8 cm / 7.0 in 90ACC0417
Top Down Reader (TDR) 31.5 cm / 12.4 in with CFR* 90ACC0422
Top Down Reader (TDR) 22.8 cm / 9.0 in with CFR* 90ACC0421
Top Down Reader (TDR) 17.8 cm / 7.0 in with CFR* 90ACC0420
*CFR = Customer Facing Reader

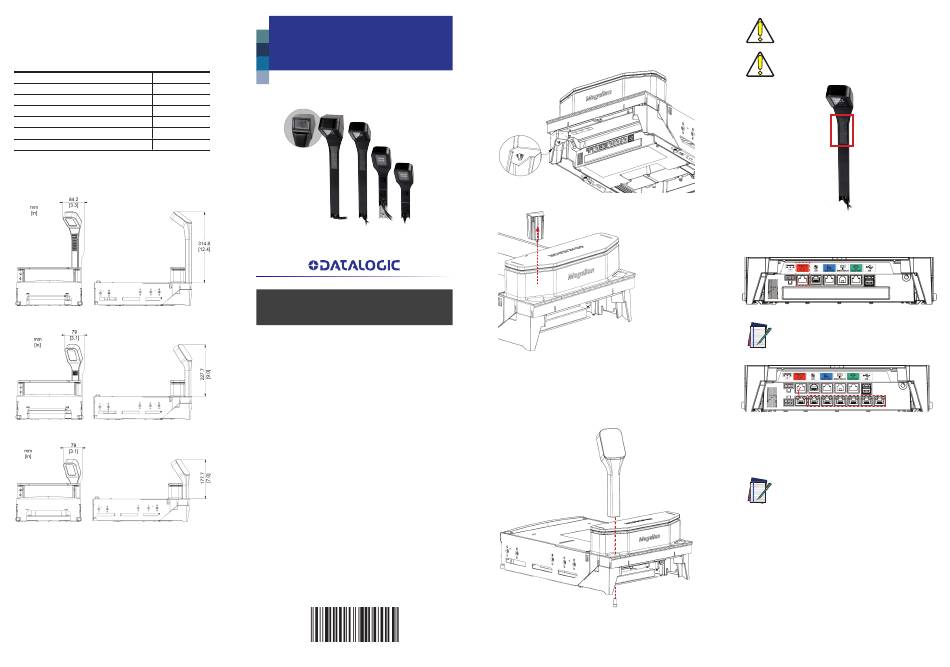

INSTALLATION
TDR 31.5 cm / 12.4 in Dimensions
TDR 22.8 cm / 9.0 in Dimensions
TDR 17.8 cm / 7.0 in Dimensions
MAGELLAN™ 9900i TDR
INSTALLATION GUIDE
Top Down Reader
©2023-2024 Datalogic S.p.A. and/or its affiliates
• All rights reserved • Without limiting the rights under copyright,
no part of this documentation may be reproduced, stored in or
introduced into a retrieval system, or transmitted in any form or
by any means, or for any purpose, without the express written
permission of Datalogic S.p.A. and/or its affiliates • Datalogic
and the Datalogic logo are registered trademarks of Datalogic
S.p.A. in many countries, including the U.S. and the E.U.
See the Safety & Regulatory Addendum included
with your product for additional regulatory, safety
and legal information.
www.datalogic.com
820128403 (Rev. D) May 2024
To install the TDR, proceed as follows:
1. The TDR should be installed just behind the scanner's bon-
net on the takeaway side, i.e. if products are scanned left to
right, then the TDR should be placed on the right side, and vice
versa. From the bottom of the scanner, push the pin upwards
to disengage the insert. A tool may be needed.
2. Route the TDR cables down through the base of the scanner,
gently pull them all the way through on the bulkhead side of the
base and seat the TDR in its corner cavity. Make sure they are
not pinched or caught beneath the scanner base.
3. Use a 5mm ball end hex driver to secure the TDR with the bolt
provided for this purpose. Suggested torque value: 6.8 Nm (60
in-lb).
CAUTION: Plug in the TDR cables before connecting
power to the scanner.
CAUTION: Do not cover or obstruct the TDR fan intake
and exhaust vent ports.
Do not cover or obstruct
4. Verify that the cables are not pinched or caught between
assemblies, then connect the Ethernet cable to the TDR/CCM
port on the back of the scanner.
NOTE: If your scanner is equipped with an Ethernet
switch, use the jumper cable provided in the
accessory package to enable connection to the
switch ports, as illustrated below.
The jumper cable enables connection to the switch ports highli-
ghted in the dashed rectangle.
5. Based on your application, if the video feed is set up to be
retrieved over USB, connect the USB cable to the device that
will interface with the TDR. This is typically a PC or POS.
NOTE: Upon connection to the scanner or scanner
scale, the TDR (and CFR, if any) complies with the
same safety, EMC, and environmental requirements
as the scanner or scanner scale.
