Delta B78910-3232-WH Manual
Delta B78910-3232-WH Manual

Delta B78910-3232-WH Manual

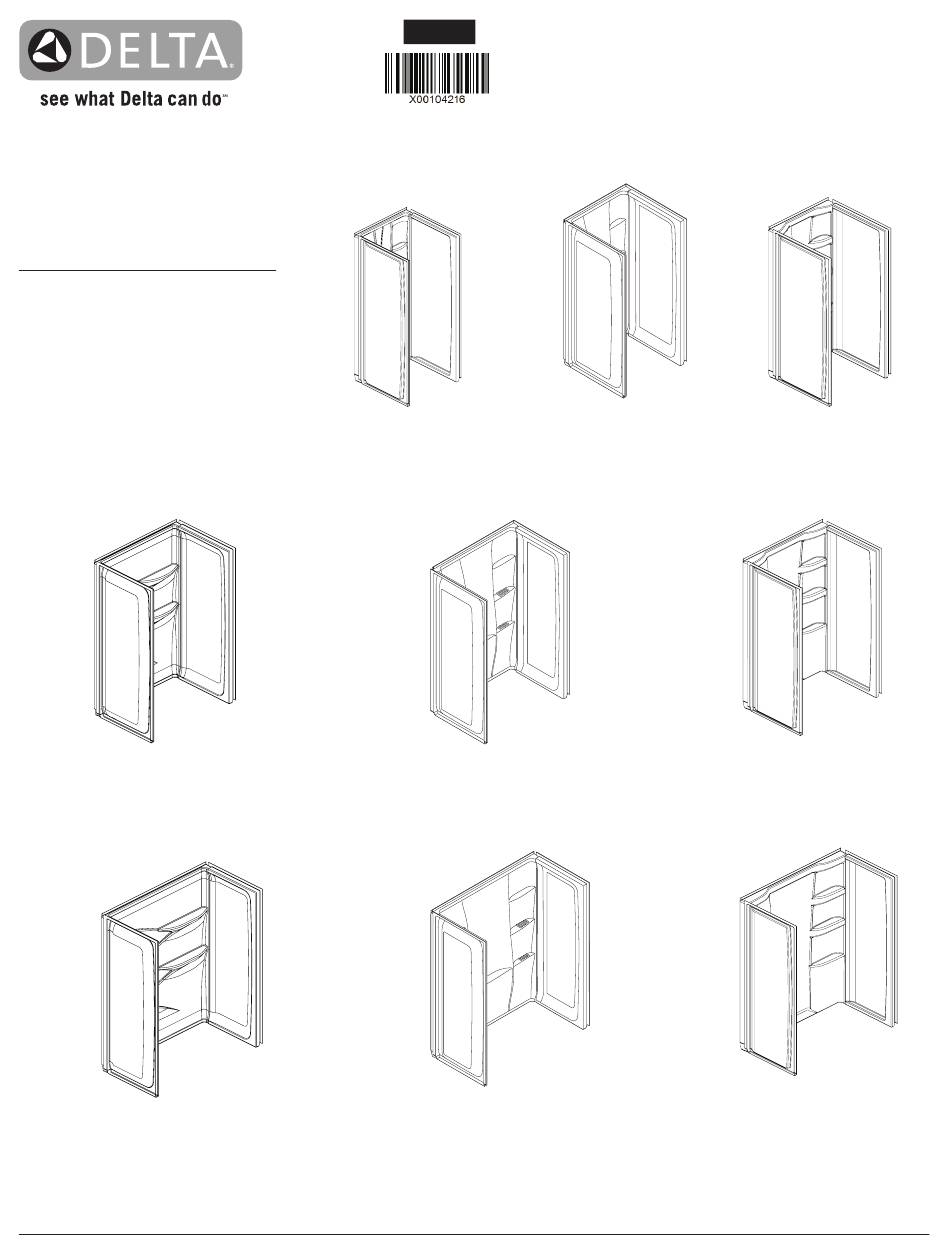

Direct-to-stud wall set

Advertisement

Quick Links

Model / Modelo / Modéle
Write purchased model number here. Retain
these instructions for future use.
Escriba aquí el número del modelo comprado.
Conserve estas instrucciones para usarlas en el futuro.
Inscrivez le numéro de modèle ici. Conservez
ces instructions pour consultation.
48" x 34"
B67311-4834-WH
60" x 32"
B67311-6032-WH
www.deltafaucet.com
DIRECT-TO-STUD WALL SET
104216
PIEZAS PARA LA INSTALACIÓN DIRECTA AL
MONTANTE
MUR DE DOUCHE À FIXER AUX MONTANTS
32" x 32"
B78910-3232-WH
48" x 34"
40084
60" x 32"
40104
1
36" x 36"
40064
48" x 34"
B67513-4834-WH
60" x 30"
B67513-6030-WH
60" x 32"
B67513-6032-WH
36" x 36"
B67513-3636-WH
09/20/2023
104216 Rev. B

Advertisement

loading
Need help?

Need help?

Do you have a question about the B78910-3232-WH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Delta B78910-3232-WH

  • Page 1 Conserve estas instrucciones para usarlas en el futuro. Inscrivez le numéro de modèle ici. Conservez ces instructions pour consultation. 32” x 32” 36” x 36” 36” x 36” B78910-3232-WH 40064 B67513-3636-WH 48” x 34” 48” x 34” 48” x 34”...
  • Page 2 REQUIREMENTS FOR SUCCESSFUL INSTALLATION REQUISITOS PARA UNA INSTALACIÓN EXITOSA EXIGENCES À RESPECTER POUR RÉUSSIR L’INSTALLATION KNOWLEDGE BASE: Framing Plumbing • Confirm that your model will fit in intended location and plumbing fixtures are located where required before beginning installation. • Walls and sub-floor must be solid, plumb, and square. •...
  • Page 3: Tools And Materials Required

    TOOLS AND MATERIALS REQUIRED • 2” x 6” and 2’ x 4” lumber for additional wall studs • Lumber for bracing • Rags or padding to protect product during bracing NOTE: It is recommended to install insulation. HERRAMIENTAS Y MATERIALES NECESARIOS •...
  • Page 4 • Fixez les entretoises de 2 x 4 aux montants avec des vis 2 1/2 po. Assurez-vous que le devant des entretoises horizontales de 2 x 4 se trouve à égalité avec la surface des montants. Front View/Vista delantera/Vue de face B78910-3232-WH 16” 16” (40.6 cm) (40.6 cm)
  • Page 5 B67513-3636-WH 40064 11 1/2" 12 1/4" 12 1/4" 12 1/4" 11 1/2" 12 1/4" (31.1 cm) (29.2 cm) (31.1 cm) (29.2 cm) (31.1 cm) (31.1 cm) 12" 10 5/16" (26.2 cm) (30. cm) Horizontal 2" x 4" Horizontal 2" x 4" 12"...
  • Page 6 B67513-6030-WH 14 5/8” 15 3/8” 15 3/8" 14 5/8" (37.2 cm) (39 cm) (39 cm) " Horizontal 2" x 4" 12" (30. 2 x 4 x 70-3/4” ” (5 x x 179.7 cm) 1 13/16” (4.6 cm) 60" (152.4 cm) 40104 B67311-6032-WH 15 3/8"...
  • Page 7 40064, 40084, 40104, B67311-6032-WH, B67311-4834-WH 2 3/16” (5.56 cm) B67513-6032-WH, B67513-6030-WH, B67311-4834-WH, B67513-3636-WH B78910-3232-WH 1 13/16” (4.6 cm) 70 3/4” (179.7 cm) NOTE: 1 1/2" (3.8 cm) It is recommended to install insulation on exterior walls. It is recommended that two people install this product.
  • Page 8 Dry Fit Panel (opposite of drain) Dry Fit Panels • Drill 3/16” holes at all stud locations on top flanges (1). • Check panels for gaps and alignment. • Drill 3/16” holes along side flanges (2) at locations equal • Check that vertical side panel flanges (1) are straight and distance apart.
  • Page 9 X X X Back side of panel. Parte posterior del panel Face arrière du panneau. Y Y Y Prepare for Plumbing Fixtures Apply Fire Retardant Pad • Measure and mark location for plumbing fixtures on the front • Remove backing from self-adhesive pad. of the side panel.
  • Page 10 Preparing for Back Panel Secure Back Panel • Press back panel in place. Apply adhesive to studs up to the pencil line (1). • Secure top flanges (1) to studs with 1-1/4” panhead or roundhead screws. Apply sealant along back of base. NOTICE Do not use drywall screws to secure flanges to wall studs.
  • Page 11 Preparing for Side Panels Secure Side Panels • Slide the side panel into gap between wall and back panel, pressing Apply sealant along side of base and back panel. firmly into corner and against studs. • Push in and down until panel tops are even and curved area on Apply adhesive to studs.
  • Page 12 Brace Wall Panels Apply Sealant • Protect surface of wall (1) where it will contact braces. • Apply sealant to all seams. • Install temporary braces (2) to hold side panels tight against studs while adhesive dries. • Install plumbing fixtures and fittings per manufacturer’s instructions. •...
  • Page 13 CARE AND CLEANING We recommend that you clean your acrylic bathing product with mild detergents. Use a terry cloth towel, soft cloth, or sponge. Avoid using abrasive scrubbing pads, steel wool, or sponges. After cleaning, rinse thoroughly with water. NOTICE When using drain cleaner or clog remover, rinse thoroughly with water.
  • Page 14 These are your exclusive remedies. What Is Not Covered: Any labor charges incurred by the purchaser to repair, replace, install or remove this product are not covered by this warranty. Delta Faucet Company shall not be liable for any damage to the product resulting from reasonable wear and tear, outdoor use, misuse (including use of the product for an unintended application), abuse, neglect or improper or incorrectly performed installation, maintenance or repair, including failure to follow the applicable care and cleaning instructions.
  • Page 15 Lo que haremos: Delta Faucet Company reparará o reemplazará, sin cargo, durante el período de garantía aplicable (como se describe anteriormente), cualquier pieza que resulte defectuosa en material y/o mano de obra bajo instalación, uso y servicio normales. Si la reparación o el reemplazo no es práctico, Delta Faucet Company puede optar por reembolsar el precio de compra (es posible que se requiera la devolución del producto, a opción de Delta Faucet Company).
  • Page 16 Ce que nous ferons: Delta Faucet Company réparera ou remplacera gratuitement, pendant la période de garantie applicable (décrite ci-dessus), toute pièce ou tout composant qui présentera une défectuosité de matériau et/ou un vice de fabrication pour autant que le produit ait été installé, utilisé et entretenu normalement. S’il n’est pas utile de réparer ou de remplacer le produit, Delta Faucet Company pourra rembourser le prix d’achat (et exiger que le produit soit retourné).
