Related Manuals for DeWalt DCF620N-XJ
Summary of Contents for DeWalt DCF620N-XJ

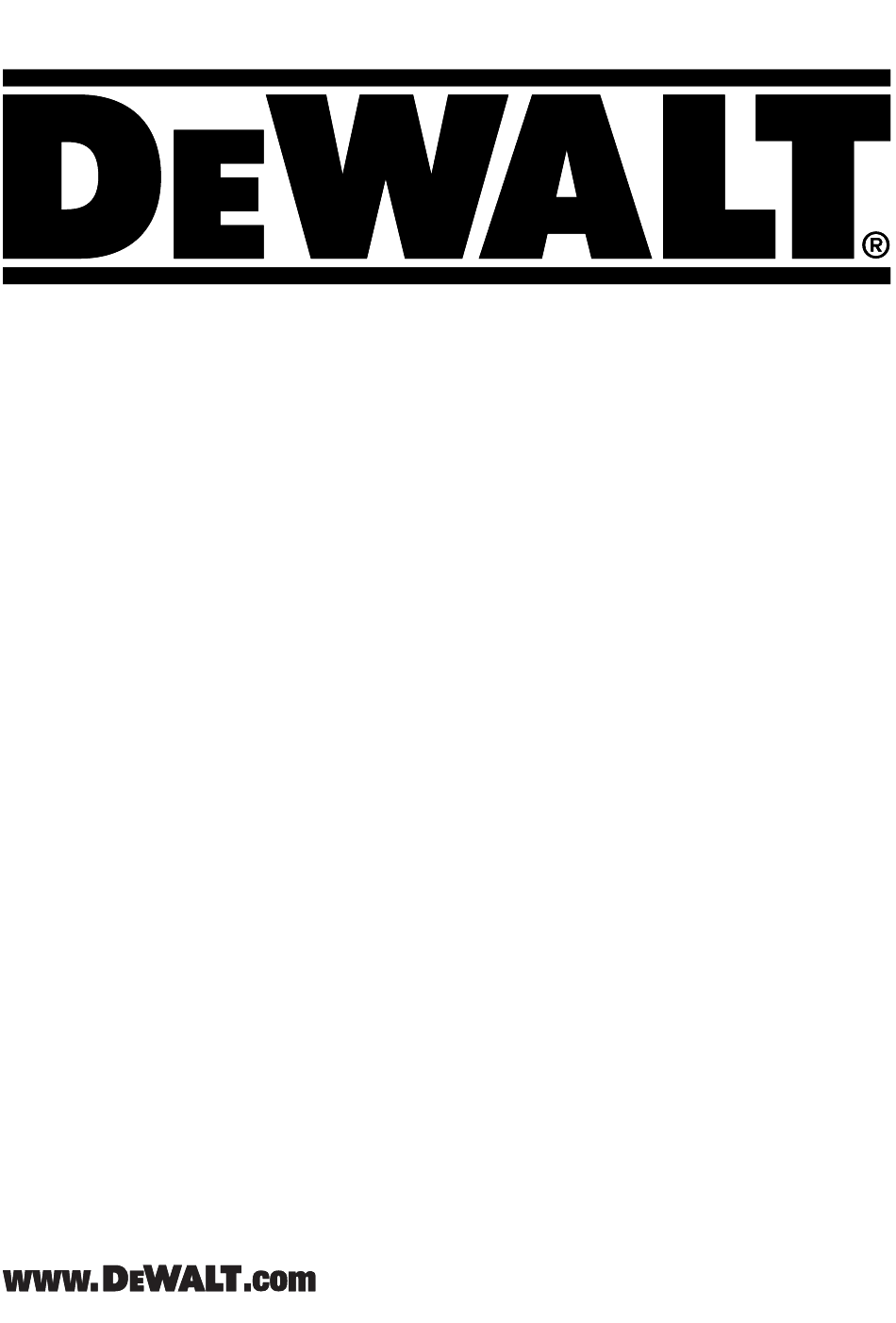

- Page 1 DCF6202...
- Page 2 English (original instructions) Copyright D WALT...
- Page 3 Fig. A XXXX XX XX Fig. B Fig. C...
- Page 4 Fig. D Fig. E Fig. F...
-
Page 5: Definitions: Safety Guidelines
English COLLATED MAGAZINE ATTACHMENT DCF6202 Congratulations! • Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased You have chosen a D WALT tool. Years of experience, thorough risk of electric shock if your body is earthed or grounded. product development and innovation make D WALT one of the •... -
Page 6: Description (Fig. A)
English Markings on Tool Fitting the Collated Screwdriver Bit (Fig. A, B) NOTICE: For proper operation only use a D The following pictograms are shown on the tool: WALT collated screwdriver bit. 1. Remove the nose cone from the screwdriver. Read instruction manual before use. 2. -
Page 7: Maintenance
English Inserting Collated Screw Strips (Fig. D) MAINTENANCE NOTICE: Use only screw strips that are suitable to this Your power tool has been designed to operate over a long magazine. Only insert screw strips when the screwdriver period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and power is off and the trigger is locked. -
Page 8: Optional Accessories
English To install Advancing Mechanism 1. With the collated magazine attachment removed from 12 screwdriver, align the tabs on the shoe with the 13 slots in the collated housing. 14 2. Push in slightly, then align the spring with the pocket in the advancing mechanism. - Page 12 Belgique et WALT - Belgium BVBA Tel: NL 32 15 47 37 63 www.dewalt.be Luxembourg België en Luxemburg Egide Walschaertsstraat 16 Tel: FR 32 15 47 37 64 enduser.BE@SBDinc.com 2800 Mechelen Fax: 32 15 47 37 99 Danmark WALT (Stanley Black&Decker AS)
