1.5.2 RGB LEDs

Alvik has two fully programmable RGB LEDs named DL1 and DL2 at its top.
Description
RGB LED Left
RGB LED Right
1.6 Connectors & Communication Protocols
The robot is compatible with the following communication protocols:
Description
I2C
PWM Servomotor Control (x2)
The connectors are placed in the back of the robot, the pinout is shown in the following image:
6 / 17
Information
DL1
DL2
Information
Groove and Qwiic connector
Servo Motor connector

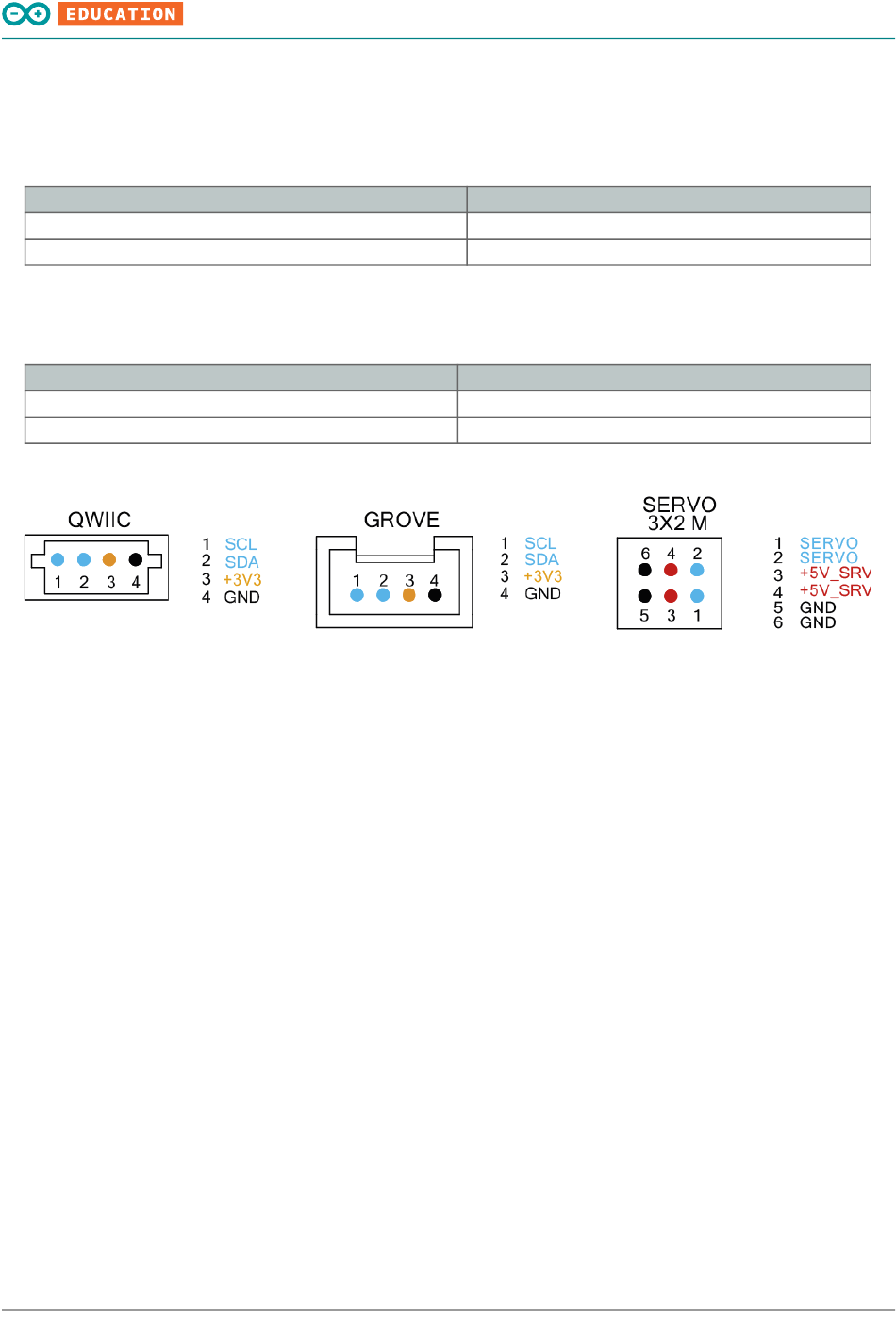

Connectors pinout
Arduino® Alvik
Arduino® Alvik
