Arduino® Alvik

2.3.1 Robot's Battery

Alvik is powered by a single 18650 Li-Ion Battery protected by a battery cover at the bottom of the product which
can be opened with a Phillips screwdriver. The battery is designed to be easily replaceable at any time so the robot
can be used without interruptions in educational environments.
The main board of the robot incorporates the MAX17332X22 to manage the charge and use of the battery including
an overvoltage and reverse-voltage protection LTC4360CSC8-2 chip.

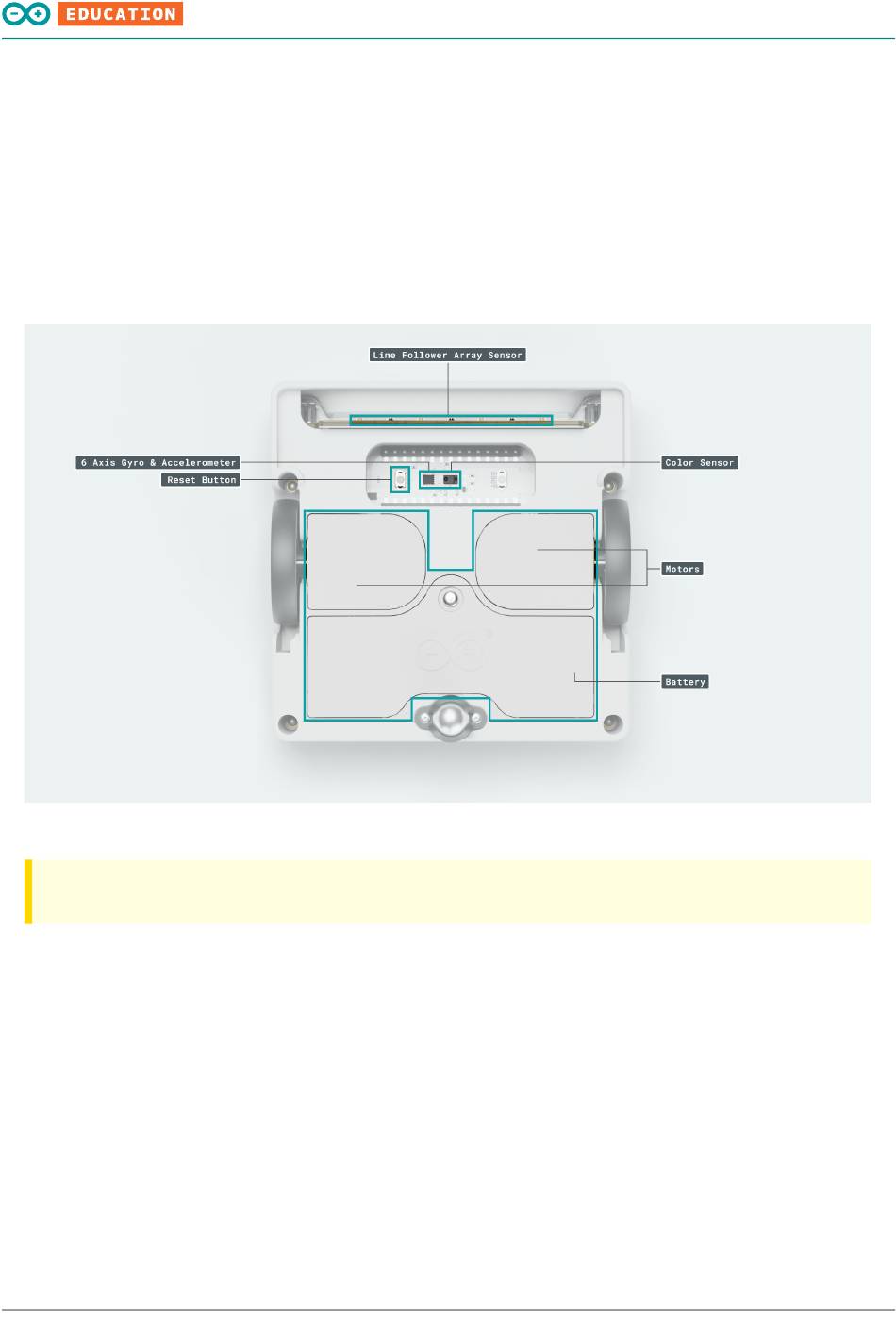

Alvik's Battery Compartment
Note: Do not replace the battery without adult supervision.
