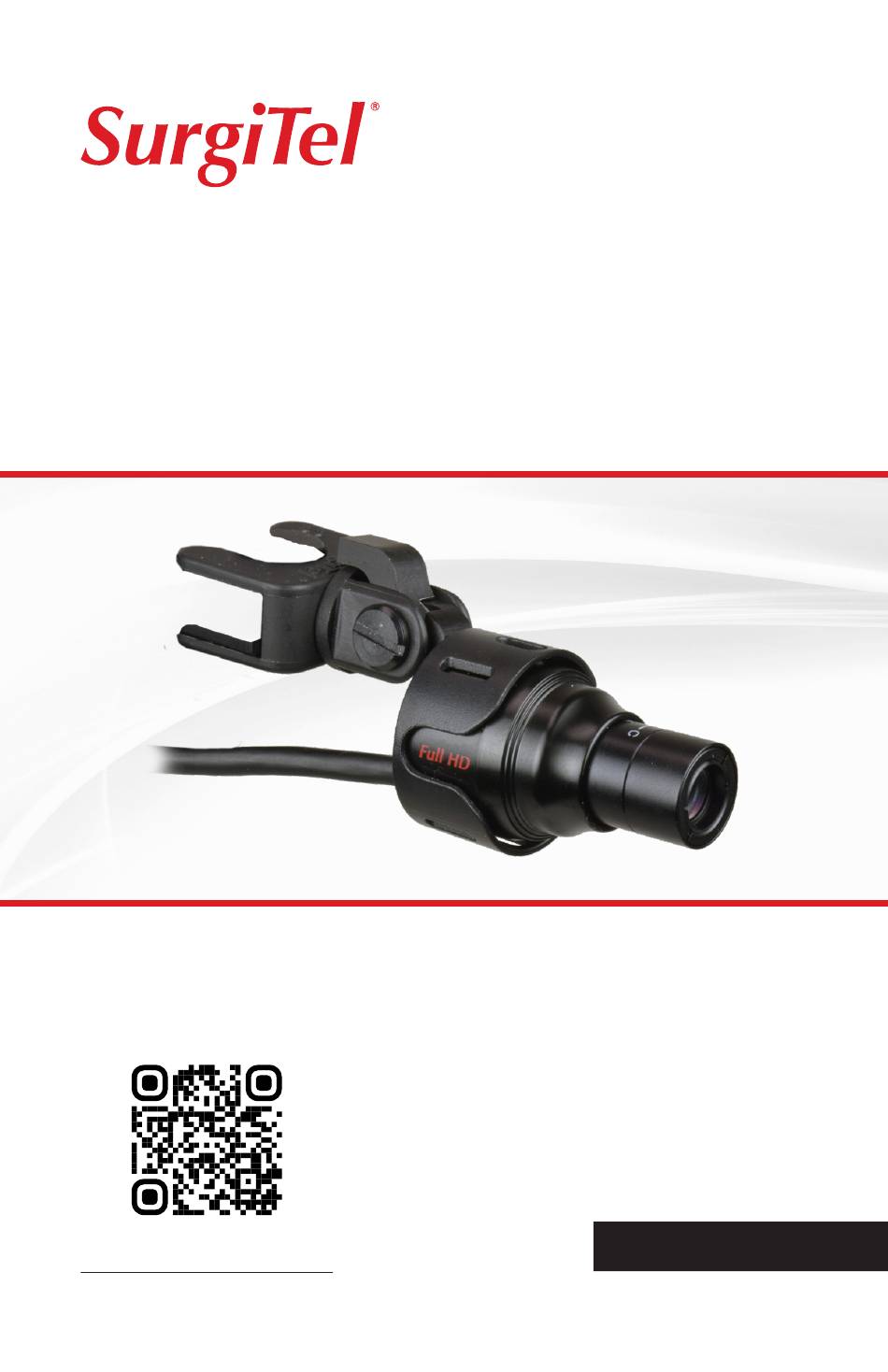

- Page 1 SurgiCam HD Instructions for Use and Care Quick Start / Software English www.surgitel.com/surgicam-hd...
- Page 2 SurgiTel®, A Division of General Scientific Corp. SurgiCam® HD Digital Camera System Two Year Limited Warranty - United States and Canada Warranty applies exclusively to purchases made within the United States and Canada. For international orders, please consult your local distributor regarding warranty information.
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION ................1 1.1 The SurgiCam® HD Digital Camera System ......1 1.2 Sterilization ..................1 1.3 Interference from Other Equipment .......... 2 1.4 Lens Options .................. 2 1.5 Connectivity and Interoperability ..........2 1.6 For your Protection ............... 2 2. -
Page 4: Introduction
1. Introduction Thank you for choosing the SurgiCam® HD Digital Camera System. Designed from the ground up with ease-of-use in mind, this digital video camera will allow you to simply and easily record procedures from your perspective. We suggest that you take a few minutes to consult this manual before you begin to use your SurgiCam®... -
Page 5: Interference From Other Equipment
1.3. Interference from Other Equipment The SurgiCam® HD Digital Camera System was designed to minimize electrical interference problems that may result from using high power electrical equipment in the vicinity of the camera. An auto-reset feature has been developed and implemented into the camera that will detect that condition and automatically reset the camera to its initial state. -
Page 6: Hardware Setup
2. Hardware Setup The SurgiCam® HD Digital Camera System is designed so that it requires very little effort to set up. The digital camera is delivered pre-attached to the accessories you have ordered. Some accessories may need to be setup on per-need basis. 2.1. - Page 7 For the maximum depth-of-focus and the highest image quality you need to adjust the lens iris (aperture) to the optimum/smallest size possible. 1. Hold the camera by aiming it at a target set to your desired working distance. (Figure 2) 2.
-
Page 8: Lens Replacement
SurgiCam, you may contact SurgiTel for a professional cleaning and refurbishment. 1. The set screw on the bottom of the SurgiCam HD holds the lens. The set screw can be tightened or loosened with a (.035”) hex key. This tool is provided in your accessory kit. -
Page 9: Software Setup
Verify that you are logged on to your Windows workstation as a user with Administrative privileges; otherwise the software may not work as expected. Download software at www.surgitel.com/surgicam-hd and manually launch the SurgiCam-Setup program. Follow the on-screen instructions. Once the software installation is complete you are ready to connect the SurgiCam®... -
Page 10: Operating The Surgicam® Hd Digital Camera System
4.1.3. Video Control Panel Controls: • Resolution: Changes resolution of next recorded video • Rotation: Changes rotation of next recorded video • Snapshot: Takes a snapshot (F7) • Record: Record (F5), Stop Recording (F4), [Not Displayed on bar, keyboard shortcut only – Pause Recording (F3)] •... -
Page 11: Recording Video Footage
4.2.2. Recording Video Footage Recording digital videos makes high demand of your computer’s resources. For this reason, it is critical that you close all other applications before recording with the SurgiCam® HD software. It is important to disable any screen savers or energy saving feature that may be enabled on your computer. -
Page 12: Technical Support
1. Consult this User’s Guide for information related to the situation. 2. Check the Support section of our web site at www.surgitel.com/help. 3. Download the newest version of the SurgiCam HD software at www.surgitel.com/surgicam-hd. 4. Contact us via email at: support@surgitel.com. Please include a detailed description of the situation.
