SurgiTel Surgical Mini LED Manual

PACKAGE CONTENTS

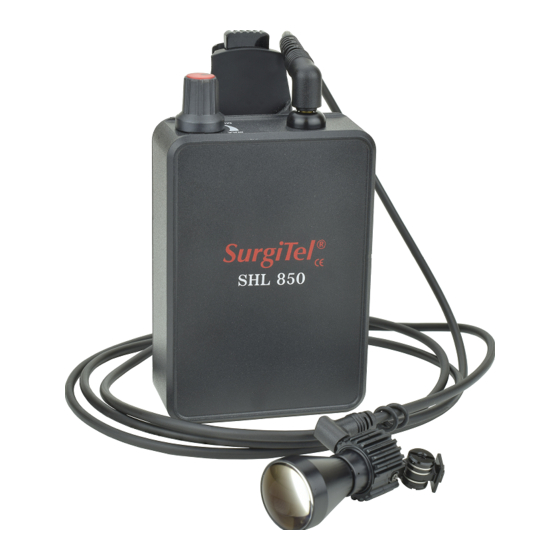

• Surgical Mini LED Light and Cable
• SHL850 Battery Control Pack
• Universal AC Charger
• Accessory Kit

TECHNICAL DATA

Brightness About 100,000 lux (average)
Spot Size 4.0" Diameter (10cm) at 20" (50cm)
LED Beam Color Cool Light
Color Temperature 5,700K
LED Life
Up to 10,000 hours or over 5 years
(Estimated on intensity used)
Lens Diameter 19mm
Weight (LED light unit) 14.6g
Rechargeable Lithium Ion Battery,
Battery
7.4V 4,888 mAh
Battery Life Up to 12 hours
Input: 100-240V, 50-60Hz, 0.35A
AC Charger
Output: +8.4V, 1.5A

GENERAL WARNINGS

• The user of this product should be thoroughly familiar with the use and
care of this product.
• The user should carefully study the manual before making any attempt to
use this product clinically.
• Before each procedure carefully inspect the LED system to ensure proper
Maintenance.
• Use care not to point the light directly at the eyes during operation;
patient use of safety glasses is recommended.
FIRE HAZARD: DO NOT PLACE THE LED LIGHT UNIT ON ANY FLAMMABLE
OBJECT WHILE IT IS OPERATING.
WARNING:
• The LED light unit will get hot when left on. Handle with care. It is
recommended to turn off the LED before handling LED light or making any
Adjustments to it.
• Avoid direct light contact with the eyes.
• Avoid direct light irradiation in patient's eyes; patient use of safety glasses
is recommended.
Battery Charger & AC Power Adapter
• Use only the Battery Charger & AC Power Adapter supplied with this
system
• Do not disassemble, modify or short circuit
• Do not leave in hot places, such as inside a car or outside in hot weather
• Do not allow to get wet

WARRANTY

SurgiTel's mission is to provide the best products for your Vision & Ergonomics
at Work. To support this commitment SurgiTel warranties all of its products.
®
SurgiTel ® strives to make the best loupes and light systems available. Please
inspect and try on product immediately upon receipt. If you notice any issues,
contact our customer service department at 800-959-0153.
For both warranty and out-of-warranty issues, contact SurgiTel
regarding repairs.
Warranties vary by product. Check www.surgitel.com/warranty
Check www.surgitel.com/help for up to date care information/instructions.
Please keep up to date on care information/instructions, as warranties can be
affected if product is misused.
PATENT
True color beam family optics, U.S. Patent Numbers: US 9,383,077 B2;
US 9,494,299 B2
SurgiTel ®
a division of General Scientific Corporation
77 Enterprise Drive • Ann Arbor, MI 48103-9503
E-mail info@surgitel.com • www.surgitel.com
Doc No.
26939-
SurgiTel
Customer Service
®
for more details.
Surgical Mini LED Surgical Mini LED

USER INSTRUCTIONS

®
®
