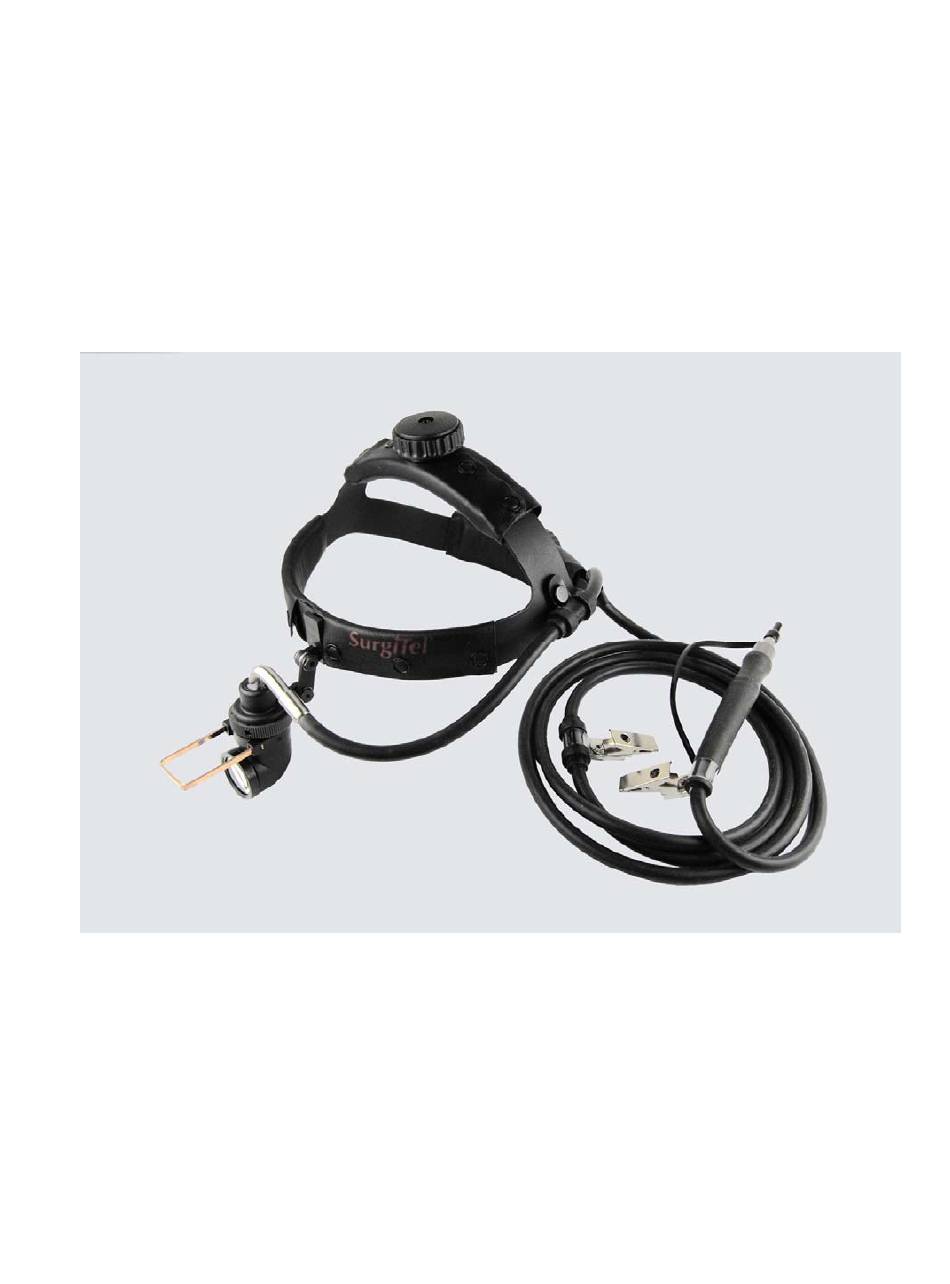

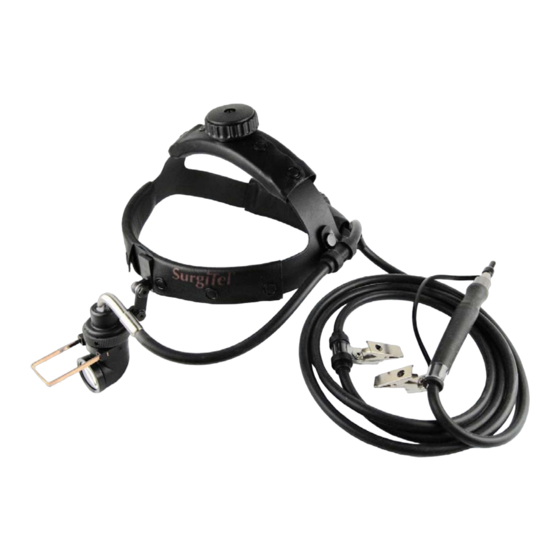

- Page 1 SurgiTel Fixed Headband Light w/ Iris Operation and Service Manual 25219- (Fixed Headband Light w/ Iris – English)
- Page 2 TABLE OF CONTENTS PAGE INDICATION FOR USE GENERAL WARNINGS ASSEMBLING THE HEADLIGHT SYSTEM 3.1 SYSTEM CONFIGURATION PACKAGE CONTENTS MAINTENANCE CLEANING REPLACEMENT PARTS WARRANTY AND REPAIR 25219- (Fixed Headband Light w/ Iris – English) Page 2...
- Page 3 END ON ANY FLAMMABLE OBJECT WHILE IT IS OPERATING. CAUTION: The metal end fittings of the fiber optic cable get hot during operation. Allow to cool outside the light source for at least 5 minutes before touching 25219- (Fixed Headband Light w/ Iris – English) Page 3...
- Page 4 : The metal portion of the fiber optic cable at the light source gets hot during operation. Allow cooling for a minimum of 5 minutes outside the illuminator before touching. 25219- (Fixed Headband Light w/ Iris – English) Page 4...
- Page 5 Fiber Optic Cable Headlight Garment Clips Module 4. FIXED HEADBAND LIGHT W/ IRIS PACKAGE CONTENTS Each fixed headband light system includes: Headlight module with variable focus from 20mm to 80mm spot size Ergo Headband 5mm fiber optic headlight cable ...
- Page 6 Rinse thoroughly. The cable and optics module can also be cleaned with an alcohol wipe down. WARNING: Do not autoclave the headband, lensed cables or optics module. 25219- (Fixed Headband Light w/ Iris – English) Page 6...
- Page 7 25080 8. LIMITED WARRANTY Your Fixed Headband Light w/ Iris carries a 3-year warranty from the date of purchase on workmanship and all defects of material, excluding headband and fiber optic cable. Should your product prove to have such defects within three years of the purchase, SurgiTel will repair or replace the product or component part without charge.
