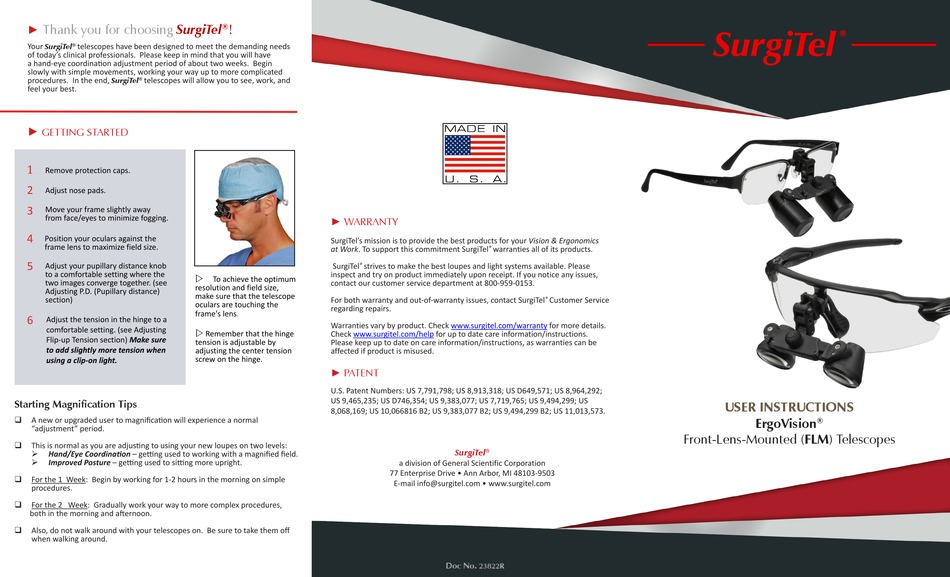

SurgiTel ErgoVision FLM User Instructions

Thank you for choosing SurgiTel
►
Your telescopes have been designed to meet the demanding needs
SurgiTel ®
of today's clinical professionals. Please keep in mind that you will have
a hand-eye coordination adjustment period of about two weeks. Begin
slowly with simple movements, working your way up to more complicated
procedures. In the end, telescopes will allow you to see, work, and
SurgiTel ®
feel your best.
►
GETTING STARTED
1
Remove protection caps.
2
Adjust nose pads.
3
Move your frame slightly away
from face/eyes to minimize fogging.
4
Position your oculars against the
frame lens to maximize field size.
5
Adjust your pupillary distance knob
to a comfortable setting where the
two images converge together. (see
Adjusting P.D. (Pupillary distance)
section)
6
Adjust the tension in the hinge to a
comfortable setting. (see Adjusting
Flip-up Tension section) Make sure
to add slightly more tension when
using a clip-on light.
Starting Magnification Tips
 A new or upgraded user to magnification will experience a normal
"adjustment" period.
 This is normal as you are adjusting to using your new loupes on two levels:
 Hand/Eye Coordination – getting used to working with a magnified field.
 Improved Posture – getting used to sitting more upright.
 For the 1 Week: Begin by working for 1-2 hours in the morning on simple
procedures.
 For the 2 Week: Gradually work your way to more complex procedures,
both in the morning and afternoon.
 Also, do not walk around with your telescopes on. Be sure to take them off
when walking around.
!
®
► WARRANTY
SurgiTel's mission is to provide the best products for your Vision & Ergonomics
at Work. To support this commitment SurgiTel
SurgiTel ® strives to make the best loupes and light systems available. Please
inspect and try on product immediately upon receipt. If you notice any issues,
 To achieve the optimum
contact our customer service department at 800-959-0153.
resolution and field size,
make sure that the telescope
For both warranty and out-of-warranty issues, contact SurgiTel
oculars are touching the
regarding repairs.
frame's lens
.
Warranties vary by product. Check
 Remember that the hinge Check www.surgitel.com/help
tension is adjustable by Please keep up to date on care information/instructions, as warranties can be
adjusting the center tension affected if product is misused.
screw on the hinge.
► PATENT
U.S. Patent Numbers: US 7,791,798; US 8,913,318; US D649,571; US 8,964,292;
US 9,465,235; US D746,354; US 9,383,077; US 7,719,765; US 9,494,299; US
8,068,169; US 10,066816 B2; US 9,383,077 B2; US 9,494,299 B2; US 11,013,573.
® warranties all of its products.
® Customer Service
www.surgitel.com/warranty for more details.
for up to date care information/instructions.
SurgiTel ®
a division of General Scientific Corporation
77 Enterprise Drive • Ann Arbor, MI 48103-9503
E-mail info@surgitel.com • www.surgitel.com
Doc No.
23822R
SurgiTel
®
USER INSTRUCTIONS
ErgoVision ®
Front-Lens-Mounted (FLM) Telescopes
