Manual #25159-
SKYLIGHT
SkyLight

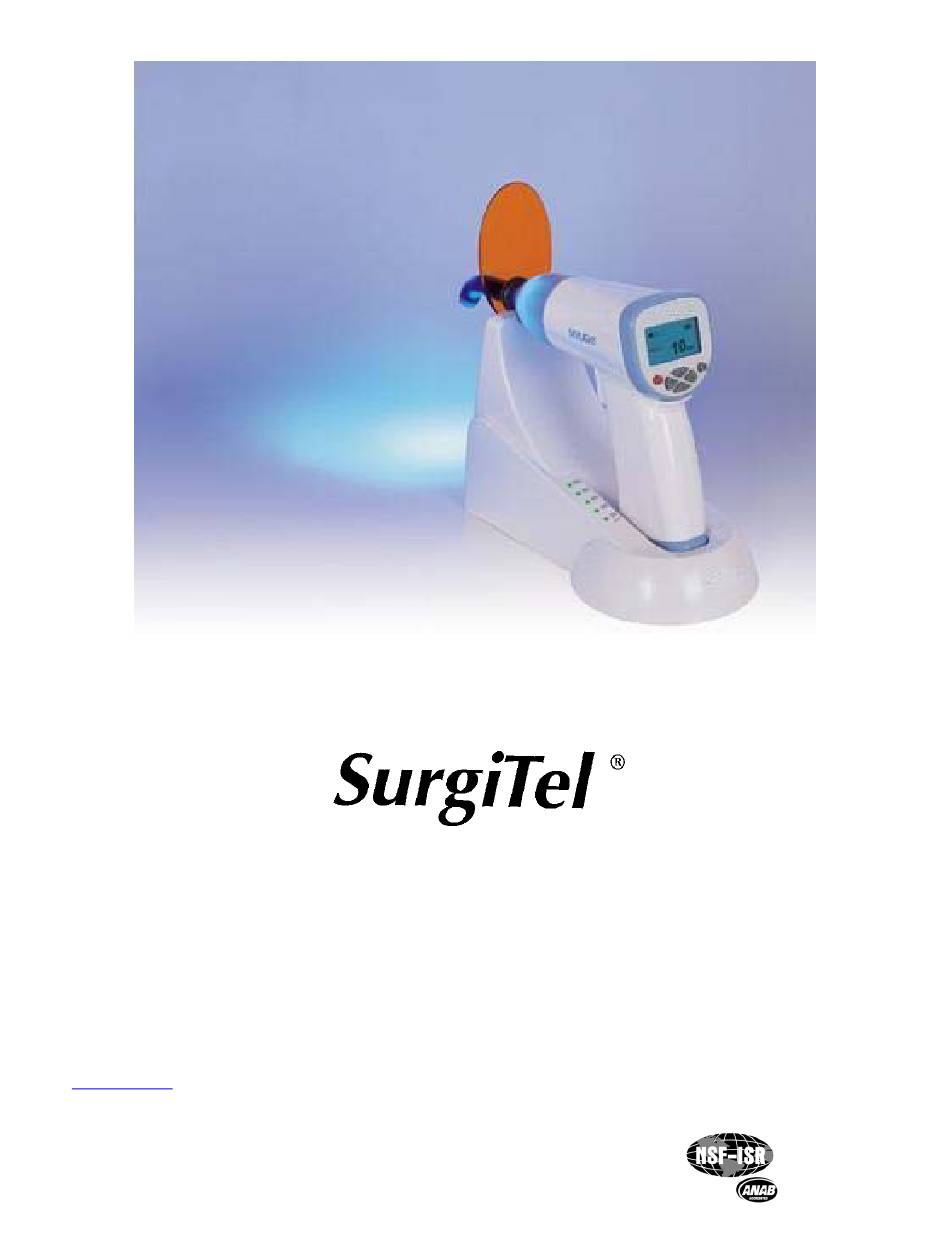

LED Curing Light
User's Manual
Please read before installation & use
®
SurgiTel
GSC proudly manufactures its products in the United States
GSC is an ISO 9001:2000 quality certified company
- 1 -
is a division of General Scientific Corporation (GSC)
Advertisement
Table of Contents
Related Manuals for SurgiTel SkyLight
Summary of Contents for SurgiTel SkyLight
- Page 1 SKYLIGHT SkyLight LED Curing Light User’s Manual Please read before installation & use ® SurgiTel www.surgitel.com is a division of General Scientific Corporation (GSC) 77 Enterprise Drive, Ann Arbor, MI 48103, USA GSC proudly manufactures its products in the United States...
- Page 2 (To EN-60601-1 Standard) Correspond to EC directive 93/42/EEC Including IEC 60601-1, IEC 60601-1-2 and IEC 60601-1-4 L0Xxxyzzzz Serial No. L0Xxxyzzzz L01: Skylight xxy: Manufacture Year & Month zzzz: Product Numbers Symbols used on charger DIRECT CURRENT - 2 - Manual #25159-...
- Page 3 2. PRODUCT DESCRIPTION & PARTS Reference Skylight Gun Light Guide Tip Small Eye Protector (cone-type) Large Eye Protector (disc-type) Battery Charger Power Supply for Charger AC100-240V, 50/60Hz Program Start Switch LCD Display Beep On/Off Program Mode 7-10 Battery Indicator On/Off Switch...
- Page 4 3. INSTALLATION Proper Use: The Skylight is intended for polymerization of light-cured dental materials in the mouth, such as adhesives and filling materials. *Caution – Do not use except for the intended purpose. *Caution – This device may cause different medical devices to malfunction due to potential electromagnetic radiation.
- Page 5 5. Usage Prior to use, follow all of the setup instructions in Section 3. Sterilize the Light Guide & Eye-protector in the autoclave at 135°C for 5 minutes before use. Adjustment before use 1) Press on On/Off switch on LCD side (press for one second). 2) Set the proper Mode and Time or select your program setting.
- Page 6 *Example of program setting and storage Press and select program 1. Press and select mode. Press and set time of 5 second. Press go to “PGM Save”. Press if you want to save program. Press and confirm program save. The LCD display will show Program 1, General Mode and 5 second- curing that is saved.
- Page 7 500hPa ~ 1060hPa Storage and transport conditions +10 to +45 Celsius 10% to 95% relative humidity 500hPa ~ 1060hPa Specifications of unit: Model: Skylight, Supply voltage: DC 7.4V Output characteristics Output intensity: 1,000mW/cm² MAX. (output intensity, wavelength): Wavelength: 440 – 490nm...
- Page 8 - Low LED light power *Check light intensity on radiometer at charger. Please contact SurgiTel if signal light is below 4 points with a full charge. Possible Cause: No or low power in battery. Solution: Check battery state. Place main body on charger for 60 minutes and try again.
