- Page 1 Leica BLK2GO PULSE Quick Guide Version 1.0 English...
-
Page 2: Instrument Information
Instrument Information Instrument Information Read and follow the User Manual on the accompanying Leica USB documentation card before using the product or the accessories delivered with the product. Keep for future reference! Intended use • Scanning structures. • Measuring horizontal and vertical angles. - Page 3 Using the product after incorrect attempts were made to carry out repairs. Precautions: Do not open the product! Only authorised Leica Geosystems AG Service Centres are entitled to repair these products. WARNING Electric shock due to use under wet and severe conditions If unit becomes wet, it may cause you to receive an electric shock.
- Page 4 Instrument Information Laser products and The BLK2GO PULSE instrument contains the following laser products: location of laser Laser product Laser class Classification apertures EDM (Electronic Distance Measurement) Class 1 IEC 60825-1 (2014-05) 27153_001 a Vertical field of view of the laser beam 85°...
- Page 5 Conformity to national regulations Hereby, Leica Geosystems AG declares that the radio equipment type BLK2GO PULSE is in compliance with Directive 2014/53/EU and other applicable European Directives. The full text of the EU declaration of conformity is available at the following Internet address: http://www.leica-geosystems.com/ce.
-
Page 6: Instrument Components

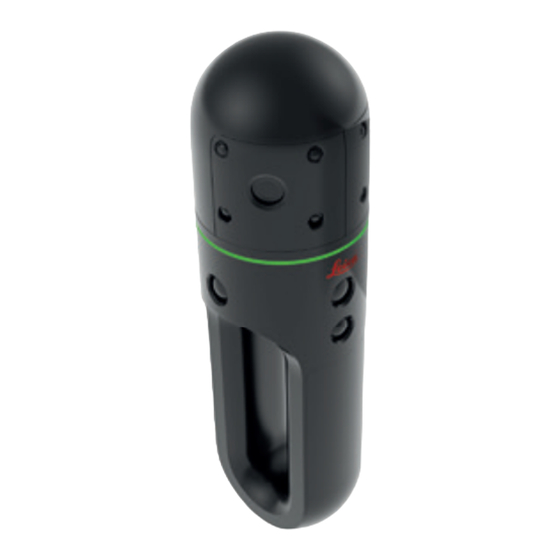

Instrument Components Instrument Components Instrument Dual Time-of-Flight LiDAR components b Ring-shaped LED Detail camera d Panoramic camera Handle Magnetic mobile device mount Air outlet h Power button Air inlet Battery compartment Locking mechanism for battery cover 27142_001 27142_001... -
Page 7: Technical Data
Technical Data Environmental Temperature specifications Type Operating temperature [°C] Storage temperature [°C] BLK2GO PULSE 0 to +40 −25 to +70 Battery GEB821 0 to +50 −40 to +70 Multicharger GKL825 0 to +40 −40 to +70 AC/DC power supply 0 to +40 −40 to +70... - Page 8 Technical Data Protection against water, dust and sand Type IP Class BLK2GO PULSE IP54 (IEC 60529) Dust protected Betamesh BM90 – filtration level 69 μm Betamesh BM20 – filtration level 20 μm Battery GEB821 IP54 (IEC 60529) Dust protected Protection against splashing water from any direction.
- Page 9 Altitude Type Protection BLK2GO PULSE Unrestricted Battery GEB821 Unrestricted Multicharger GKL825 ≤2000 m AC/DC power supply ≤2000 m Lighting Type Lighting BLK2GO PULSE Fully operational at daylight. Avoid direct, bright sunlight and poorly lit, dark areas. Sound Level Type Value BLK2GO PULSE <...
-
Page 10: Care And Transport
Periodically carry out test measurements, particularly after the product has been drop- ped, stored for long periods or transported. Ambient conditions a Shield the BLK2GO PULSE from direct sunlight and unfavourable weather. b If the Dual Time-of-Flight LiDAR is exposed to rain, scanning is not possible. -
Page 11: Operation
Operation Getting started The battery must be charged before using it for the first time. 1 Turning on/Booting Operation, 2 Ready to start step-by-step 1 1 1 2 2 2 3 3 3 operation (stand alone or with connected device) 3 Start the scan/ initialising 4 Initialised/recording... - Page 12 988944-1.0.0en Original text (988944-1.0.0en) Printed in Switzerland © 2023 Leica Geosystems AG, Heerbrugg, Switzerland leica-geosystems.com...
