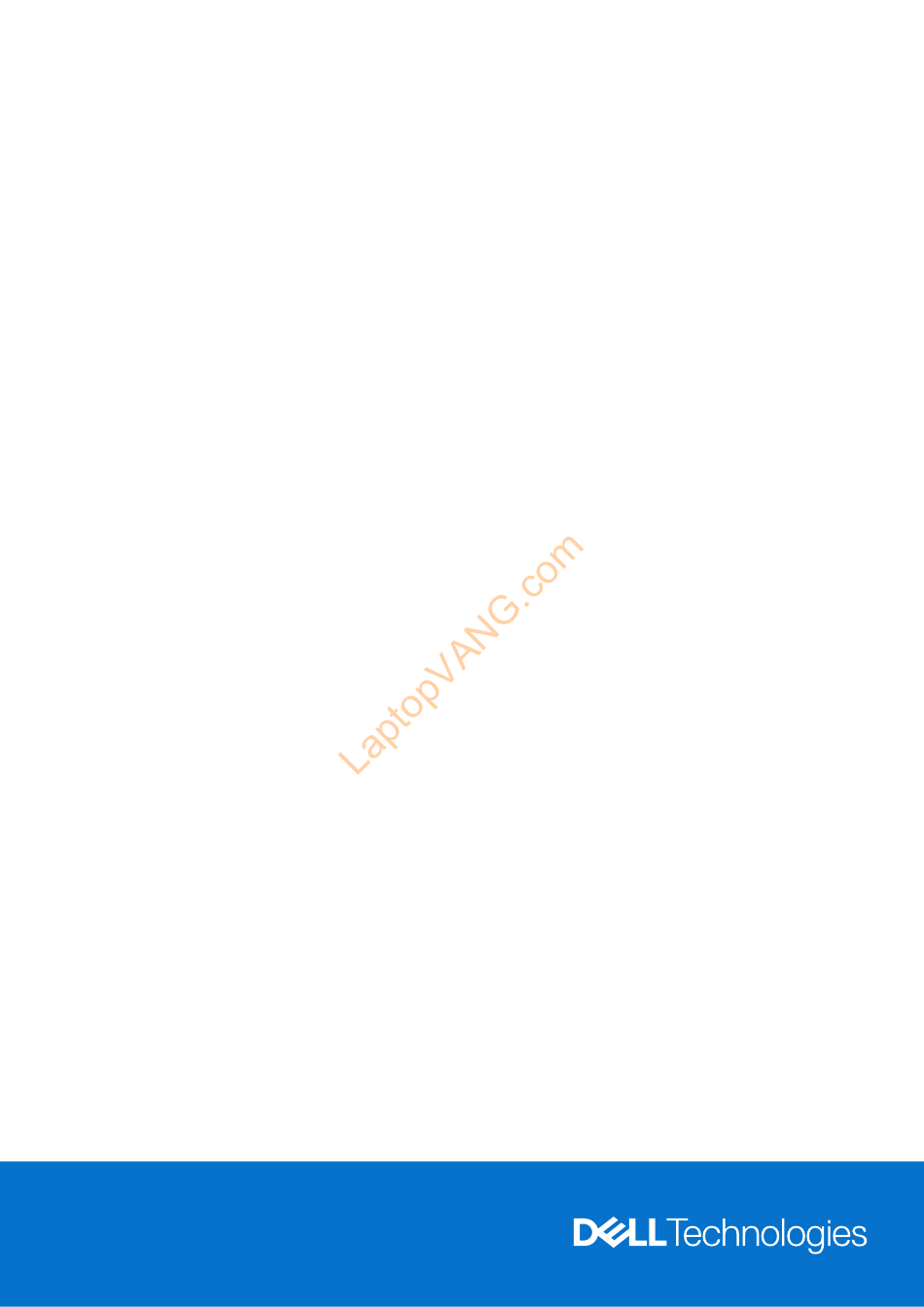

Latitude 7350 Detachable
Owner's Manual
Regulatory Model: T07H
Regulatory Type: T07H001
March 2024
Rev. A00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Latitude 7350 Detachable and is the answer not in the manual?

Questions and answers

Thomas Crouch
March 15, 2025

how to I order the external video adapter for Dell latitude 7350 detachable

0

Subscribe to Our Youtube Channel

Related Manuals for Dell Latitude 7350 Detachable

Summary of Contents for Dell Latitude 7350 Detachable

  • Page 1 Latitude 7350 Detachable Owner's Manual Regulatory Model: T07H Regulatory Type: T07H001 March 2024 Rev. A00...

  • Page 2: Table Of Contents

    Bottom....................................11 Service Tag...................................11 Battery charge and status light .............................12 Chapter 2: Set up your Latitude 7350 Detachable................ 13 Attach the Latitude 7350 Detachable Collaboration Keyboard................14 Docking and charging the Latitude 7350 Detachable Active Pen................15 Chapter 3: Specifications of Latitude 7350 Detachable..............18 Dimensions and weight..............................

  • Page 3: Chapter 1: Views Of Latitude 7350 Detachable

    Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4. NOTE: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, search in the Knowledge Base Resource at www.dell.com/support. NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.

  • Page 4: Top

    Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4. NOTE: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, search in the Knowledge Base Resource at www.dell.com/support. NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.

  • Page 5: Front

    Enhances security when paired with Windows Hello face authentication. 4. Camera-status light Turns on when the camera is in use. 5. Infrared emitter The infrared emitter emits infrared light, which enables the infrared camera to sense and track motion. Views of Latitude 7350 Detachable...

  • Page 6: Back

    Enables you to video chat, capture photos, and record videos. 4. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. NOTE: The Service Tag label is located beneath the kick stand.

  • Page 7: Bottom

    Connect the computer to the Latitude 7350 Detachable Collaboration Keyboard (sold separately). Service Tag The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information. Figure 7. Service Tag location...

  • Page 8: Battery Charge And Status Light

    Battery charge and status light The following table lists the battery charge and status light behavior of your Latitude 7350 Detachable. Table 1. Battery charge and status light behavior  Power Source LED Behavior System Power State Battery Charge Level AC Adapter...

  • Page 9: Chapter 2: Set Up Your Latitude 7350 Detachable

    Figure 8. Connect the power adapter and press the power button NOTE: If you have purchased this computer without a power adapter, connect your computer to a compatible, Dell- branded power adapter. For more information about the power requirements of your computer, see...

  • Page 10: Attach The Latitude 7350 Detachable Collaboration Keyboard

    Keyboard About this task NOTE: These instructions apply only if you are connecting your computer to a Latitude 7350 Detachable Collaboration Keyboard (sold separately). Steps 1. Lower the computer onto the keyboard as shown. Ensure the pogo connectors on the computer and keyboard are aligned and firmly attached.

  • Page 11: Docking And Charging The Latitude 7350 Detachable Active Pen

    For a stable and comfortable typing experience, place the computer on a flat surface when in use. NOTE: Use a damp cloth or wet wipes with 50% alcohol or less to clean off any dust on the Latitude 7350 Detachable Collaboration Keyboard.
  • Page 12 Figure 10. Docking the Latitude 7350 Detachable Active Pen 2. The LED indicator on the Latitude 7350 Detachable Active Pen lights up during charging and turns off when the pen is fully charged. Set up your Latitude 7350 Detachable...
  • Page 13 Figure 11. Charging the Latitude 7350 Detachable Active Pen NOTE: For more information about using the pen, see the Latitude 7350 Detachable Active Pen User's Guide available with your product documentation at www.dell.com/support. Set up your Latitude 7350 Detachable...

  • Page 14: Chapter 3: Specifications Of Latitude 7350 Detachable

    ● With Smart Card reader: 0.86 kg (1.89 lb) the configuration that is ordered and manufacturing variability. Processor The following table lists the details of the processors that are supported for your Latitude 7350 Detachable. Specifications of Latitude 7350 Detachable...

  • Page 15: Chipset

    Processor cache 12 MB 12 MB Integrated graphics Intel Graphics Intel Graphics Chipset The following table lists the details of the chipset that is supported for your Latitude 7350 Detachable. Table 5. Chipset  Description Values Chipset Integrated in the processor Processor...

  • Page 16: Memory

    ● Windows 11 Professional Memory The following table lists the memory specifications of your Latitude 7350 Detachable. Table 6. Memory specifications  Description Values Memory slots Onboard Memory type Dual-channel, LPDDR5, LPDDR5x Memory speed 6400 MT/s Maximum memory configuration 32 GB...

  • Page 17: Wireless Module

    M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. Wireless module The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Latitude 7350 Detachable. Table 9. Wireless module specifications  Description Values...

  • Page 18: Audio

    For instructions on how to find your computer's International Mobile Equipment Identity (IMEI) number, search in the Knowledge Base Resource at www.dell.com/support. Audio The following table lists the audio specifications of your Latitude 7350 Detachable. Table 11. Audio specifications  Description...

  • Page 19: Storage

    M.2 2230, Class 35 solid-state drive PCIe Gen 4 x4, up to 64 Gbps 512 GB (self-encrypting) Camera The following table lists the camera specifications of your Latitude 7350 Detachable. Table 13. Camera specifications  Description Values Number of cameras Camera type ●...

  • Page 20: Power Adapter

    ● World-facing camera: 77.30 degrees ● User-facing camera: 88.10 degrees Infrared camera 77.30 degrees Power adapter The following table lists the power adapter specifications of your Latitude 7350 Detachable. Table 14. Power adapter specifications  Description Option one Option two Type...

  • Page 21: Power Adapter Requirements Of Latitude 7350 Detachable

    Power adapter requirements of Latitude 7350 Detachable The following image is a pictogram of the power adapter requirements of your Latitude 7350 Detachable. Power adapter requirements of Latitude 7350 Detachable Figure 12.

  • Page 22: Battery

    ExpressCharge mode must also be enabled in the BIOS Setup screen by selecting Power > Battery Configuration > ExpressCharge, then pressing Enter. Battery The following table lists the battery specifications of your Latitude 7350 Detachable. Table 16. Battery specifications  Description Option one...

  • Page 23: Display

    If your battery charge is depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption. Display The following table lists the display specifications of your Latitude 7350 Detachable. Table 17. Display specifications  Description...

  • Page 24: Fingerprint Reader

    Intel Graphics Shared system memory Intel Core Ultra 5/7 processors External display support The following table lists the external display support for your Latitude 7350 Detachable. Table 20. External display support  Graphics card Supported external displays with Supported external displays with...

  • Page 25: Smart-Card Reader

    Smart-card reader Contactless smart-card reader This section lists the contactless smart-card reader specifications of your Latitude 7350 Detachable. This module is only available in computers shipped with Smart-card readers. Table 22. Contactless smart-card reader specifications  Title Description Dell ControlVault 3 Plus contactless...
  • Page 26 MIFARE Px GM49Y 2623BNPGGBNAB iCLASS MIFARE Px 8M1L iClass SEOS JW 5006PGGMN Crescendo iCLASS Px G8H iCLASS Seos IY SEOS JMC4 J1Y 5806VNG1NNN4 SEOS Key FOB 5266PNNA SEOS Clamshell 5656PMSAV SEOS + Prox 5106RGGMNN Specifications of Latitude 7350 Detachable...
  • Page 27 TOP DL GX4 144K card Sony Felica RC-S962 Felica RC-S965 Felica RC-S966 PIVKey C910 PKI NIST PIV1 IDENTIV PIV programmed cards uTrust Transport cards Oyster (London) MIFARE DESFire T-Money (Korea) Octopus Card (Hong Kong) SUICA (Japan) Specifications of Latitude 7350 Detachable...

  • Page 28: Contacted Smart-Card Reader

    EV1Card 8K Tap and do - ISO 15693 - Tag-it Plus HID I-code ISO card Contacted smart-card reader The following table lists the contacted smart-card reader specifications of your Latitude 7350 Detachable. Table 26. Contacted smart-card reader specifications  Title Description...

  • Page 29: Keyboard

    Dell ControlVault support Device connects to Dell ControlVault for usage and processing Keyboard The following table lists the keyboard specifications of your Latitude 7350 Detachable. Table 27. Keyboard specifications  Description Values Keyboard type Latitude 7350 Detachable Collaboration Keyboard with AI hot- key.

  • Page 30: Keyboard Shortcuts Of Latitude 7350 Detachable

    Keyboard shortcuts of Latitude 7350 Detachable NOTE: The Latitude 7350 Detachable Collaboration Keyboard is sold separately. NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

  • Page 31: Clickpad

    Toggle Fn-key lock Fn + Up arrow Page up Fn + Down arrow Page down Clickpad The following table lists the clickpad specifications of your Latitude 7350 Detachable Keyboard (sold separately). Table 30. Clickpad specifications  Description Values Clickpad type Collaboration Touchpad...

  • Page 32: Operating And Storage Environment

    To enjoy the collaboration touchpad (CTP) controls feature on your keyboard, ensure that you have the latest versions of the Dell Optimizer app and Zoom or Teams for work or school installed on your computer. Dell Optimizer offers modular installation which allows you to select the modules you want to install. Install the collaboration touchpad module within the Dell Optimizer app to enjoy the functionality of collaboration controls.
