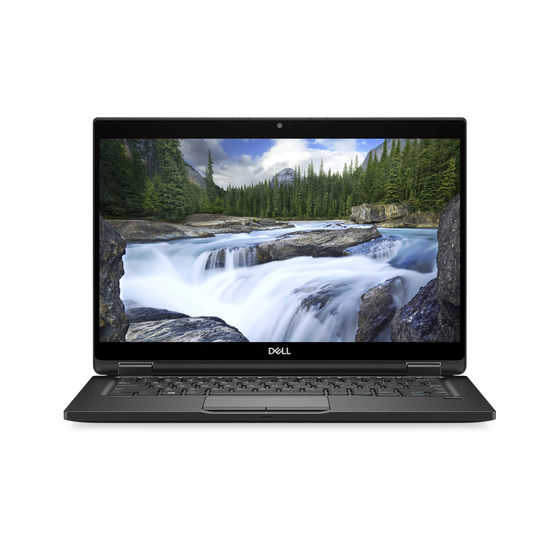

Dell Latitude 7390
Solid State Drive Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for Dell Latitude 7390

Summary of Contents for Dell Latitude 7390

  • Page 1 Dell Latitude 7390 Solid State Drive Installation Guide...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Safety instructions................................4 Before working inside your computer........................4 Safety precautions............................... 5 Electrostatic discharge—ESD protection......................... 5 ESD field service kit ..............................6 After working inside your computer...........................7 2 Installing the 2230 Solid State Drive......................8 3 Getting help..............................17 Contacting Dell..................................17 Contents...

  • Page 4: Before You Begin

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 5: Safety Precautions

    Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in previous Dell products. For this reason, some previously approved methods of handling parts are no longer applicable.

  • Page 6: Esd Field Service Kit

    It is recommended that all field service technicians use the traditional wired ESD grounding wrist strap and protective anti-static mat at all times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from all insulator parts while performing service and that they use anti-static bags for transporting sensitive components.

  • Page 7: After Working Inside Your Computer

    CAUTION: To avoid damage to the computer, use only the battery designed for this particular Dell computer. Do not use batteries designed for other Dell computers. Connect any external devices, such as a port replicator or media base, and replace any cards, such as an ExpressCard.

  • Page 8: Installing The 2230 Solid State Drive

    Installing the 2230 Solid State Drive Follow the below procedures to install the 2230 Solid State Drive on your Dell Latitude 7390 laptop. Follow the procedure in Before working inside your computer. Release the base cover: Loosen the eight M2.5 x 6 captive screws that secure the base cover to the computer [1].Then, use a plastic scribe to release the base cover from the edge of the computer.
  • Page 9 Remove the battery. NOTE: Your laptop is either shipped with a 3-cell or 4-cell battery. To remove a 3-cell battery: Disconnect the battery cable from the connector on the system board [1]. Remove the M2 x 5 screw that secures the battery to the computer [2]. Lift the battery from the computer [3].
  • Page 10 b To remove a 4-cell battery: Disconnect the battery cable from the connector on the system board [1]. Remove the two M2 x 5 screws that secure the battery to the computer [2]. Lift the battery from the computer [3]. Installing the 2230 Solid State Drive...
  • Page 11 Install the M.2 2230 SSD to the SSD bracket. To install the SSD bracket: M.2 SSD bracket [1]. Place the M.2 SSD [2] on the SSD bracket [3]. Slide the SSD into the slot provided on the SSD bracket [4]. Fasten the M2.0 x 3.0 screw to secure the 2230 M.2 SSD to the SSD bracket [5].
  • Page 12 b To install the M.2 2230 SSD assembly into the computer: Align the M.2 2230 SSD assembly into its slot in the computer [1]. Fasten the M2.0 x 3.0 screw to secure the M.2 SSD assembly to the computer [2]. Installing the 2230 Solid State Drive...
  • Page 13 Install battery. To install a 3-cell battery: NOTE: Route the battery cable, if the cable at the base of the battery is un-routed. Insert the battery into the slot on the computer [1]. Replace the M2 x 5 screw to secure the battery to the computer [2]. Connect the battery cable to the connector on the system board [3].
  • Page 14 b To install a 4-cell battery: NOTE: Route the battery cable, if the cable at the base of the battery is un-routed. Insert the battery into the slot on the computer [1]. Replace the two M2 x 5 screws to secure the battery to the computer [2]. Connect the battery cable to the connector on the system board [3].
  • Page 15 Install the base cover. Align the base cover tabs to the slots on the edges of the computer. b Press the edges of the cover until it clicks into place. Tighten the M2.5 x 6.0 captive screws to secure the base cover to the computer. CAUTION: Exercise caution when tightening the screws.
  • Page 16 Follow the procedure in After working inside your computer. Installing the 2230 Solid State Drive...

  • Page 17: Getting Help

    Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Go to Dell.com/support.
