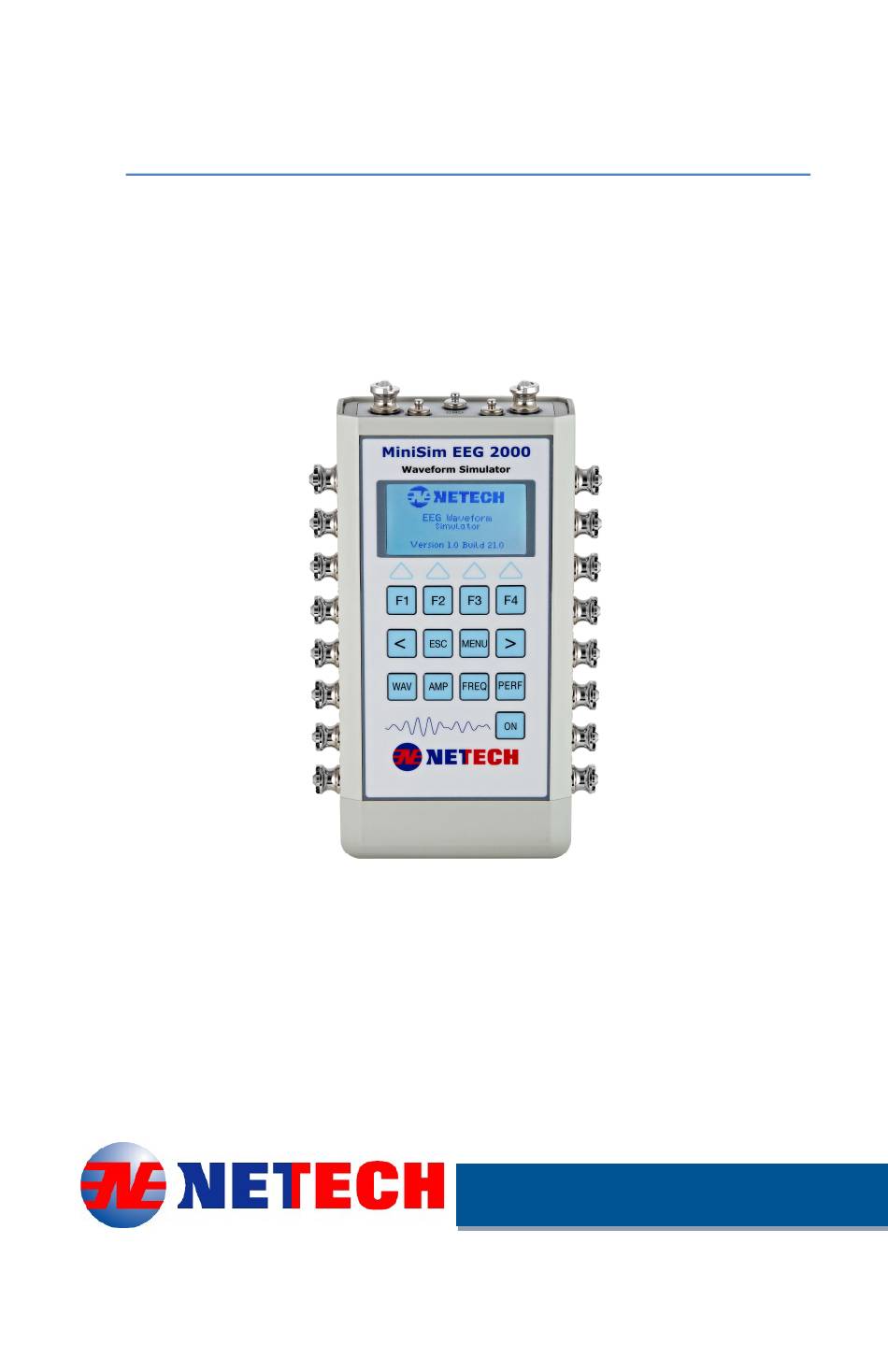

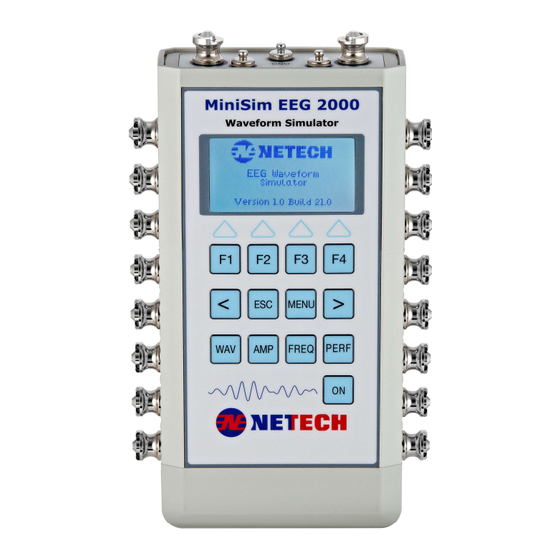

- Page 1 MiniSim EEG Simulator User Manual ►Compact ►Easy to Use ► One of a Kind► EEG Waveform Simulator Innovative Instruments Since 1987 PN:-333-USR-MAN MiniSim EEG 2000 - Quick-Reference Manual-333--3247...
-
Page 2: Table Of Contents
Table of Contents Notices....................1 Warnings ..................1 Introduction ..................2 Description ..................2 MiniSim EEG 2000 Features ............. 2 Preparation for Use ................3 Specification ..................3 ECG Rate (BPM) ................4 Amplitude ..................4 General Specifications: ..............4 Instrument Familiarization .............. -
Page 3: Notices
Netech Corporation. Quality Assurance Netech is ISO 9001-2015 Registered. This instrument w a s thoroughly tested and inspected according to Netech’s ISO 9001-2015 quality system and test procedures and found to meet those specifications when it was shipped from the factory. - Page 4 Repair and Recalibration Products returned for repair or recalibration must obtain a RMA (Return Material Authorization) from our service department after completing a service request form our website https://www.NetechBiomedical.com/repair or contact Netech Customer Service Department at CustomerService@NetechBiomedical. com...
-
Page 5: Warnings
General Contact Information Netech Corporation, 110 Toledo St, Farmingdale, NY 11735. Phone: 631-531-0100, 1-800-547-6557 Website: www . NetechBiomedical .com Email: sales@NetechBiomedical.com Warnings Symbol Description Caution Important Safety Information Hazardous Voltage Conforms to European Union Directive MiniSim EEG 2000 - Quick-Reference Manual-333--3247... -
Page 6: Introduction
P a g e Introduction Description MiniSim EEG 2000 is a versatile EEG waveform simulation instrument. It is designed exclusively for testing various EEG monitoring devices including recorders, Sleep Study Monitors, and multi‐channel EEG monitoring systems. This compact, microcontroller-based instrument simulates six different types of EEG waveforms, such as Alpha, Theta, Gamma, Delta, Beta and ABR. -
Page 7: Preparation For Use
P a g e Preparation for Use The EEG 2000 patient simulator is shipped with the following items: Customized hard case: Li Ion Battery Charger (110/220 V input) User manual Specification EEG Waveforms: ABR: 1Khz Alpha: 8 -12 Hz Beta: 12 - 38 Hz Delta:... -
Page 8: Ecg Rate (Bpm)
P a g e ECG Rate (BPM) Rate: User selectable: 30, 60, 90, 120 BPM Amplitude User selectable: 0.1, 0.25, 0.50, 0.75, 1.0, 1.5, 2.0, and 2.5 General Specifications: Temperature Range: Operating: +15°C to +35°C, Storage: 0°C to +50°C. Display: Type: 128 x64 graphics display with LED backlighting. -
Page 9: Instrument Familiarization
P a g e Instrument Familiarization Before getting started it is important to get familiar with the control and operation of the unit Figure 1. EEG Simulator Controls Number Description Graphics LCD Window Function Keys, F1, F2, F3, F4 Arrow Key > (Right) Performance Wave (Sine, Square, Triangle) Arrow key <... -
Page 10: Menu Abbreviations
P a g e Display The MiniSim EEG 2000 incorporates a high contrast 128 X 64 LCD with LED backlighting for easy viewing. Key Pads The keypad utilizes soft-touch tactile keys. The dedicated key functions and interactive menu make it easier to use. -
Page 11: Getting Started
P a g e Getting Started Prior to the initial operation, make sure to charge the built-in Li-ion battery by plugging in the Charger to the battery input Jack. The battery charging status is indicated by the yellow LED next to the input jack. It takes 3-4 hours to fully charge the battery. -
Page 12: Ecg Menu
P a g e The desired amplitude can be selected by pressing the “AMP” key and using the F1, F2, F3, F4 keys. Use the <, > keys for more amplitudes. ECG Menu The ECG waveform can be selected from the Main Menu. Use >... -
Page 13: Performance Menu
P a g e Performance Menu Select any of the desired waveform using the F1, F2, F3 keys. The default amplitude is 500 micro-Volt. To Change the amplitude press “AMP” key and using the F1, F2, F3, F4 keys. Please Note: The amplitude selected is saved into the memory and will show in the next powerup. -
Page 14: Electrode Placement
P a g e | 10 Electrode Placement The following is a general representation of the electrode placement. A1 and A2 are marked REF on the unit. - Page 15 P a g e | 11 EEG Output Connectors: 16 universal patient lead connecters labeled according to general EEG electrode placement left side and right side as shown above. ECG Output Connectors: ECG output connectors are marked on the side panel next to the ECG leads.
-
Page 16: Eeg Simulation
P a g e | 12 EEG Simulation The MiniSim EEG 2000 simulates EEG, and performance waveforms. The amplitude and rate of these waveforms are user-selectable from the menu as described elseware. Setup Connect the EEG cup electrodes to the EEG snap studs by pulling the color and insert the cup electrode. -
Page 17: Performance Wave Simulation
P a g e | 13 Select the desired rate or amplitude using AMP or FREQ (BPM). Use > < keys to scroll for additional selection. The selected waveform, rate, and amplitude is Displayed and the waveform can be observed on the ECG monitor. -
Page 18: Warranty
Netech. 3. Netech will not be liable for any incidental or consequential damages. 4. In the opinion of Netech upon inspection, the MiniSim EEG 2000 has not been misused, altered, or damaged due to the abnormal handling and/or operation. 5. Repairs to the MiniSim EEG 2000 and/or its components have not been made by anyone other than Netech or one of its authorized repair agents. - Page 19 P a g e | 15 To receive free software and firmware updates, please fill out and send the warranty registration card or fill out online warranty registration: - http://www.NetechBiomedical.com/warranties Appendix: A Current Revision: 04/24/24...
