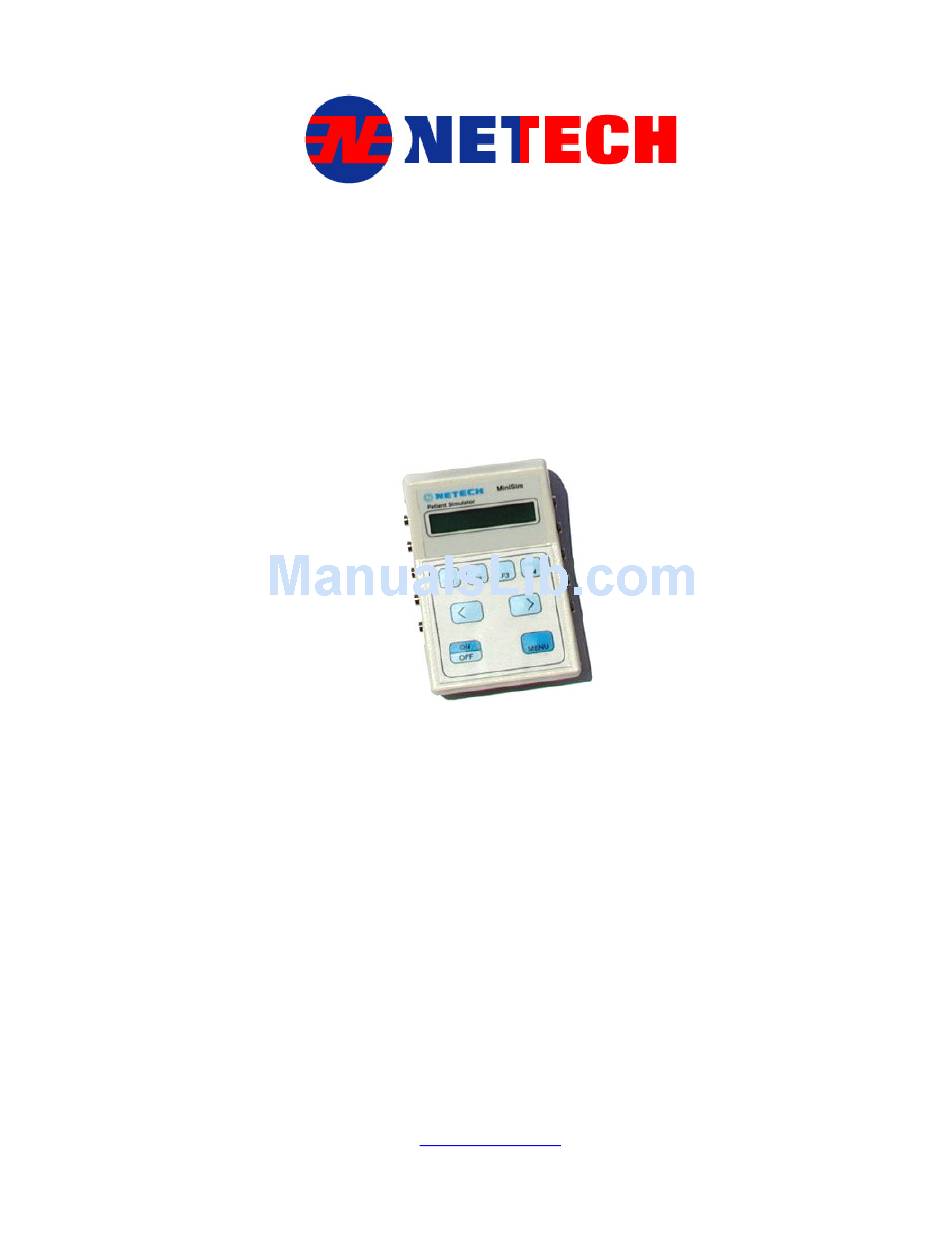

- Page 1 MiniSim 1000 Multi Parameter Patient Simulator INSTRUCTION MANUAL 110 Toledo Street Farmingdale N.Y. 11735 Phone: 631-531-0100 Fax: 631-531-0101 www.Netech.org Minisim user manual...
- Page 2 Netech Corporation, or if its serial number is defaced or removed. Netech reserves the right to discontinue the MiniSim 1000 at any time, and change its specifications, price, or design without notice and without incurring any obligation. Netech guarantees availability of service parts for 5 years after the manufacture of the unit is discontinued.
- Page 3 Trademarks Netech and MiniSim 1000 are trademarks of Netech Corporation. Any other trademark names used in this manual are only for editorial purposes and the benefit of the respective trademark owner, with no intention of improperly using that trademark. Minisim 1000 User Manual...
-
Page 4: Table Of Contents
Table of Contents 1. General Overview Introduction ------------------------------------------ Specifications ------------------------------------------ Accessories ------------------------------------------ 2. Operating Instructions Controls and Indicators ---------------------------------- Baseline ECG Waveform-------------------------------- Performance Waveforms------------------------------- Arrhythmia Waveforms ---------------------------------- Automatic Testing Sequences------------------------- Respiration Waveforms/ Apnea----------------------- Blood Pressure waveforms----------------------------- Temperature------------------------------------------------ Calibration--------------------------------------------------- Minisim 1000 User Manual... -
Page 5: General Overview
The device also simulates square, sine, triangle, and pulse performance waveforms. The easy to operate MiniSim 1000 is menu driven via eight tactile feel soft keys. All functions are displayed on a two line sixteen character LCD display. - Page 6 Weight: 10 oz ( 0.3 kg). TEMPERATURE REQUIREMENTS: Operating: 59 to 95° F (15 to 35°C). Storage: 32 to 131° F (0 to 55°C). CALIBRATED DC OUTPUTS: 10 Calibrated DC outputs from 0.04 to 2 mV. Minisim 1000 User Manual...
-
Page 7: Accessories
Hewlett Packard Dual Hewlett Packard Single Fukuda Denshi Dual Bard Dual Bard Single 311-S Mennen Medical Single Ivy Biomedical Single Other Interface cables available. Please call or send an email for more information. (800) 547-6557 Sales@Netech.org Minisim 1000 User Manual... -
Page 8: Operating Instructions
Arrow Keys: Menu Key The operating menu of the MiniSim 1000 is arranged in a tree structure. When turned on, the microcontroller initializes a test routine and displays the model and software version numbers and then switches to the Main Menu. -
Page 9: Baseline Ecg Waveform
<’ and ‘>’ arrow keys move through the available choices under the selected The ‘ parameter. Basic Operating Instructions: Connect the MiniSim 1000 to a patient monitor using the ECG lead snaps, correct blood pressure interface cable, and correct temperature interface cable. Turn the Minisim 1000 On. Select the parameter for simulation, ‘ECG’, ’... - Page 10 QRS amplitude of 1 mV, ST segments are produced at positive DC levels of 70, 130, and 200 micro volts. Waveforms may be selected with a ‘Flat’, a positive ‘+sl’, or a negative ‘-sl’ slope. The ST segment is proportional to the ECG amplitude setting. ST _DPRESION Flat Minisim 1000 User Manual...
- Page 11 80 90 100 110 120 Ampl: Amplitude default setting 1.0 mV .15 0.3 0.5 1.0 2.0 3.0 4.0 5.0 Perf. Waves SIN: Sine Wave SQR: Square Wave TRI: Triangle Wave PLS: Pulse Wave SIN/ Freq Ampl Minisim 1000 User Manual...
- Page 12 MB1: Second Degree AV Block: Mobitz I: Wenckebach: The QRS is generated at 80 BPM. There is a progressive lengthening of the PR interval with intermittent dropped beats. The PR intervals are 170, 230, and 310 ms. Minisim 1000 User Manual...
- Page 13 The automatic test sequences are: RWD: R Wave Detection TalT: Tall T Wave Rejection PPR: Pacemaker Pulse Rejection TAC: Time for Alarm for Tachycardia Minisim 1000 User Manual...
- Page 14 10 ms Rate: 30, 210 BPM Set 3 Complete Test Sequence Amplitude Width Rate Time (mV) (ms) (BPM) (sec) 30, 210 The patient monitor will not respond to the waveforms in the Set 3 test sequence. Minisim 1000 User Manual...
- Page 15 Each waveform is generated for 20 seconds and the display will show the amplitude and the rate of the waveform being generated. The following is the sequence of waveforms: Ventricular Tachycardia Rate Width Rate (BPM) (mV) (ms) (BPM) (mV) Minisim 1000 User Manual...
-
Page 16: Blood Pressure Waveforms
The default settings for pressure values are: BP1 Dynamic: 120/80 Static: BP2 Dynamic: 60/40 Static: The Dynamic pressure value selections are: 100/60 120/80 50/10 60/20 70/30 80/40 The Static pressure value selections are: 25 30 100 150 200 300 Minisim 1000 User Manual... -
Page 17: Temperature
37 C for both YSI 400 and YSI 700. CALIBRATION The MiniSim 1000 is shipped from the factory fully calibrated with a Certificate of Calibration traceable to the NIST. Annual calibration is recommended. Contact the Customer Service Department for instructions for returning the instrument to Netech for either calibration or repair. - Page 18 Appendix A Minisim 1000 User Manual...
