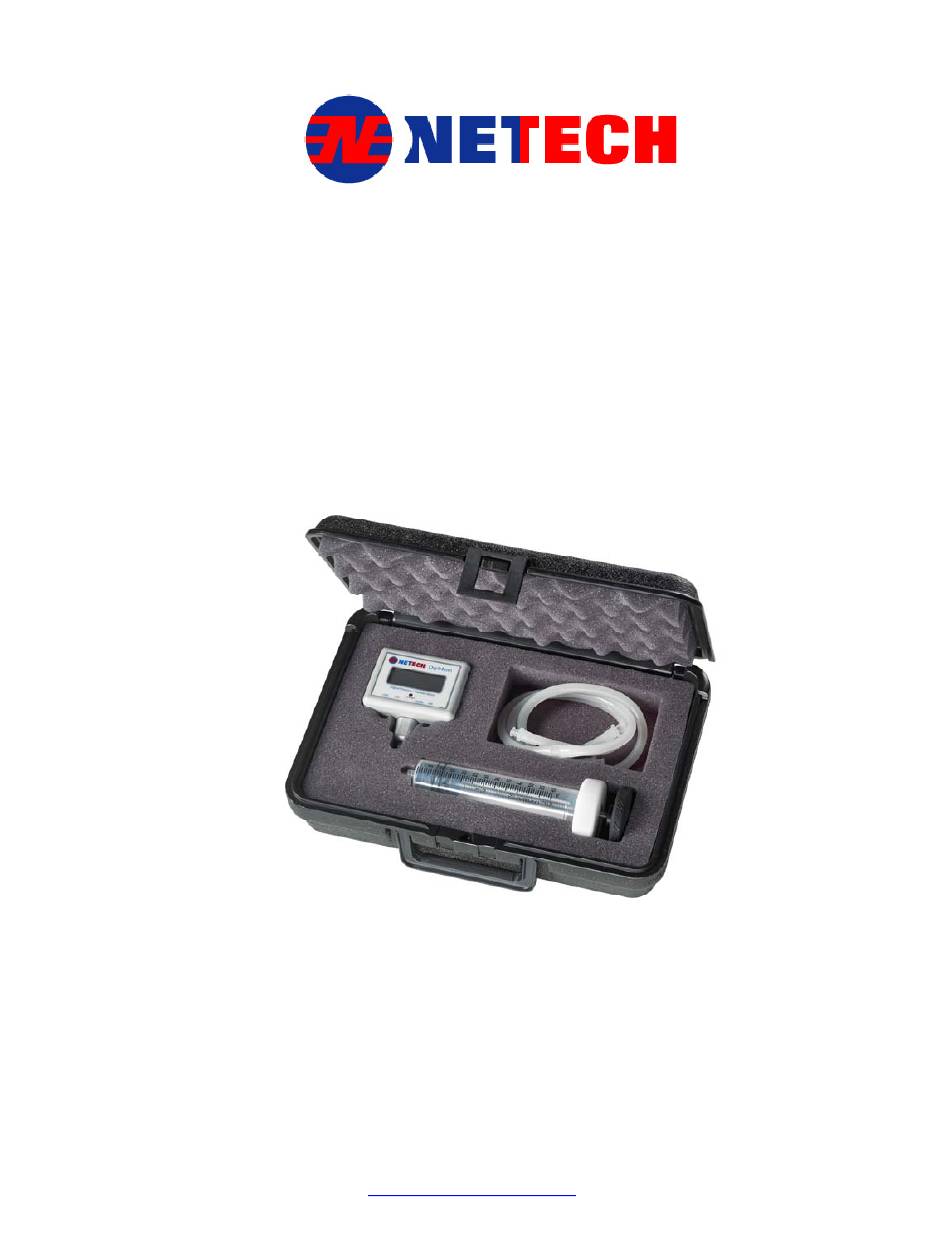

- Page 1 200-BP-CAL-KIT Sphygmomanometer Calibration Kit INSTRUCTION MANUAL 公司：深圳市净康科技有限公司 地址：深圳市龙岗区沙平北路111号6008 电话: 15813841944 0755-28917660 联系人：王小姐 QQ：422612157 邮箱：jkang66@163.com www.300buy.com Sphygmomanometer Calibration Verification Guideline...
- Page 2 Copyright Copyright © 2003 by Netech Corporation. All rights reserved. No part of this publication may be reproduced or transmitted in any form other than for the purchaser’s personal use without written permission from Netech Corporation. Quality Assurance Netech Corporation is ISO 9001-2000 Registered. This instrument was thoroughly tested and inspected according to Netech’s ISO 9001-2000...
-
Page 3: Table Of Contents
Table of Contents 1. General Overview Introduction----------------------------------------------------- 05 Specifications-------------------------------------------------- 05 Accessories---------------------------------------------------- 06 Optional Accessories---------------------------------------- 06 2. Operating Instructions Controls and Indicators ------------------------------------- 07 Typical Calibration Setup ----------------------------------- 08 3. Troubleshooting The Calibration Setup Maintaining Initial Zero ------------------------------------- 09 Maintaining Steady Pressures ---------------------------- 10 Sphygmomanometer Calibration Verification Guideline... -
Page 4: General Overview
GENERAL OVERVIEW SECTION 1 INTRODUCTION GENERAL DESCRIPTION The heart of the Blood Pressure Calibration Kit is a Digimano 1000 series Pressure Meter. The Digimano 1000 is a portable digital instrument designed to measure the pressure and vacuum of non-corrosive fluids and gases. The versatile instrument presents its measurement results in one of two engineering units on a large 3 _ digit LCD display. -
Page 5: Accessories
Low Battery Indicator: LED on if battery voltage is ≤ 6.8 volts. Physical Dimensions: Size: 3 x 2 x 1.4 in (7.6 X 5 X 3.6 cm) Weight: 6.5 oz (.18 kg) Digimano 1000 Standard Models: Model # Measurement Units & Range 200IN 199.9 mmHg / 199.9 inH2O 2000IN... -
Page 6: Controls And Indicators
GENERAL OPERATION SECTION 2 CONTROLS AND INDICATORS Display Screen ON/OFF Switch mmHG/PSI Switch Luer Lock Fitting (Female) DC Proportional Output Zero Adjustment Lead Screw Release Precision Adjust Luer Lock Fitting (Female) Barb Fitting Zero Square Digimano Pressure Meter Figure 1 Sphygmomanometer Calibration Verification Guideline... -
Page 7: Typical Calibration Setup
Sphygmomanometer Syringe Pressure Applicator Figure 2 TYPICAL CALIBRATION SET UP Place the cuff in a rigid enclosure such as a tin can. Using the inflation bulb pump unit to 200 mmHG and hold. Pressure should remain steady. If it does not stay steady go to Section 3 and use the same technique to determine where the system is leaking. -
Page 8: Troubleshooting The Calibration Setup
By turning the fine adjustment knob apply three values such as 50, 150 300 plus zero. Ensure that both the sphygmomanometer and digital pressure meter read within 3 mmHG of each other. Sphygmomanometer Digital Pressure Meter TEE Connector Silicon Tubing (b) Silicon Tubing (a) Silicon Tubing (c) Pressure Applicator Syringe... - Page 9 Do not readjust zero using the zero adjust on the digital meter, zero can only be adjusted when the unit is open to atmosphere. Maintaining A Steady Pressure Reading If the sphygmomanometer and the digital pressure meter will not stay steady your calibration set up is leaking.
