Assurance Emergency Lighting L -CEC Series Quick Manual

Quick Guide
Selecting and Wiring - Assurance L -CEC Series LED Emergency Drivers
BEFORE BEGINNING
•
Disconnect AC Power from the LED Luminaire.
•
Do not join the battery connector until installation is complete.

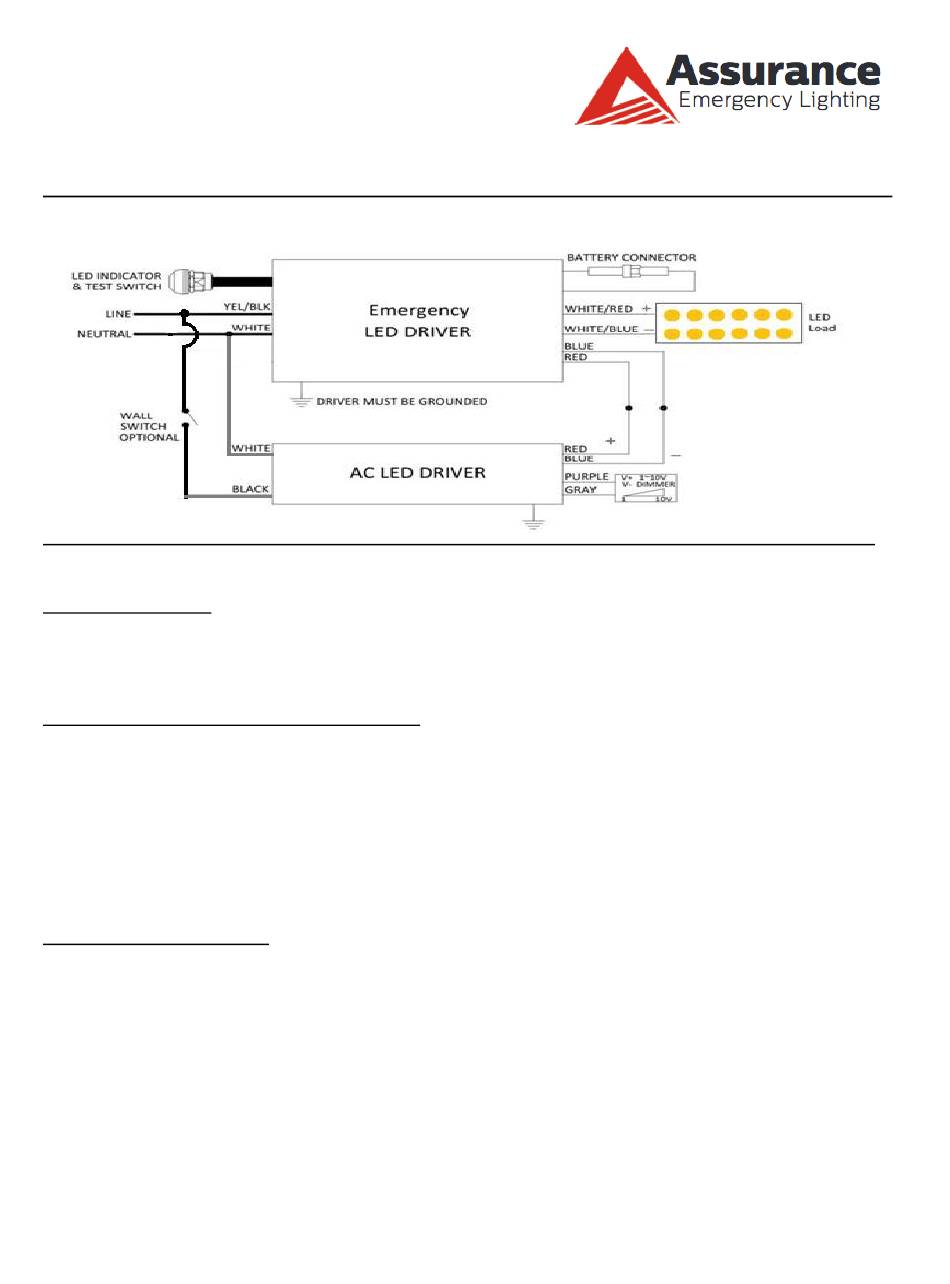

Step 1. LED Driver and LED Load Connections
•
Disconnect the Normal Driver from the LED Load.
•
Connect the Normal Driver to the Emergency Driver:
1. Connect the (+) red wire from the Emergency Driver to the (+) wire of the Normal Driver.
2. Connect the (-) blue wire from the Emergency Driver to the (-) wire of the Normal Driver.
3. Connect the (+) white/red wire from the Emergency Driver to the (+) input of the LED Load.
4. Connect the (-) white/blue wire from the Emergency Driver to the (-) input of the LED Load.
Step 2. Power Connections
•
Disconnect the incoming neutral wire from the Normal Driver
•
Connect the white wire from the Emergency Driver to the neutral of the Normal Driver and Line
Neutral.
•
Connect the yellow/black wire from the Emergency Driver to constant unswitched power from
the circuit panel.
•
Connect black wire from the Emergency Driver and the black wire of the Normal Driver to the
wall switch (optional) as shown on the diagram. The maximum line current for the luminaire(s)
can not exceed 5A. If total load current is greater than 5A contact factory for additional wiring
diagrams
