Assurance Emergency Lighting L10 Self Diagnostic Series Installation Instructions Manual

Emergency led driver, class 2 output only for nominal voltage series 15-55v

Advertisement

Quick Links

L10 Self Diagnostic Series - SD
L14 Self Diagnostic Series - SD
L20 Self Diagnostic Series - SD
Emergency LED Driver

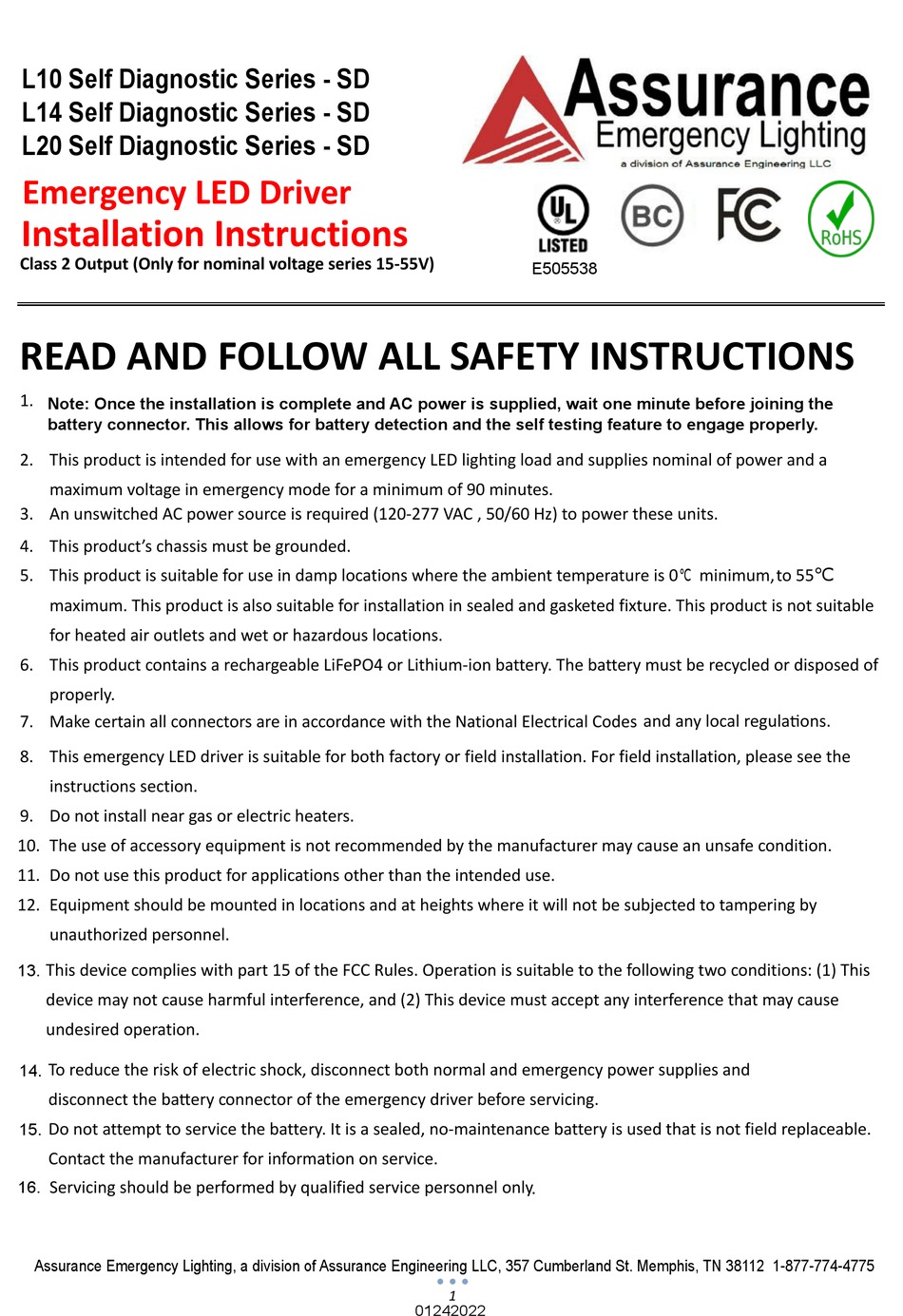

Installation Instructions
Class 2 Output (Only for nominal voltage series 15-55V)

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

1.
Note: Once the installation is complete and AC power is supplied, wait one minute before joining the
battery connector. This allows for battery detection and the self testing feature to engage properly.
2. This product is intended for use with an emergency LED lighting load and supplies nominal of power and a
maximum voltage in emergency mode for a minimum of 90 minutes.
3. An unswitched AC power source is required (120-277 VAC , 50/60 Hz) to power these units.
4. This product's chassis must be grounded.
5. This product is suitable for use in damp locations where the ambient temperature is 0
maximum. This product is also suitable for installation in sealed and gasketed fixture. This product is not suitable
for heated air outlets and wet or hazardous locations.
6. This product contains a rechargeable LiFePO4 or Lithium-ion battery. The battery must be recycled or disposed of
properly.
7. Make certain all connectors are in accordance with the National Electrical Codes and any local regula�ons.
8. This emergency LED driver is suitable for both factory or field installation. For field installation, please see the
instructions section.
9. Do not install near gas or electric heaters.
10. The use of accessory equipment is not recommended by the manufacturer may cause an unsafe condition.
11. Do not use this product for applications other than the intended use.
12. Equipment should be mounted in locations and at heights where it will not be subjected to tampering by
unauthorized personnel.
13.
This device complies with part 15 of the FCC Rules. Operation is suitable to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device must accept any interference that may cause
undesired operation.
14.
To reduce the risk of electric shock, disconnect both normal and emergency power supplies and
disconnect the ba�ery connector of the emergency driver before servicing.
15.
Do not attempt to service the battery. It is a sealed, no-maintenance battery is used that is not field replaceable.
Contact the manufacturer for information on service.
16.
Servicing should be performed by qualified service personnel only .
Assurance Emergency Lighting, a division of Assurance Engineering LLC, 357 Cumberland St. Memphis, TN 38112 1-877-774-4775
E505538
1
01242022
minimum,to 55℃
