Scala SC 7670 Instructions For Use Manual

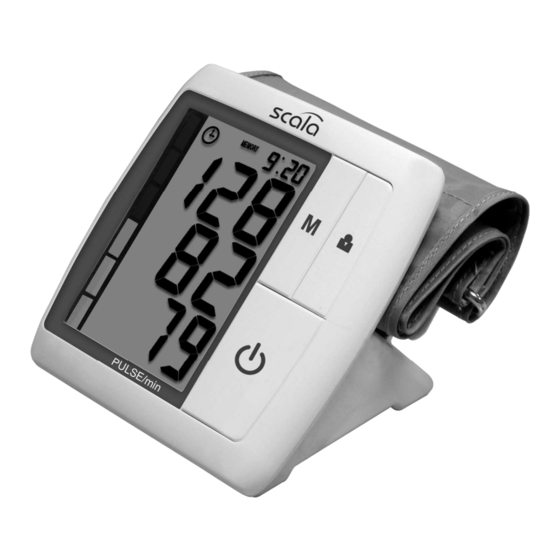

Blood pressure monitor automatic arm type
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Blood Pressure Monitor
Automatic Arm Type
SC 7670
GB
Instructions for use
Table of Contens
Precautions of use .....................................................
Product description and intended use ........................
About blood pressure .................................................
Device and display overview .......................................
Explanation of symbols ................................................
Insert the batteries .......................................................
Setting the clock ..........................................................
Taking a measurement ................................................
Memory function ..........................................................
Care and maintenance ................................................
Clean and disinfection ................................................
Trouble shooting .........................................................
Technical specifications ..............................................
Warranty ......................................................................
Precautions of use
WARNINGS:
1. Avoid prolonged over-inflation of the bladder to prevent
harmful physical injury.
2. If the cuff causes any discomfort during measurement, press
the POWER button to turn off the device immediately.
3. Pull off the Velco strap to detach the cuff if the cuff pressure
exceeds 300mmHg without an automatic rapid exhaust.
4. Keep blood pressure monitor (including cuff and batteries)
away from children to avoid misusing. Children should not use
the device without the supervision of an adult.
5. This manual and the product are not substitutes for visiting
the doctor. Neither the information contained herein nor this
product may be used to diagnose or treat health problems, or to
prescribe drugs. If you have or suspect that you have a medical
Page
2
5
5
8
9
10
10
11
11
12
13
13
14
15
15
16
GB-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC 7670 and is the answer not in the manual?

Questions and answers

Related Manuals for Scala SC 7670

Summary of Contents for Scala SC 7670

  • Page 1: Table Of Contents

    Blood Pressure Monitor Insert the batteries ............Automatic Arm Type Setting the clock ............Attaching the cuff and measuring posture ....SC 7670 Taking a measurement ..........Memory function ............Care and maintenance ..........Clean and disinfection ..........Trouble shooting ............
  • Page 2 problem, please seek immediate advice from your doctor. by a trained observer in accordance with the values achieved 6. Do not conduct any measurements if the temperature is low using the cuff/stethoscope auscultation method and are within (below +5°C) or high (over 40°C), or if the relative humidity is the specified EN 1060-4 standard limits.

  • Page 3: Product Description And Intended Use

    • What are the systolic and the diastolic pressure? Indcates a potentially hazardous situation, if not avoided, could result in death or serious injury. Systolic pressure represents the highest pressure during heart contraction and diastolic pressure is the lowest pressure while CAUTIONS: heart is resting.
  • Page 4 • Fluctuation and variation of blood pressure Device Overview Human blood pressure has a fluctuated characteristic and will vary 24 hours a day. Blood pressure measurement can be affected by the measurement position, posture, physiologic conditions as well as factors such as eating, bathing, exercising, smoking, drinking alcohol, stress mental tension, breathing, movement, temperature or humidity change, etc.

  • Page 5: Explanation Of Symbols

    Explanation of Symbols Power button Systolic Pressure RoHS Restriction of Hazardous Substances Diastolic Pressure Irregular Pulse Detection REACH symbol-Registration, Evaluation, Authorisation and Restriction of Chemicals Blue Follow operation instructions (REACH) is an EU regulation Symbol Manufacturer Preparation for Use • Insert the batteries Authorized Representative in the EU Before you use the BP monitor for the first time or when the Production period (month / year)

  • Page 6: Attaching The Cuff And Measuring Posture

    • Attaching the cuff and measuring posture 5. IPD (Irregular Pulse Detection): If irregular pulse is detected, the symbol is displayed. Cardiac arrhythmia is indicated 1. Check to be sure that the circumference of your upper arm when the period between two heart beats is 5/3 the time of the fits the cuff.

  • Page 7: Care And Maintenance

    Care and Maintenance 3. And store the device in a dry, clean and dust-free 1. Do not drop the device. It is not shock proof. environment at moderate temperatures of 5°C to 40°C. 2. Do not dissassamble or modify the device and cuff. Trouble shooting: 3.

  • Page 8: Technical Specifications

    14532 Stahnsdorf, Germany Battery life: approx. 250 measurements IP classification: IP20 (protected against intruding bodies Importer <12.5 mm; the product is not water- SCALA Electronic GmbH proof) Ruhlsdorfer Str. 95 14532 Stahnsdorf Specifications may change as technical improvements take place www.scala-electronic.de Warranty We grant a warranty of two years for the blood pressure monitor.
