Summary of Contents for Scala SC 7620

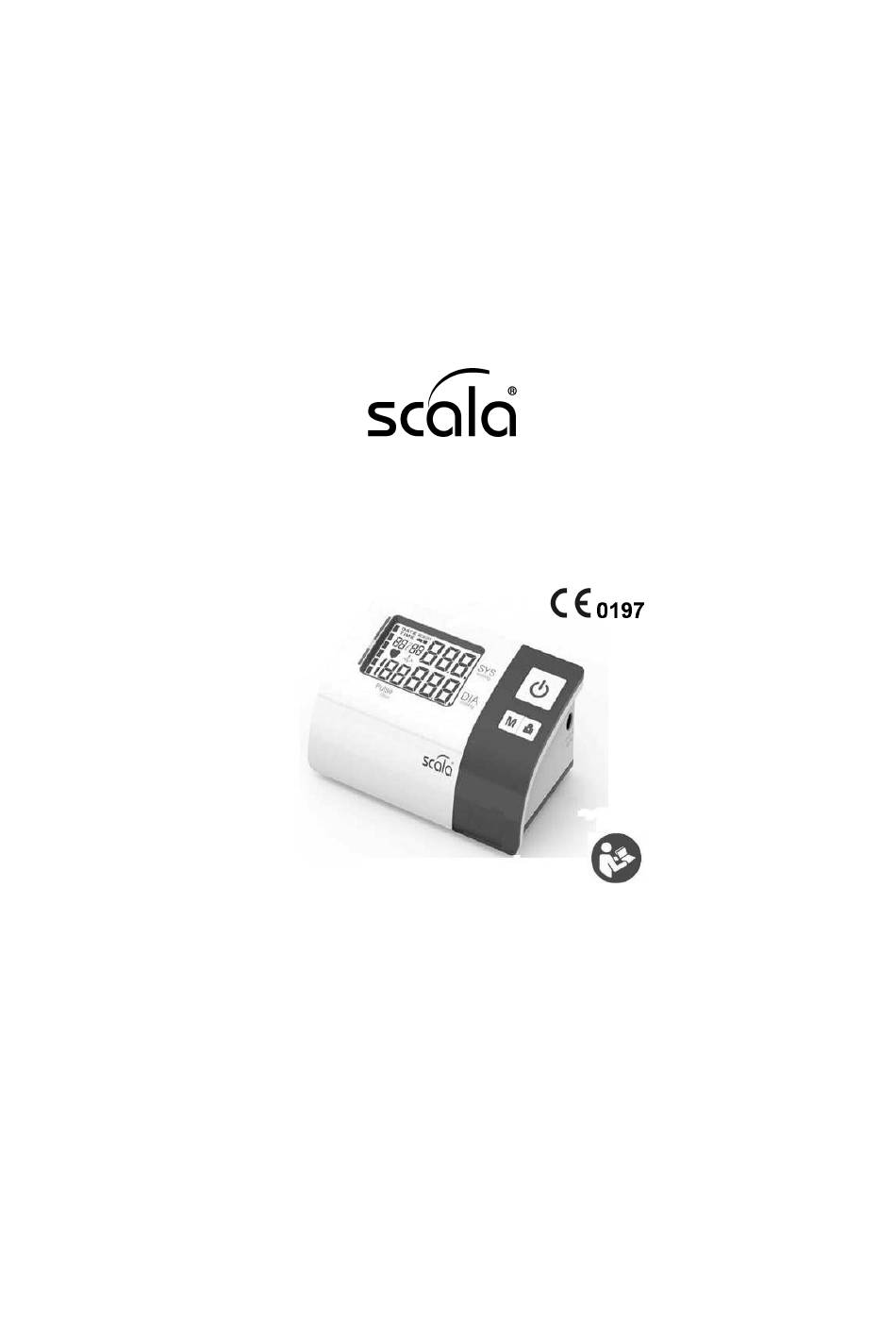

- Page 1 Blood Pressure Monitor Automatic Arm Type SC 7620 Instructions for use...
-
Page 2: Table Of Contents
Table of Contens Page Precautions of use ............. Product description and intended use ......About blood pressure ..........Device and display overview ........Explanation of symbols ..........Preparation for use Insert the batteries ............Setting the clock ............Attaching the cuff and measuring posture ....Taking a measurement .......... - Page 3 problem, please seek immediate advice from your doctor. 6. Do not conduct any measurements if the temperature is low (below +5°C) or high (over 40°C), or if the relative humidity is beyond the range of 15% to 90%, as this can lead to inaccurate readings.
- Page 4 by a trained observer in accordance with the values achieved using the cuff/stethoscope auscultation method and are within the specified EN 1060-4 standard limits. 17. Do not use this appliance on infants, children or persons who cannot express their own intentions. 18.
-
Page 5: Product Description And Intended Use
Indcates a potentially hazardous situation, if not avoided, could result in death or serious injury. CAUTIONS: 1. Read and follow the entire instruction manual before operating blood pressure monitor. 2. Do not press the POWER button if the cuff has not been properly wrapped. - Page 6 • What are the systolic and the diastolic pressure? Systolic pressure represents the highest pressure during heart contraction and diastolic pressure is the lowest pressure while heart is resting. WHO-ISH classification Your blood pressure measurement can be compared with classification categories defined by 1999 World Health Organization - International Society of Hypertension Guidelines for Management of Hypertension for preliminary evaluation.
- Page 7 Fluctuation and variation of blood pressure Human blood pressure has a fluctuated characteristic and will vary 24 hours a day. Blood pressure measurement can be affected by the measurement position, posture, physiologic conditions as well as factors such as eating, bathing, exercising, smoking, drinking alcohol, stress mental tension, breathing, movement, temperature or humidity change, etc.
-
Page 8: Device And Display Overview
Device Overview The delivery includes: The blood pressure monitor, the cuff, 4 alkali batteries (LR03), a storage bag or box and the instruction manual. Display Overview... -
Page 9: Explanation Of Symbols
Explanation of Symbols Systolic Pressure Diastolic Pressure Irregular Pulse Detection Blue Follow operation instructions Symbol Manufacturer Authorized Representative in the EU Production period (month / year) Serial Number Type BF Applied Part Keep dry CE marking with the Registration Number of the Notified Body. -
Page 10: Preparation For Use Insert The Batteries
Power button RoHS Restriction of Hazardous Substances REACH symbol-Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) is an EU regulation Preparation for Use Insert the batteries Before you use the BP monitor for the first time or when the symbol “ "... -
Page 11: Attaching The Cuff And Measuring Posture
4. Following the date and time setting, the clock display function can be set by pressing POWER button for adjustment ON/OFF in "CL" shows status and confirmed by MEMORY button. Following clock function enable, the alarm function can be set by pressing POWER button for adjustment ON/OFF in "AL1"... -
Page 12: Memory Function
2. Press the POWER button to start automatic measurement. The measurement can be interrupted anytime by pressing the POWER button again. 3. When the measurement is completed, the systolic pressure, diastolic pressure and pulse rate will be displayed. 4. The display will also indicate which category your blood pressure reading belongs to according to classification defined in 1999 WHO-ISH Guidelines for Management of Hypertension. -
Page 13: Care And Maintenance
• Deleting a blood pressure value from the memory With the MEMORY button, go to the blood pressure value which you want to delete. Instantly press and hold (at least 4 seconds!!!) the POWER button and the display will show: dEL (delete) and the number of the memory location. -
Page 14: Trouble Shooting
the chemical residues remaining on the device. 3. If necessary repeat step 1 to step 2 in order to make sure the device was clean. 4. A final wipe down by a clean wiper is necessary to avoid water stains. Disinfection process 1. -
Page 15: Technical Specifications
Technical specifications Measuring range: Pressure: 20 ~ 300 mmHg Heart rate: 40 ~ 200 bpm Accuracy: Pressure: 3 mmHg Heart rate: ± 5% of the measuring value Measuring method: Oscillometric measurement Automatic off: 150 seconds after the last press of a button Memory: 2 x 50 sets Dimensions:... -
Page 16: Disposal Note
K-jump Health Co., Ltd., No.56, Wu Kung 5th Rd. New Taipei Industrial Park, New Taipei City, 24890 Taiwan Polygreen Germany GmbH Ruhlsdorfer Str. 95 14532 Stahnsdorf, Germany Importer SCALA Electronic GmbH Ruhlsdorfer Str. 95 14532 Stahnsdorf www.scala-electronic.de Rev. 23/11/2020/GB...
