Altronix NetWay112X Installation Manual page 3

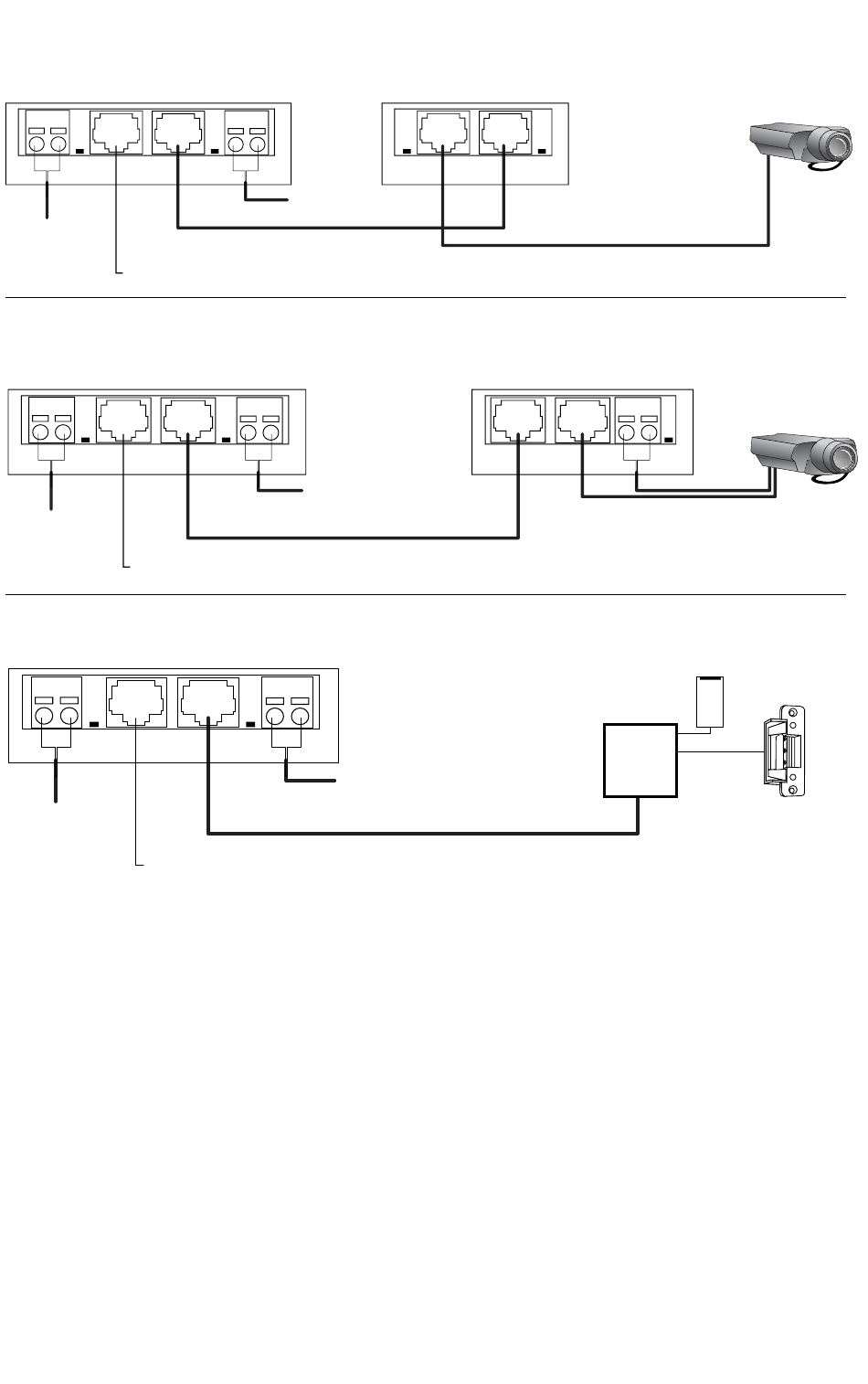

Fig. 3 - Extending Data Range utilizing NetWayXTX Extender
(refer to NetWayXTX Installation Instructions).
Netway112X
Power
Input
Network Switch
Fig. 4 - Powering 12VDC IP Camera utilizing NetWay3012 Adapter
(refer to NetWay3012 Installation Instructions)
Netway112X
Power
Input
Network Switch
Fig. 5 - IP Access Control Deployment
Netway112X
Power
Input
Network Switch
NetWay112X
Typical Applications:
NetwayXTX
Port
shutdown
input
up to 100m
Port
shutdown
input
up to 100m
Port
shutdown
input
up to 100m
Additional 100m
Netway3012
HID
Solo Edge
Device
PoE/PoE+ Camera
12VDC Camera
Card
Reader
Electric
Strike
- 3 -
