Burkert 2101 Operating Instructions Manual

Burkert 2101 Operating Instructions Manual

2/2 way globe valve
Hide thumbs Also See for 2101:
Table of Contents

Advertisement

Quick Links

Download this manual

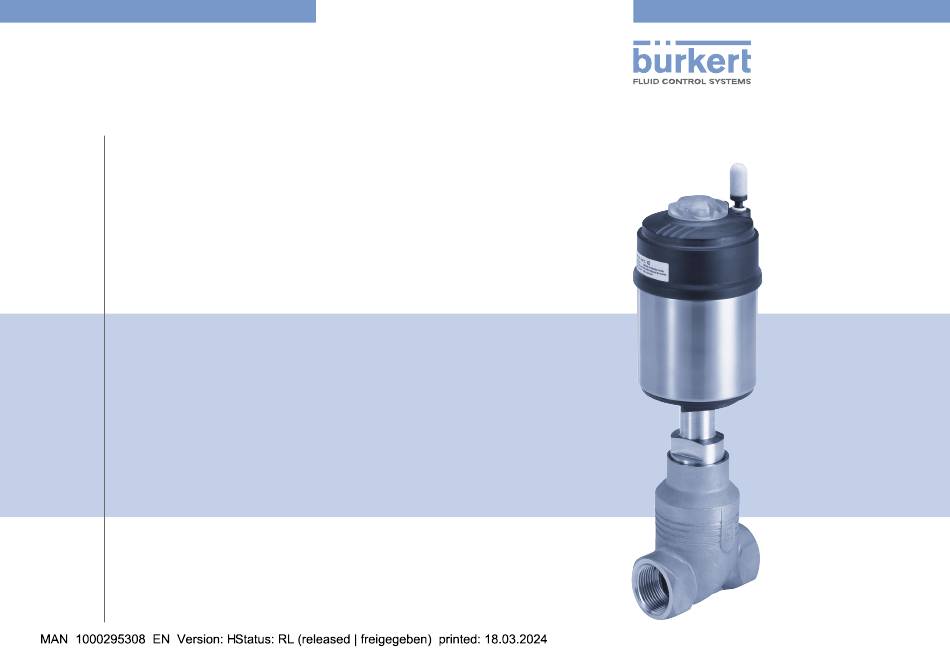

Type
2101
2/2 way globe valve
2/2-Wege-Geradsitzventil
Vanne à siège droit 2/2 voies
Operating Instructions
Bedienungsanleitung
Manuel d'utilisation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2101 and is the answer not in the manual?

Questions and answers

Related Manuals for Burkert 2101

Summary of Contents for Burkert 2101

  • Page 1 Type 2101 2/2 way globe valve 2/2-Wege-Geradsitzventil Vanne à siège droit 2/2 voies Operating Instructions Bedienungsanleitung Manuel d‘utilisation...
  • Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert Werke GmbH & Co. KG, 2008 - 2024 Operating Instructions 2403/14_EU-ML_00806076 / Original DE...

  • Page 3: Table Of Contents

    Type 2101 Contents OPERATING INSTRUCTIONS ..........4 INSTALLATION ..............18 Symbols ............... 4 Notes on installation ..........18 1.2 Definition of terms/abbreviations ........ 4 8.2 Before installation ............18 Installation ..............20 INTENDED USE ..............5 Pneumatic connection ..........22 BASIC SAFETY INSTRUCTIONS .......... 5 Start-up ..............

  • Page 4: Operating Instructions

    → Designates a procedure which you must carry out. Symbols Definition of terms/abbreviations DANGER Term Definition for these instructions Warning of an immediate danger. ▶ Device 2/2-was globe valve Type 2101 Failure to comply will result in death or serious injury. In these instructions, the unit bar stands for relative pressure. The absolute pressure is WARNING stated separately in bar(abs). Warns of a potential danger. ▶ Failure to observe these warnings may result in serious injuries or death.

  • Page 5: Intended Use

    Type 2101 Intended use INTENDED USE BASIC SAFETY INSTRUCTIONS Unauthorised use of the Type 2101 globe valve may be dan- These safety instructions do not take into account any unforeseen gerous to people, nearby equipment and the environment. circumstances or events that occur during installation, operation ▶ The device is designed to control the flow of liquid and gas- and maintenance. The operator is responsible for observing eous media.
  • Page 6 Type 2101 Basic safety instructions WARNING General hazardous situations. To prevent injuries, observe the following: Danger due to loud noises. ▶ Secure device or system to prevent unintentional activation. ▶ Depending on the usage conditions, the device may generate loud ▶ Only trained technicians may perform installation and main- noises. Detailed information on the probability of loud noises is tenance work. available from the respective sales department. ▶ Perform installation work and maintenance work using suitable ▶ Wear hearing protection when in the vicinity of the device. tools only. ▶ Following interruption of the process, ensure that the CAUTION process is restarted in a controlled manner. Observe the...

  • Page 7: General Notes

    Type 2101 General notes GENERAL NOTES PRODUCT DESCRIPTION Contact addresses General description The 2/2-way globe valve Type 2101 is suitable for liquid and gaseous Germany media. Using neutral gases or air (control media), it controls the Bürkert Fluid Control Systems flow of water, alcohol, oil, fuel, hydraulic fluid, saline solution, lye, Sales Center organic solvents and vapour (flow media). Christian-Bürkert-Str. 13–17 One special characteristic of the globe valves is the screwed-in D-74653 Ingelfingen seats, which can be used to reduce the seat size. Tel. +49 (0) 7940 - 10 91 111 Fax +49 (0) 7940 - 10 91 448 Definition DN E-mail: info@burkert.com...

  • Page 8: Intended Area Of Application

    Intended area of application Actuator bottom Observe the maximum pressure range on the type label! Relief bore • Body connection with • For neutral gases and liquids up to 40 bar. wrench flat • Steam up to 230 °C. Valve body • Hot water up to 200 °C. Flow direction arrow or digits for • Aggressive media. indicating the flow direction Port connection Fig. 1: Structure and description, globe valve type 2101 english...

  • Page 9: Function

    ▶ To ensure a controlled restart of the device, first apply pilot Valve body pressure and then activate the medium. Port connection Control function A (CFA) 2(A) Flow direction arrow or digits for Closed by spring force in rest position indicating the flow direction 1(P) Fig. 2: Structure and description, globe valve type 2101, Control function B (CFB) 2(B) actuator size 225 Opened by spring force in rest position 1(P) Control function I (CFI) 2(A) Actuating function via reciprocal pressurisation. 1(P)
  • Page 10 Type 2101 Structure and function 6.2.2 Flow direction below seat 6.2.3 Flow direction above the seat Depending on the variant, the valve is closed against the medium The valve is closed with the medium flow via spring force (control flow either with spring force (control function A, CFA) or pilot function A, CFA). Because the operating pressure is above the swivel plate, it helps the valve close and also contributes to pressure (control function B or I, CFB or CFI). sealing the valve seat. The valve opens via pilot pressure. As the medium is present under the swivel plate, the operating pressure contributes to the opening of the valve. WARNING WARNING Risk of injury from pressure surge. Valve leak if there is too little minimum pilot pressure or high A pressure surge could cause lines and the device to burst.

  • Page 11: Technical Data

    (port connection) fluids of Group 1 (dangerous gases and CE marking Control function vapours according to Art. 3, No. 1.3, (CF) letter a, first dash) Type DN65 15 bar 2101 A PTFE Kv19.5 DN80 12.5 bar PS 8,5bar Tmed -10°C - +185°C Made in Germany DN100 10 bar Flow 1 2 see manual for derating W17AL 00253282...

  • Page 12: Conversion Of Actuator Size

    Type 2101 Technical data Conversion of actuator size Derating pressure and temperature ranges Usage limits of the valve (derating operating pressure) Actuator size Designation Outer diameter Scale [mm] A [mm] drawing Temperature Operating pressure 64.5 PN25 PN40 –10...+50  °C 25 bar 40 bar 100 °C 24.5 bar 39,2 bar 150 °C 22.4 bar 200 °C 20.3 bar...
  • Page 13 Type 2101 Technical data Operating pressure for control function A, flow direction below seat (standard): Maximum operating pressure [bar] Actuator size ø [mm] 25/40 80 100 120 140 160 180 200 220 25/40 °C Medium temperature [ Fig. 6: Derating Element ANTG 50, 70, 90, 130 7.4.2...
  • Page 14 Type 2101 Technical data Pilot pressure for control function A, flow direction below seat Operating pressure and pilot pressure for control function A, (standard): flow direction below seat, reduced spring force (EC04) Minimum pilot pressure Maximum operating pressure Minimum pilot pressure [bar] [bar] [bar] Actuator size ø...
  • Page 15 Type 2101 Technical data Required minimum control pressure depending on the Control function A, flow direction above the seat operating pressure ø 70 In the following graphs the required minimum control pressure is CFA above shown for control functions A, B and I depending on the oper- seat ating pressure. Control function A, flow direction above the seat ø 50 CFA above seat Pilot pressure [bar] Fig.
  • Page 16 Type 2101 Technical data Control function B and I, flow direction below seat Ø90 CFB/CFI ø 50 DN25 CFB/CFI DN20 DN25 DN15 DN50 DN32 DN40 Pilot pressure [bar] Fig. 12: Pressure diagram, actuator ø 90 mm, control function B and I, Fig. 10: Pressure diagram, actuator ø 50 mm, control function B and I,...

  • Page 17: General Technical Data

    Type 2101 Technical data Materials Ø225 Valve body 316L Actuator PPS and Edelstahl Sealing elements FKM and EPDM Spindle seal PTFE V-rings with spring compen- sation (with silicone grease) Seat seal PTFE (NBR, EPDM, FKM, PEEK on request) Spindle 1.4401 / 1.4404 Pilot pressure [bar] Spindle guide up to DN65 PEEK Fig. 14: Pressure diagram, actuator ø 225 mm, control function B, flow Spindle guide from DN80 1.4401 / 1.4404...

  • Page 18: Installation

    Type 2101 Installation INSTALLATION NOTE Loose screw connection of the valve body connection with WARNING high mechanical stress. Risk of injury due to improper installation. If the pipeline is subject to high mechanical stress (vibrations), the ▶ Installation may only be carried out by qualified personnel screw connection on the valve body connection must be checked using suitable tools.
  • Page 19 Type 2101 Installation 8.2.2 Removing actuator from the valve body Exhaust port CFA, CFB For devices with welded connection Pilot air port NOTE For valves with a mounted control unit: Actuator When welding the valve body into the pipeline, the control unit Pilot air port must not be installed. CFA, CFB, CFI ▶ Uninstall the control unit from the actuator (see chapter on installation in the operating instructions of the corresponding control unit).

  • Page 20: Installation

    Type 2101 Installation Installation 8.3.2 Install actuator (welded connection) WARNING! Risk of injury due to improper installation! Seal Failure to observe the tightening torque value is dangerous due to the risk of damage to the device. ▶ Use an open-end wrench for installation, never a pipe wrench. Fig. 16: Seal ▶ Observe tightening torque (see “Tab. 10: Tightening torques → Check seal and replace. for body connection”). WARNING Dirt trap for devices with approval according to DIN EN 161 According to DIN EN 161 "Automatic shut-off valves for gas...
  • Page 21 Type 2101 Installation 8.3.3 Install control unit Exhaust port CFA, CFB For a description see chapter "Installation" in the operating pilot air port instructions for the corresponding control unit. 8.3.4 Turning actuator Pilot air port CFA, CFB, CFI The position of the ports can be seamlessly aligned by turning the actuator 360°. Fig. 17: Ports NOTE DN connection (valve Tightening torque for body con- Damage to the seat seal or seat contour.

  • Page 22: Pneumatic Connection

    Type 2101 Installation Pneumatic connection Open-end wrench DANGER Risk of injury from high pressure in the system. ▶ Before loosening lines and valves, turn off the pressure and vent the lines. Hexagon WARNING Risk of injury due to unsuitable connection hoses. Hoses that cannot withstand the pressure and temperature Fig. 18: Turning actuator range can cause hazardous situations. ▶ Only use hoses that are permitted for the specified pressure and temperature range.

  • Page 23: Start-Up

    Type 2101 Installation 8.4.1 Connecting the control medium Control function I: → Connect control medium to pilot air port 1 and 2 of the If the position of the pilot air ports is unfavourable for actuator (see “Fig. 17: Ports”) installing the hoses, these can be seamlessly aligned by Pressure on pilot air port 1 opens the valve. rotating the actuator by 360°. Pressure on pilot air port 2 closes the valve. The procedure is described in chapter “8.3.3 Install control unit”. Exhaust port Exhaust port CF A, CF B CF A, CF B Pilot air port Pilot air port CF I CF I Pilot air port Pilot air port CF A, CF B, CF I...

  • Page 24: Disassembly

    Type 2101 Maintenance, cleaning Disassembly MAINTENANCE, CLEANING DANGER DANGER Risk of injury from discharge of pressure and escaping Risk of injury from high pressure in the system. medium. ▶ Before loosening lines and valves, turn off the pressure and vent the lines. Dismantling a device which is under pressure is hazardous due to a sudden discharge of pressure or escaping medium. Risk of injury from electric shock. ▶ Before disassembly, shut off the pressure and vent all lines.

  • Page 25: Maintenance Work

    Type 2101 Maintenance, cleaning Visual inspection: WARNING According to the usage conditions, perform regular visual For control function I – risk of pilot pressure failure. inspections: With control function I, the control unit and reset are pneumatic. → Check medium ports for tightness. No defined position is reached during a pressure failure. → Check relief bore on the pipe for leaks. ▶ To ensure a controlled restart of the device, first apply pilot pressure and then activate the medium. Risk of injury due to moving parts in the device.

  • Page 26: Replacing Wearing Parts

    Type 2101 Maintenance, cleaning 10.2 Replacing wearing parts Remove actuator from the valve body: → Clamp valve body in a collet (only for valves which have not 10.2.1 Replacing the valve seat yet been installed). The valve set consists of NOTE • swivel plate with seal Damage to the seat seal or seat contour • pin ▶ When removing the actuator, the valve must be in the open position.
  • Page 27 Type 2101 Maintenance, cleaning → Connect new swivel plate to the spindle. Replacing valve set → Align boreholes in the swivel plate and spindle. → Support swivel plate on the cylindrical part using a prism or something similar. → Insert pin into the borehole. Spindle → Caulk pin boreholes on both sides of the swivel plate using a chisel or centre punch. Installing actuator on valve body Swivel plate → Replace the seal if necessary. WARNING Risk due to incorrect lubricants. Seal Unsuitable lubricant may contaminate the medium. There is a risk of explosion in oxygen applications! Fig. 24: Valve set ▶...
  • Page 28 Type 2101 Maintenance, cleaning NOTE DN connection (valve Tightening torque for body connection body) [Nm] Damage to the seat seal or seat contour. ▶ When installing the actuator, the valve must be in the open 45 ± 3 position. 50 ± 3 60 ± 3 → For control function A and I pressurise the pilot air port 1 with compressed air (5 bar): Valve opens. 65 ± 3 → Screw actuator into the valve body. Observe tightening torque (see “Tab. 10: Tightening torques for body connection”). 70 ± 3 100 ± 3 Exhaust port 120 ± 5...
  • Page 29 Type 2101 Maintenance, cleaning 10.2.2 Replacing the valve seat set → Replace the valve seat as described below when the actuator is removed. The actuator must be uninstalled when replacing the valve seat. Replacing valve seat The necessary steps are described in chapter “10.2.1 → Use the assembly tool (with suitable tool attachment) and a Replacing the valve seat” on page 26 . wrench to unscrew the old valve seat. → Clean the body thread and seal surface with compressed air. The valve seat set consists of → Attach a new valve seat to the assembly tool. • valve seat • O-ring (depending on variant) • seal •...
  • Page 30 Type 2101 Maintenance, cleaning Install actuator (with control unit) on the valve body WARNING → Replace the seal if necessary. Danger due to incorrect lubricants. WARNING Unsuitable lubricant may contaminate the medium. There is a risk of explosion in oxygen applications. Danger due to incorrect lubricants. ▶ For specific applications, e.g. oxygen or a nalysis applications, Unsuitable lubricant may contaminate the medium. There is a...
  • Page 31 Type 2101 Maintenance, cleaning 10.2.3 Replacing the packing gland Pilot air port For device combination ø 70/DN50, replacing the packing gland will be possible as of series-production Pilot air port status January 2017. Fig. 27: Ports The seal set for the packing gland includes DN connection (valve Tightening torque for body connection SP10/SP14 body) [Nm] • 1 support ring 45 ± 3 • 7 chevron seals 50 ± 3 • 2 thrust collars 60 ± 3...
  • Page 32 Type 2101 Maintenance, cleaning Removing actuator from the valve body DANGER → Clamp valve body in a collet (only for valves which have not Risk of injury from discharge of pressure and escaping medium. yet been installed). Dismantling a device which is under pressure is hazardous due NOTE to a sudden discharge of pressure or escaping medium. Damage to the seat seal or seat contour. ▶ Before disassembly, shut off the pressure and vent all lines. ▶ When removing the actuator, the valve must be in the open position.
  • Page 33 Type 2101 Maintenance, cleaning Removing swivel plate Replacing packing gland → Knock out pin using a suitable pin punch. Packing gland tube Pin punch ø 3 mm, for 10 mm spindle diameter on the swivel plate. Packing Pin punch ø 5 mm, for 14 mm spindle diameter on the swivel gland plate. Spindle guide Pin punch ø 7 mm, for 22 mm spindle diameter on the swivel plate. Spindle → Remove swivel plate. Installation wrench Series-production status up to January 2013...
  • Page 34 Type 2101 Maintenance, cleaning Fig. 31: Changing packing gland SP10/SP14 (series-production status as of January 2013) WARNING Risk of injury due to parts being ejected. Packing gland tube When the spindle opening is exposed, the individual parts of the Packing packing gland will be pressed out at an undefined speed when gland the pilot air port is pressurised. Spacer ▶ Before pressurising with pilot air, safeguard the area around Spindle the outlet, (e.g. place spindle on a firm surface). VA spindle guide →...
  • Page 35 Type 2101 Maintenance, cleaning Installing swivel plate Support ring → Connect swivel plate to the spindle. Upper chevron seals → Align boreholes in the swivel plate and spindle. Upper thrust collar → Support swivel plate on the cylindrical part using a prism or Compression spring something similar. → Insert pin into the borehole. Lower thrust collar → Caulk pin boreholes on both sides of the swivel plate using a Lower chevron seals chisel or centre punch. Spacer Spindle guide VA spindle guide Spindle SP10/SP14 SP22 Fig. 33: Seal set for packing gland...

  • Page 36: Faults

    Type 2101 Maintenance, cleaning FAULTS Fault Elimination Valve is not tight Dirt between seal and valve seat Fault Elimination → Install dirt trap Actuator does Pilot air port interchanged not switch Valve seat seal worn → Connect pilot air port 1 → Install new swivel plate → Connect pilot air port 1 Flow direction interchanged → Pilot air port 1: open →...

  • Page 37: Spare Parts

    Type 2101 Spare parts SPARE PARTS Valve set (PTFE seal) Orifice DN Order number WARNING 149 606 Risk of injury when opening the actuator. 011 171 The actuator contains a spring under tension. The spring that 160 737 ejects when the actuator opens may cause injuries. 011 208 ▶ The actuator must not be opened. 011 209 CAUTION 216 431...
  • Page 38 Type 2101 Spare parts Valve seat set Seal set for packing gland Order Order number Includes: valve seat, O-ring (depending on variant), seal Order number high-tem- Orifice DN Order number Actuator number Body DN Water perature size Standard 262152 outlet (up outlet (up to variant to 200 °C) 230 °C) 262157 ø 50...

  • Page 39: Installation Tools

    Type 2101 Spare parts 6 S eal set for packing 1 Seal Modified socket wrench for packing gland gland SP22 (series-production status as of January 2013) 2 Swivel plate Valve set 7 VA spindle guide Socket wrench Order number 3 Pin SP22 Spindle ø 15–50 683 221 4 Valve seat 10 mm...

  • Page 40: Transport, Storage, Packaging

    Type 2101 Spare parts TRANSPORT, STORAGE, PACKAGING CAUTION Risk of injury due to heavy device. During transportation or installation work, a heavy device may fall down and cause injuries. ▶ Heavy equipment must only be transported, assembled and disassembled with the help of a second person. ▶ Use suitable tools. NOTE Damage in transit due to inadequately protected devices.
  • Page 41 country.burkert.com...
