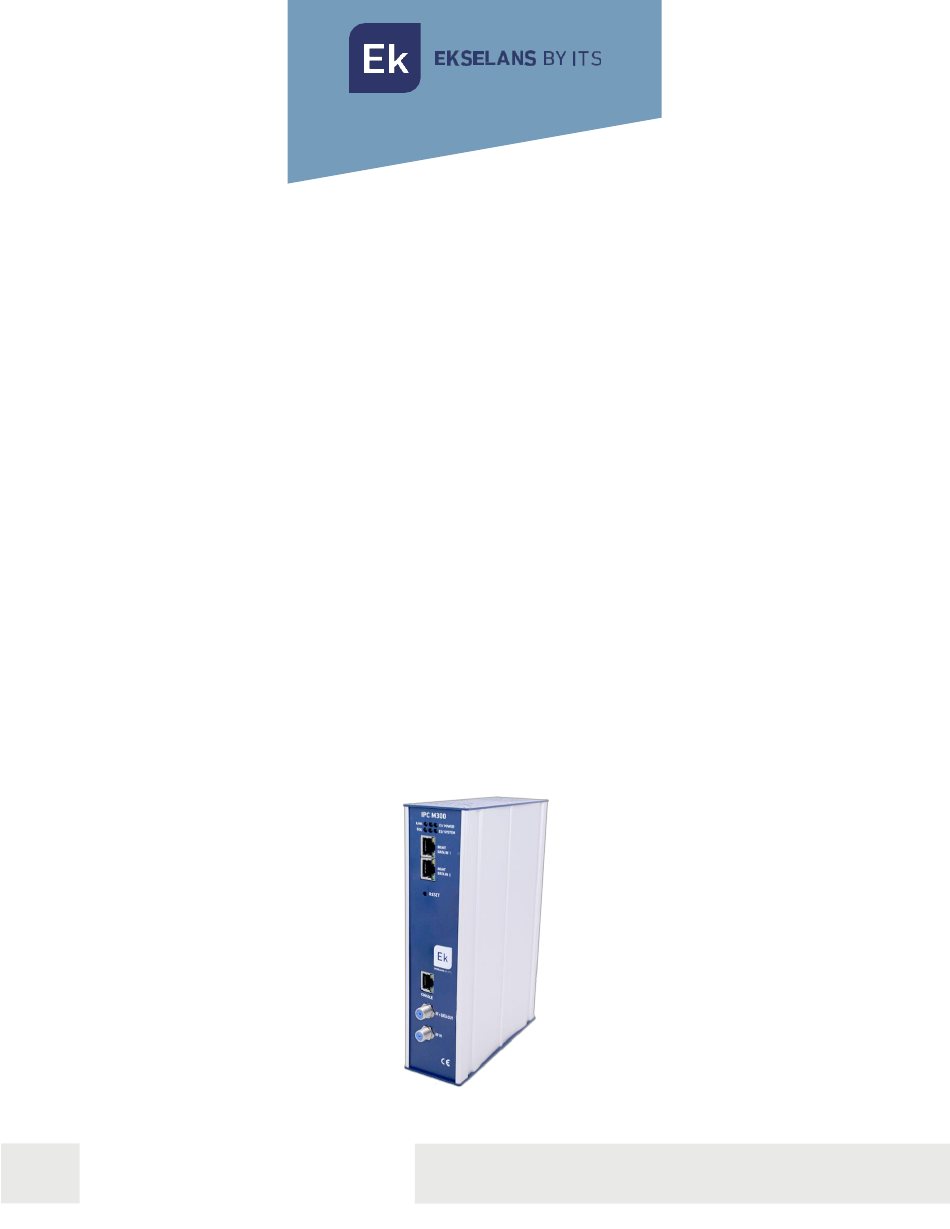

- Page 1 USER MANUAL IPC M300 250019 Internet by coaxial ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
USER MANUAL IPC M300 TABLE OF CONTENTS IPC M300 ............................................... 3 Installation Diagram ..........................................3 Connection to the IPC M300 ......................................4 Interface ................................................. 5 EoC Manage ............................................... 5 Working channel ..........................................6 Auto VID ..............................................6 CNU list ..............................................7 Slave template .......................................... -
Page 3: Ipc M300
USER MANUAL IPC M300 IPC M300 -LED: LEDs specify the following; LINK if any equipment is connected, POWER if there is power, EOC if the RF chip is correct, SYSTEM the system status. E1 and E2 displays the traffic status of the DATA IN 1 and -MGMT/DATA IN X: This port enables the internet traffic to proceed and to be connected to the equipment via the IP - 192.168.1.254. -
Page 4: Connection To The Ipc M300
USER MANUAL IPC M300 Connection to the IPC M300 For connection to the IPC M300, follow the steps specified below: Connect to the IPC M300 using a network cable or wirelessly. Configure the PC's network adapter using a static IP. In order to become easy the configuration, EK have the application Ek NET Adapter, you will be able to configure the network adapter easily. -
Page 5: Interface
USER MANUAL IPC M300 Interface EoC Manage In this menu everything related to the slaves/user equipment which is connected to the master unit may be managed. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·... -
Page 6: Working Channel
USER MANUAL IPC M300 Working channel Establishes the method of communication from master to slave. If there is a problem when linking the slave with the master, no link may be made due to this option. If there is any problem the following configuration may be installed: Auto VID The default VLAN for the different ports of the master can be automatically set here. -
Page 7: Cnu List
USER MANUAL IPC M300 CNU list Displays all the equipment connected to the master. If any template is configured, the enable template option may be selected and then to apply the template to the equipment that is wished to be configured. Furthermore, if an individual configuration is wished to be made in the Action column, click on the "Mana"... - Page 8 USER MANUAL IPC M300 Signal Displays the slave's RF signal levels Edit Enables to identify the slave and its basic information. Limits the equipment's overall bandwidth and in the Interface section the desired interfaces can be added or configured. The different menus - LAN, WLAN and if the equipment is AC - the WIFI 5G menu, then their respective options can be configured.
- Page 9 USER MANUAL IPC M300 More than one WAN may be added if it is required to make use of additional services otherwise the existing WAN will be modified by establishing as to whether the equipment operates in Bridge or Router mode.
-
Page 10: Slave Template
USER MANUAL IPC M300 WLAN In this section up to 4 SSID, with their respective parameters may be configured. Once these changes are completed, the changes will be implemented. Slave template The general template may be configured here which can be applied to the equipment. The previous section clearly describes how to implement a template and the different elements comprising same. -
Page 11: Setup And Sync
USER MANUAL IPC M300 Setup and Sync This option describes the configuration address. From master to slave: As its name implies the configuration which will prevail is that of the master over slave From slave to master: The configuration which prevails here is that of the slave. This mode is used when the master will not be utilised. -
Page 12: System Management
USER MANUAL IPC M300 System management • System information: Provides information as regards the system, identifies the equipment with name and location. • Save configuration: Menu for saving the latest settings. • Export configuration: Exports the master's configuration. • Restore default: Restores the master to factory default settings. •... -
Page 13: Device Management
USER MANUAL IPC M300 Device management The create button enables adding the VLANs that the Master will process. If the VLANs are not added and linked to the ports, their traffic will not proceed. An IP for the master in each VLAN may be assigned. The output signal level may be adjusted.
