Summary of Contents for Lindsay Broadband LBDG-1004

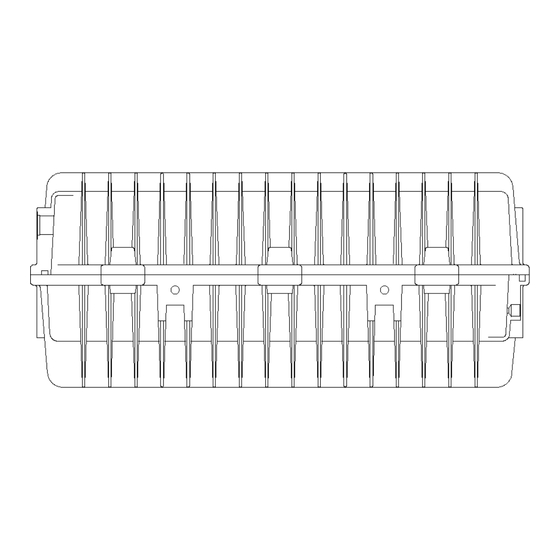

- Page 1 LBDG-1004 LBDG-1004 Strand Mount DOCSIS 3.0 4-Port PoE Gateway Installation Guide...
- Page 2 LBDG-1004 IMPORTANT SAFETY AND INSTALLATION WARNINGS WARNING: ATTEMPT TO SERVICE THIS PRODUCT YOURSELF AS OPENING OR REMOVING COVERS MAY EXPOSE YOU TO DANGEROUS VOLTAGES OR OTHER HAZARDS. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. MOUNTING: Mount this product only as described in the installation instructions, otherwise it may fall causing serious personal injury and/or damage to the device.
-
Page 3: Replacement Parts
Unauthorized substitutions may result in fire, electric shock or other hazards. SERVICE DEPOT: Canada: Lindsay Broadband Inc., 2035 Fisher Dr., R.R. #5 Peterborough, Ontario K9J 6X6 (705) 742-1350... -
Page 4: General Description
LBDG-1004 1.1 Introduction This manual is written to help service perso nnel understand and install the Lindsay LBDG-1004 DOCSIS 3.0 4-Port PoE Gateway. This first section gives a block diagram and a full product description. The remaining sections provide component... -
Page 5: Major Components
LBDG-1004 1.3 PoE Capability The Gateway can deliver up to 25W per port. It is compatible with any 48V device that accepts 802.3af, 802.3at or passive PoE (Passive PoE devices must accept power using pins 4 & 5 for +V and pins 7 & 8 for -V). Power is non- isolated. -
Page 6: Interface Board
LBDG-1004 1.6 Interface Board The interface circuit board, which is located in the housing base, provides the interface to the HFC network. The following features are provided: An AC/RF filter is used to separate the AC power from the RF carriers. - Page 7 LBDG-1004 SECTION 2 COMPONENTS IDENTIFICACION SURGE CABLE WEATHER ARRESTOR INTERRUPT MODEM SEAL HFC INPUT 4-PORT PoE SWITCH UPSTREAM & DOWNSTREAM PADS ETHERNET GigE PORT 4 -20dB (RJ45) F CONNECTOR TEST POINT ETHERNET GigE PORT 3 (RJ45) INTERFACE BOARD ETHERNET GigE...
-
Page 8: Section 3 Installation
LBDG-1004 SECTION 3 INSTALLATION Installation of the LBDG-1004 DOCSIS 3.0 Gateway is similar to the installation of a line extender or any other piece of CATV equipment. The DOCSIS Gateway can be connected to a power-passing coupler or splitter. Call Lindsay Broadband for the recommended power insertion device for your application. -
Page 9: Installation Diagrams
LBDG-1004 3.2 Installation Diagrams Strand Mount Strand Mount with Hanger Brackets 3.3 Power Requirements The DOCSIS 3.0 Gateway can be connected to any power passing splitter or coupler. The following formula can be used to calculate the current draw for your installation:... - Page 10 LBDG-1004 3.4 Installation 1. Pull the AC interrupt in the power-passing coupler or splitter. 2. Using the diagrams in this section as a guide, mount the Gateway at its final location. If using hanger brackets, the existing strand clamps should be lef t in place to act as spacers allowing the same bolts to be used.
-
Page 11: Ethernet Cable Installation
12. Tape all connections to reduce moisture intake. 3.5 Ethernet Cable Installation The external RJ45 connectors on the Lindsay LBDG-1004 Gateway provide IP68 weather-tight connections. Cables that are pre-terminated with an RJ45 connector can be used. No tools are required. -
Page 12: Top View
LBDG-1004 SECTION 4 LBDG-1004 HOUSING DIMENSIONS 4.1 Housing Dimensions TOP VIEW 16.375” 9.750” RIGHT END SIDE VIEW 6.375” SIDE VIEW FROM HINGE 5.000” 1.875” 1.250”... - Page 13 LBDG-1004 4.2 Table of Specifications Lindsay LBDG-1004 DOCSIS 3.0 4-Port PoE Gateway Specifications Cable Modem Band Plans DOCSIS (Annex B) Network Configuration and Management TFTP, SNMP (V1, V2c, V3), Telnet, HTTP 75 Ω Input Impedance Privacy BPI+ Downstream Modulation 64 or 256 QAM Modem F Port +15 to -15dBmV (-10dBmV for 256 QAM) Housing 5/8"...
