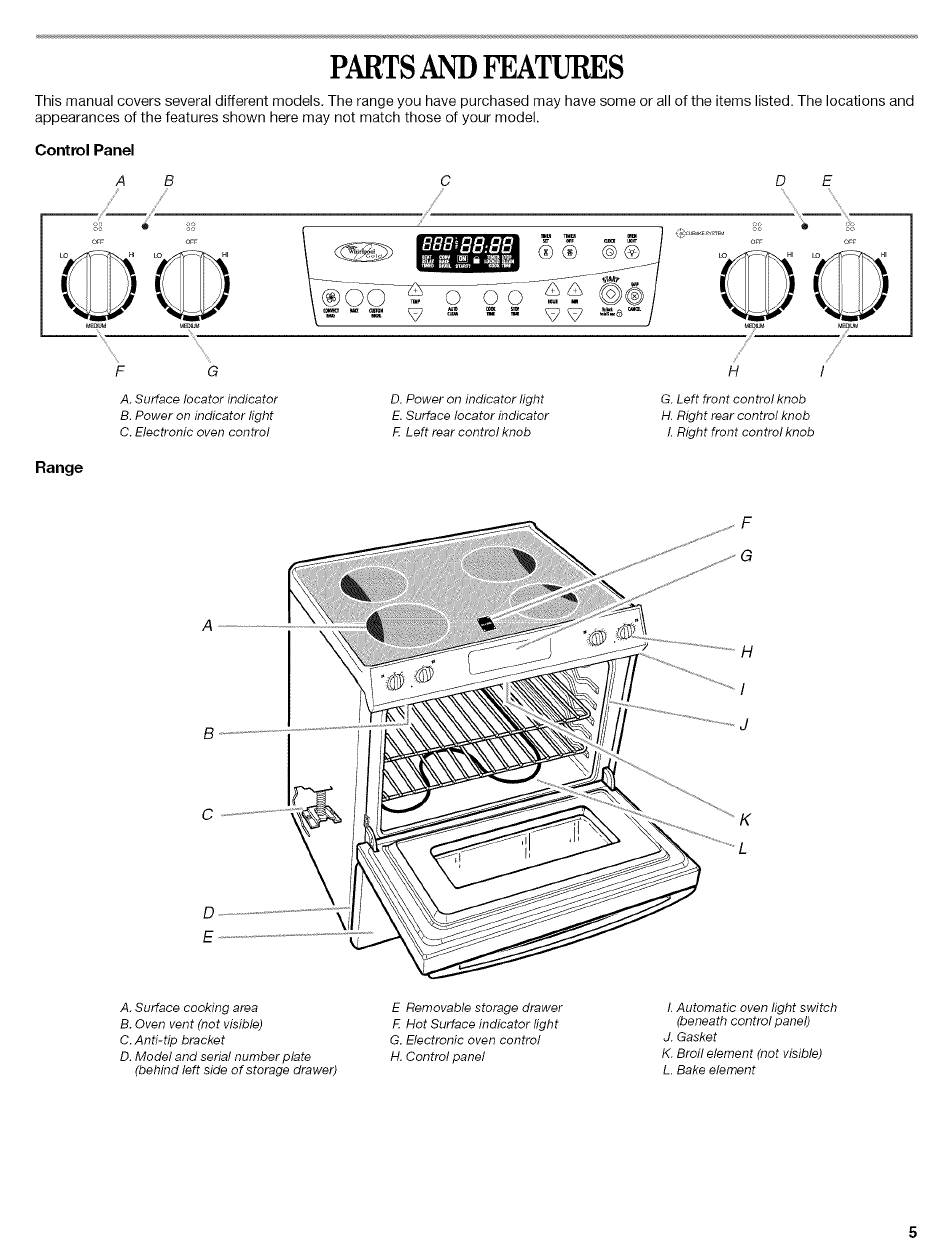

PARTSAND FEATURES
This manual covers several different models. The range you have purchased may have some or all of the items listed. The locations and
appearances of the features shown here may not match those of your model.
Control Panel
F G
A. Surface Iocator indicator
B. Power on indicator light
C. Electronic oven control
D. Power on indicator light
E. Surface locater indicator
E Left rear control knob
G. Left front control knob
H. Right rear control knob
I. Right front control knob
Range
F
G
B
H
I
J
A. Surface cooking area
B. Oven vent (not visible)
C.Anti-tip bracket
D. Model and serial number plate
(behind left side of storage drawer)
E Removable storage drawer
E Hot Surface indicator light
G. Electronic oven control
H. Control panel
L Automatic oven light switch
(beneath control panel)
J. Gasket
K. Broil element (not visible)
L. Bake element
