Detector for activating and safeguarding automatic sliding doors in accordance with
EN 16005 including emergency exits
DualSense D
Original operating instructions

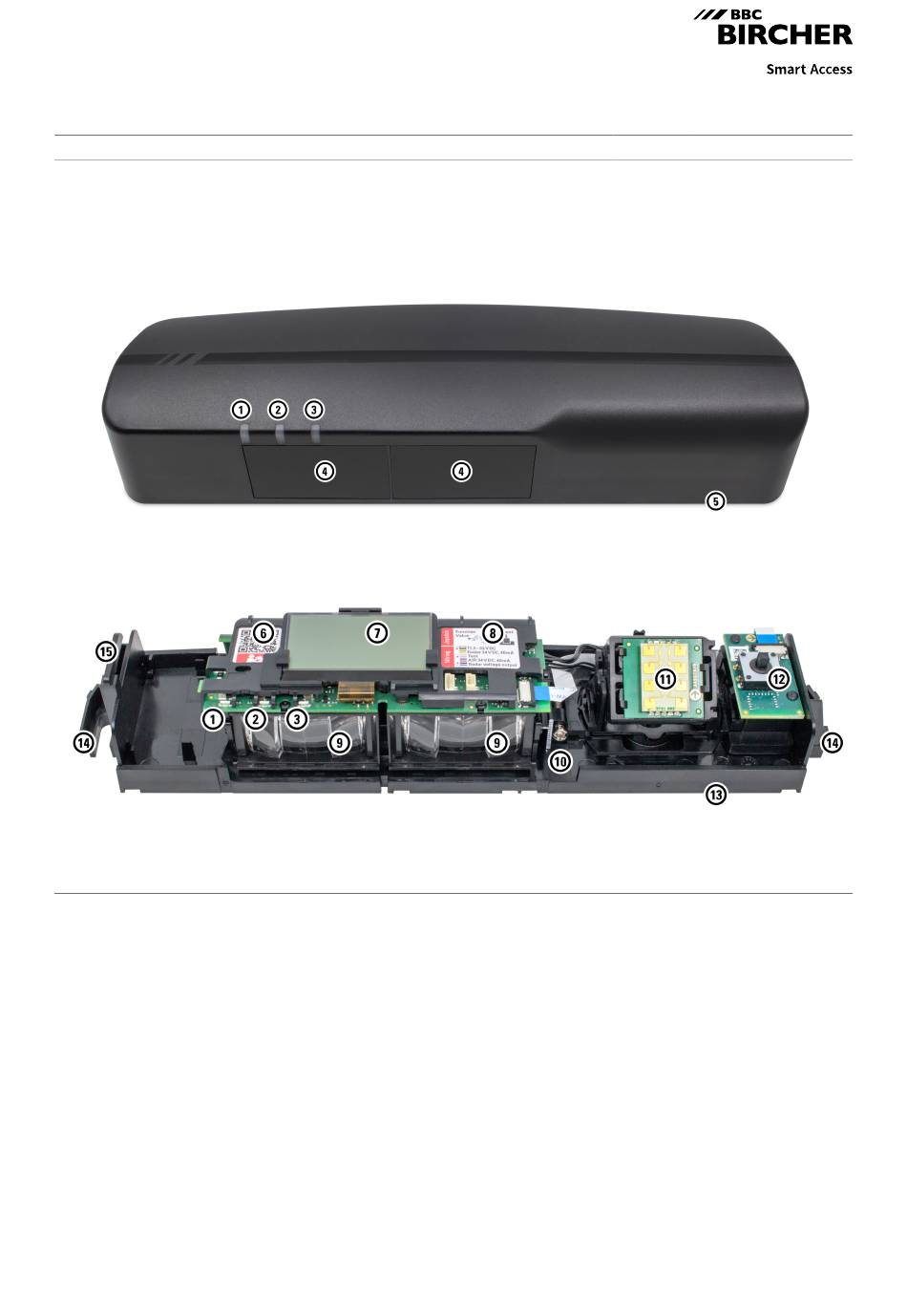

1 Red LED (active infrared, AIR)
2 Green LED (radar)
3 Blue LED (without function)
4 Infrared light window (AIR)
5 Cover
6 QR link to online documentation
7 Display
8 Connection label
24.04.2024 | © BBC Bircher | bircher.com | DualSense D
9 Optics (4 AIR lenses each)
10 AIR angle adjustment
11 Radar module
12 Joystick
13 Support plate
14 Fastening clips
15 Cable strain relief
465845 | v 1.1 | en
1 | 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DualSense D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BBC Bircher DualSense D

Summary of Contents for BBC Bircher DualSense D

  • Page 1 4 Infrared light window (AIR) 12 Joystick 5 Cover 13 Support plate 6 QR link to online documentation 14 Fastening clips 7 Display 15 Cable strain relief 8 Connection label 24.04.2024 | © BBC Bircher | bircher.com | DualSense D 1 | 12...

  • Page 2: Table Of Contents

    • Ceiling mounting bracket • Rain cover • Curved adapter Mounting 1. Glue the drilling template to the mounting position or use the following optional accessories for ceiling mounting: 2 | 12 DualSense D | © BBC Bircher | bircher.com | 24.04.2024...

  • Page 3: Accessory Mounting (Optional)

    5. Screw the detector support plate (with rain cover and/ or curved adapter if applicable) to the fastening points. Curved adapter Accessory mounting (optional) Ceiling mounting bracket 24.04.2024 | © BBC Bircher | bircher.com | DualSense D 3 | 12...

  • Page 4: Electrical Connection

    Performance level PLd ► To achieve performance level PLd, Cat. 2 in accordance with the standard EN ISO 13849-1, connect the test input to (wire pair "Fig. X"). 4 | 12 DualSense D | © BBC Bircher | bircher.com | 24.04.2024...
  • Page 5 4. Test the door system. If necessary, optimize other parameters. 5. If desired, protect the configuration in the menu group General with a password. 6. Finish configuration in the menu group Exit. 24.04.2024 | © BBC Bircher | bircher.com | DualSense D 5 | 12...

  • Page 6: Mechanical Settings

    100 Hz, stops on detection (suitable for door in escape route, see "Electrical connection"). Voltage output for radar does not require any specific set- tings. 6 | 12 DualSense D | © BBC Bircher | bircher.com | 24.04.2024...
  • Page 7 AIR field (active infrared light). Optics with 4 lenses creates an AIR light field made of 4 segments (A to D). 24.04.2024 | © BBC Bircher | bircher.com | DualSense D 7 | 12...
  • Page 8 Select the plate preparations): size appropriate for the lens. 1. Measure the depth R of the door lintel and the mounting height H of the detector. 8 | 12 DualSense D | © BBC Bircher | bircher.com | 24.04.2024...

  • Page 9: Operation And Maintenance

    4. Wait until the LEDs stop flashing. Note: Continuous flashing signals indicate a fault, see section "Faults". 5. Test the door system and, if necessary, adjust the mechanical settings according to section "Settings". 24.04.2024 | © BBC Bircher | bircher.com | DualSense D 9 | 12...

  • Page 10: Tools

    • Log data with messages and error codes • AIR signal display for analysis • Configuration code for support requests • Operating hours counter • Software version 10 | 12 DualSense D | © BBC Bircher | bircher.com | 24.04.2024...

  • Page 11: Regular Work

    QR code. If you require support, take a picture of the code and e-mail it to support. Support If you have any questions about the detector, contact: support@bircher.com, phone +4152 687 1366 24.04.2024 | © BBC Bircher | bircher.com | DualSense D 11 | 12...

  • Page 12: Contact

    If you have any questions about the detector, contact: support@bircher.com, phone +4152 687 1366 BBC Bircher Smart Access BBC Bircher AG, Wiesengasse 20, CH-8222 Beringen, www.bircher.com Designed in Switzerland / Made in China 12 | 12 DualSense D | © BBC Bircher | bircher.com | 24.04.2024...
