CleanSwitch
Translation of the original instructions
General
88
Safety instructions
1
The device may only be installed and commissioned by trained specialist personnel.
Interventions and repairs on the device may only be carried out by the manufacturer.
The device may only be operated with protective extra-low voltage with safe galvanic isolation.
Always consider the safety functions of your application as a whole and never just refer to a single part of the system.
The risk assessment and the correct installation of the sensor and the system are the responsibility of the installer.
In general, avoid contact with electronic components.
Assembly
2
1
TOP
Insert the seal as marked.
Mounting option
2 Screw
Configuration
3
Factory settings
Detection range 0.1 - 0.5 m
1 – 3 Color settings
38
2
TOP
Hang the cover in at the top.
Mounting option
4 Screw
Color brightness
4 Mode setting
To press
until the click!
DIP-Switches
1-3 Optical feedback
ON ON
Green/red
1 2 3 4 1
ON
Red/Green
1 2 3 4 1
ON
Blue/green
1 2 3 4 1
ON
Green/green
1 2 3 4 1

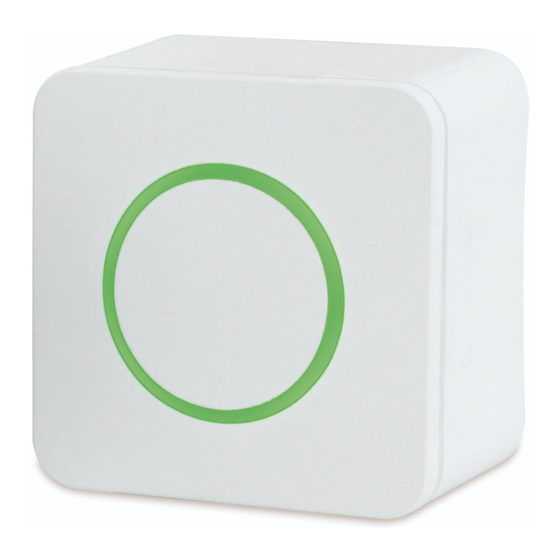

Contactless switch
Front cover
Screw
Mounting frame
Poetry
Print module
Sensor housing
Housing cover
3
Dismantling
4 ON Toggle-Modus
4 OFF Pulse-Modus
ON
Red/Red
2 3 4
1 2 3
ON
Blue/blue
2 3 4
1 2 3
-/Green
2 3 4
-/Blue
2 3 4
367228F
ON
Toggle-
Modus
4
OFF
Pulse-
Modus
4
1
