Detector for safeguarding automatic sliding doors in accordance with EN 16005
DualSense S
Original operating instructions

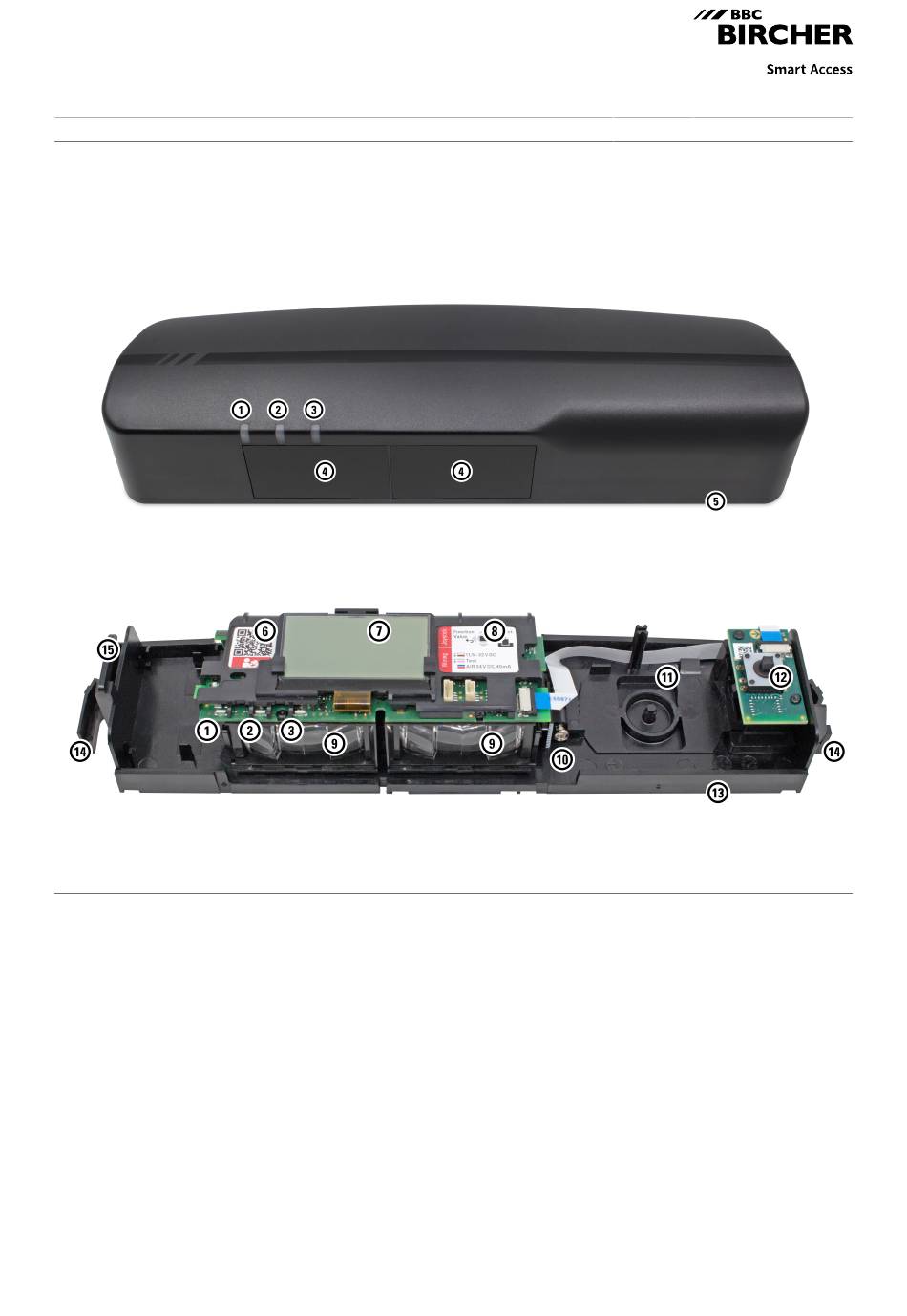

1 Red LED (active infrared, AIR)
2 Green LED (system)
3 Blue LED (without function)
4 Infrared light window (AIR)
5 Cover
6 QR link to online documentation
7 Display
8 Connection label
24.04.2024 | © BBC Bircher | bircher.com | DualSense S
9 Optics (4 AIR lenses each)
10 AIR angle adjustment
11 Position not used
12 Joystick
13 Support plate
14 Fastening clips
15 Cable strain relief
466174 | v 1.1 | en
1 | 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BBC Bircher DualSense S
Summary of Contents for BBC Bircher DualSense S
- Page 1 4 Infrared light window (AIR) 12 Joystick 5 Cover 13 Support plate 6 QR link to online documentation 14 Fastening clips 7 Display 15 Cable strain relief 8 Connection label 24.04.2024 | © BBC Bircher | bircher.com | DualSense S 1 | 12...
-
Page 2: Table Of Contents
• Ceiling mounting bracket • Rain cover • Curved adapter Mounting 1. Glue the drilling template to the mounting position or use the following optional accessories for ceiling mounting: 2 | 12 DualSense S | © BBC Bircher | bircher.com | 24.04.2024... -
Page 3: Accessory Mounting (Optional)
5. Screw the detector support plate (with rain cover and/ or curved adapter if applicable) to the fastening points. Curved adapter Accessory mounting (optional) Ceiling mounting bracket 24.04.2024 | © BBC Bircher | bircher.com | DualSense S 3 | 12... -
Page 4: Electrical Connection
A fault code is shown in the event of faults. To Select value configure the detector, press the joystick. Confirm value Joystick action in the status view Press to start configuration Return to the menu view 4 | 12 DualSense S | © BBC Bircher | bircher.com | 24.04.2024... - Page 5 If the password is lost, dis- connect the detector from the power source. After reconnec- tion, the configuration is open for 1 min to set a new pass- word. 24.04.2024 | © BBC Bircher | bircher.com | DualSense S 5 | 12...
-
Page 6: Mechanical Settings
For motion detection, the detector contains a radar module. The module generates a conical radar field with an oval cross-section. The radar module setting determines the position where the field recognizes movement of people. 6 | 12 DualSense S | © BBC Bircher | bircher.com | 24.04.2024... - Page 7 Cover lenses (A to D) of seg- ments that are not required. Insert the enclosed plastic plates in the slots in front of the lenses. Select the plate size appropriate for the lens. 24.04.2024 | © BBC Bircher | bircher.com | DualSense S 7 | 12...
-
Page 8: Operation And Maintenance
4. Wait until the LEDs stop flashing. Note: Continuous flashing signals indicate a fault, see section "Faults". 5. Test the door system and, if necessary, adjust the mechanical settings according to section "Settings". 8 | 12 DualSense S | © BBC Bircher | bircher.com | 24.04.2024... -
Page 9: Status Display
Detector defective tion! Safety-relevant func- simultaneous- tion may be impaired. Faults Door fault LED signal Display: Fault code if applicable Possible remedies Possible cause 24.04.2024 | © BBC Bircher | bircher.com | DualSense S 9 | 12... -
Page 10: Tools
• Configuration code for support requests • Operating hours counter • Software version If you have any questions about the detector, contact: support@bircher.com, phone +4152 687 1366 10 | 12 DualSense S | © BBC Bircher | bircher.com | 24.04.2024... -
Page 11: Regular Work
< 13 dBm BBC Bircher AG, Wiesengasse 20, CH-8222 Beringen, Radar performance level PLd, Cat. 2 (EN ISO 13849-1) www.bircher.com for frequency or voltage output Designed in Switzerland / Made in China 24.04.2024 | © BBC Bircher | bircher.com | DualSense S 11 | 12... - Page 12 12 | 12 DualSense S | © BBC Bircher | bircher.com | 24.04.2024...
