Summary of Contents for Joy-it RB-LCD7-2

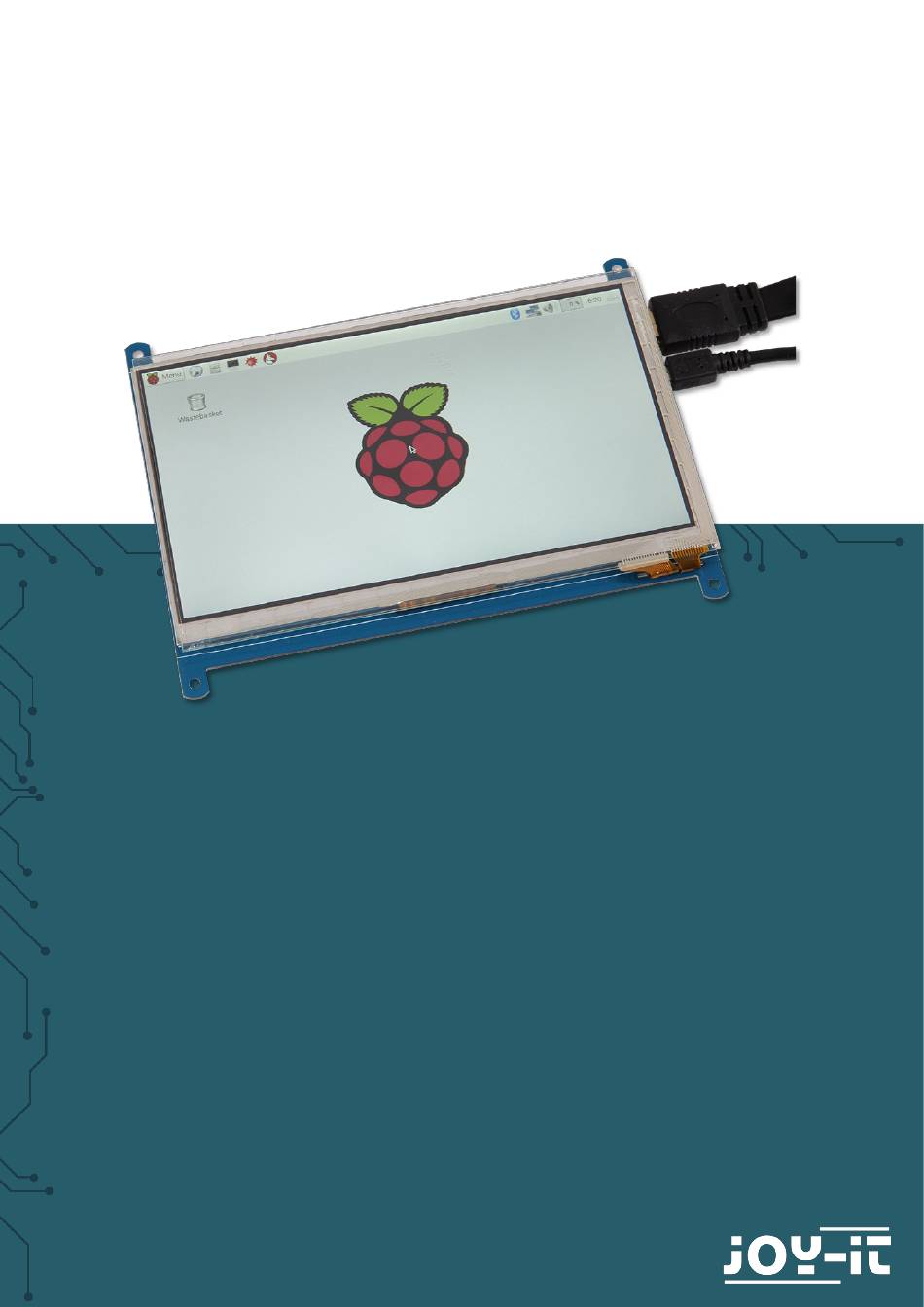

- Page 1 7" TOUCH DISPLAY RB-LCD7-2 Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net...
-
Page 2: General Information
1. GENERAL INFORMATION Dear customer, thank you very much for choosing our product. In the following, we will introduce you to what to observe while starting up and using this product. Should you encounter any unexpected problems during use, please do not hesitate to contact us. - Page 3 sudo nano /boot/config.txt Now find the line #disable_overscan=1 and remove the # sign. Save the file with CTRL + O and confirm with Enter. Now you can close the file with the key combination CTRL + X. After a reboot of your Raspberry Pi your display will be ready for use 4.
- Page 4 5. DISPLAYROTATION Changing the display orientation is helpful for many purposes. Of course, you can also configure the display orientation here. To do this, you simply need to follow the steps in the following images. 1. Open the application menu. 2.
-
Page 5: Display Calibration
Afterwards you should be able to see the opened window on the desktop of your Raspberry Pi as shown in the following picture. In this window, simply go to Configure > Screens > HDMI-1 > Rotation and select the desired orientation that you want to use for your display. 6. - Page 6 7. USE WITH WINDOWS 10 AND WINDOWS 11 To operate the display on a Windows computer, simply connect the display with an HDMI and a USB cable. The USB cable is connected to the touch port of the display and to a free USB port of your computer. The USB cable is used for both the data exchange for the touch function and the power supply for the display.
-
Page 7: Additional Information
Germany Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by email at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
