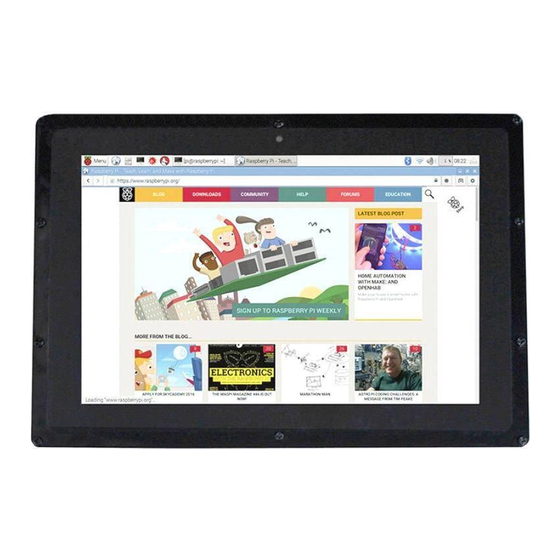

10.1inch HDMI LCD
Ausgabe 07.12.2016
Copyright by Joy-IT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10.1inch HDMI LCD and is the answer not in the manual?

Questions and answers

Summary of Contents for Joy-it 10.1inch HDMI LCD

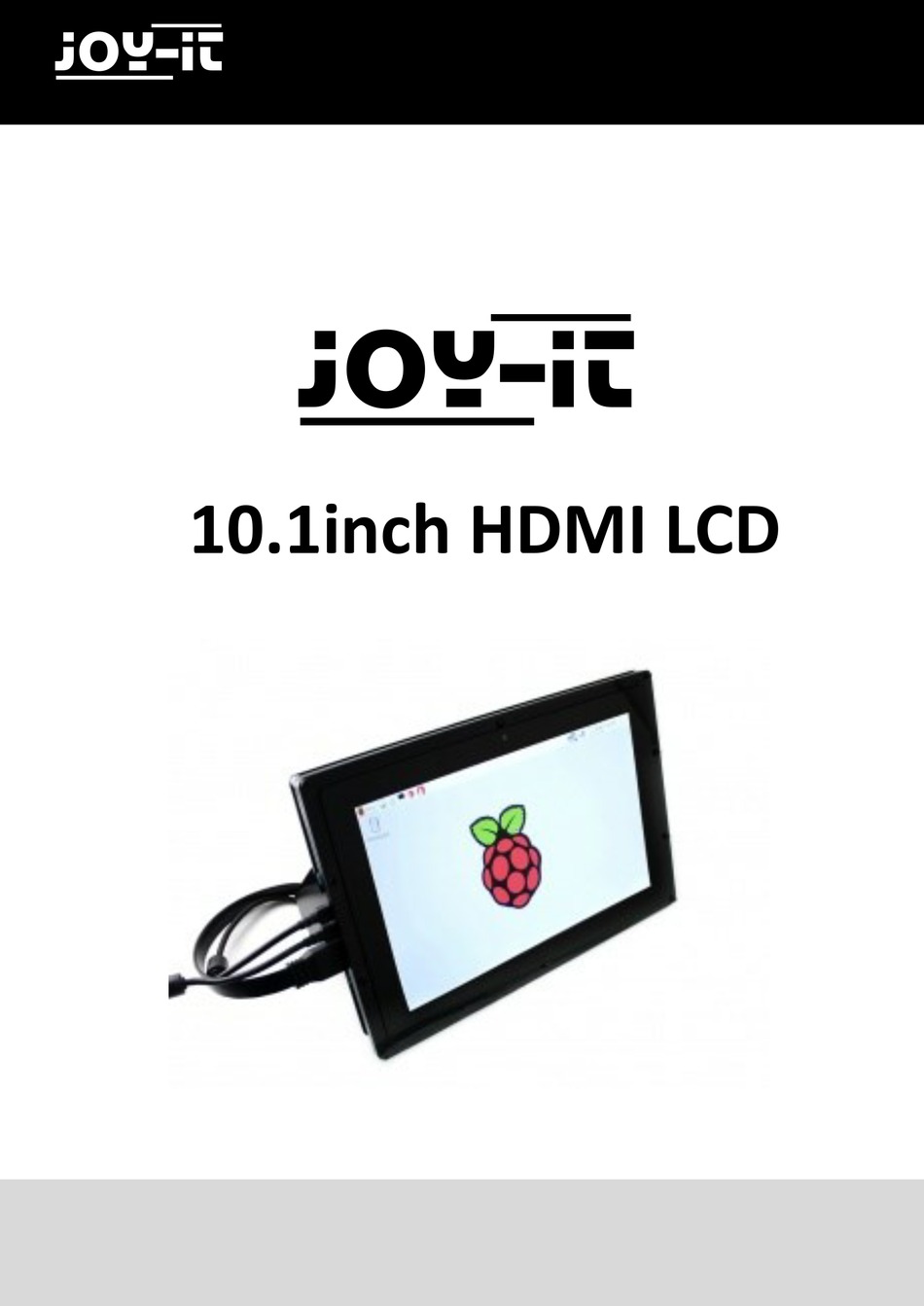

  • Page 1 10.1inch HDMI LCD Ausgabe 07.12.2016 Copyright by Joy-IT...
  • Page 2: Table Of Contents

    10.1inch HDMI LCD Contents Introduction Holder assemble Working with PC Hardware connection Working with Raspberry Pi Hardware connection Working with BeagleBone Black Hardware connection Working with Banana Pi Working under the Raspbian OS on the Banana Pi Hardware connection Loading the WiFi driver for BananaPi Pro...
  • Page 3: Introduction

    10.1inch HDMI LCD 1. Introduction IPS, 1280×800, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems 2. Holder assemble Please refer to How to assemble 10.1inch-HDMI LCD (B) holder 3. Working with PC This product supports Windows 10/8.1/8/7 operating systems. For the Windows 10/8.1/8 OS, the touch screen supports multi-touch up to 10 points.
  • Page 4: Hardware Connection

    10.1inch HDMI LCD 3.1 Hardware connection Please make sure the connections are done in a right sequence, or else the LCD may not work well. 1. Connect the Power Only Port of the LCD to a 5V 2.5A power adapter with a Type A to micro USB cable.
  • Page 5: Working With Raspberry Pi

    10.1inch HDMI LCD 4. Working with Raspberry Pi For the Windows OS on PC, the resolution of the LCD is automatically identified. Hence, you do not need to make the relative settings. When working with Raspberry Pi, you should set the resolution of the LCD by yourself, or else the LCD screen will not work.
  • Page 6: Hardware Connection

    10.1inch HDMI LCD 4.1 Hardware connection 1. Connect the Power Only interface of the LCD to a 5V 2.5A power adapter with a Type A to micro USB cable (Normally, the LCD will perform screen-clear and self-checking. If there is nothing displayed on the screen, please check whether the LCD screen has been turned on.
  • Page 7 10.1inch HDMI LCD 1. Connect the Touch interface of the LCD to one of the USB interfaces on your Pi. 2. Insert a micro SD card into the micro SD card socket on the Raspberry Pi, and then power up the Pi.
  • Page 8: Working With Beaglebone Black

    10.1 inch HDMI LCD, and set the resolution to 1280*800 automatically. When the LCD works as a touch display, you need to program the 10.1inch HDMI LCD (B) Angstrom boot up image. Here are the steps for programming the image file: 1.
  • Page 9: Working With Banana Pi

    10.1inch HDMI LCD 6. Working with Banana Pi 6.1 Working under the Raspbian OS on the Banana Pi Program the image Raspbian for Banana Pi. This image file supports BananaPi Pro and BananaPi. 1. Download the packaged image file into your PC, and extract it, then you will get a file with the expansion name .img...
  • Page 10: Support

    10.1inch HDMI LCD 7. Support If you have any questions , or problems please contact us via e-mail, phone or support system. E-Mail: service@joy-it.net Support-System: http://support.joy-it.net Phone: +49 (0)2845 98469 – 66 (11 AM - 6 PM) Please visit our website for more information: www.joy-it.net...
