Midea MPC5016AASS User Manual

Easy saute multi-cooker
Hide thumbs Also See for MPC5016AASS:
Table of Contents

Advertisement

Quick Links

Download this manual
EASY SAUTE MULTI-COOKER
USER MANUAL
MPC5016AASS
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPC5016AASS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea MPC5016AASS

Summary of Contents for Midea MPC5016AASS

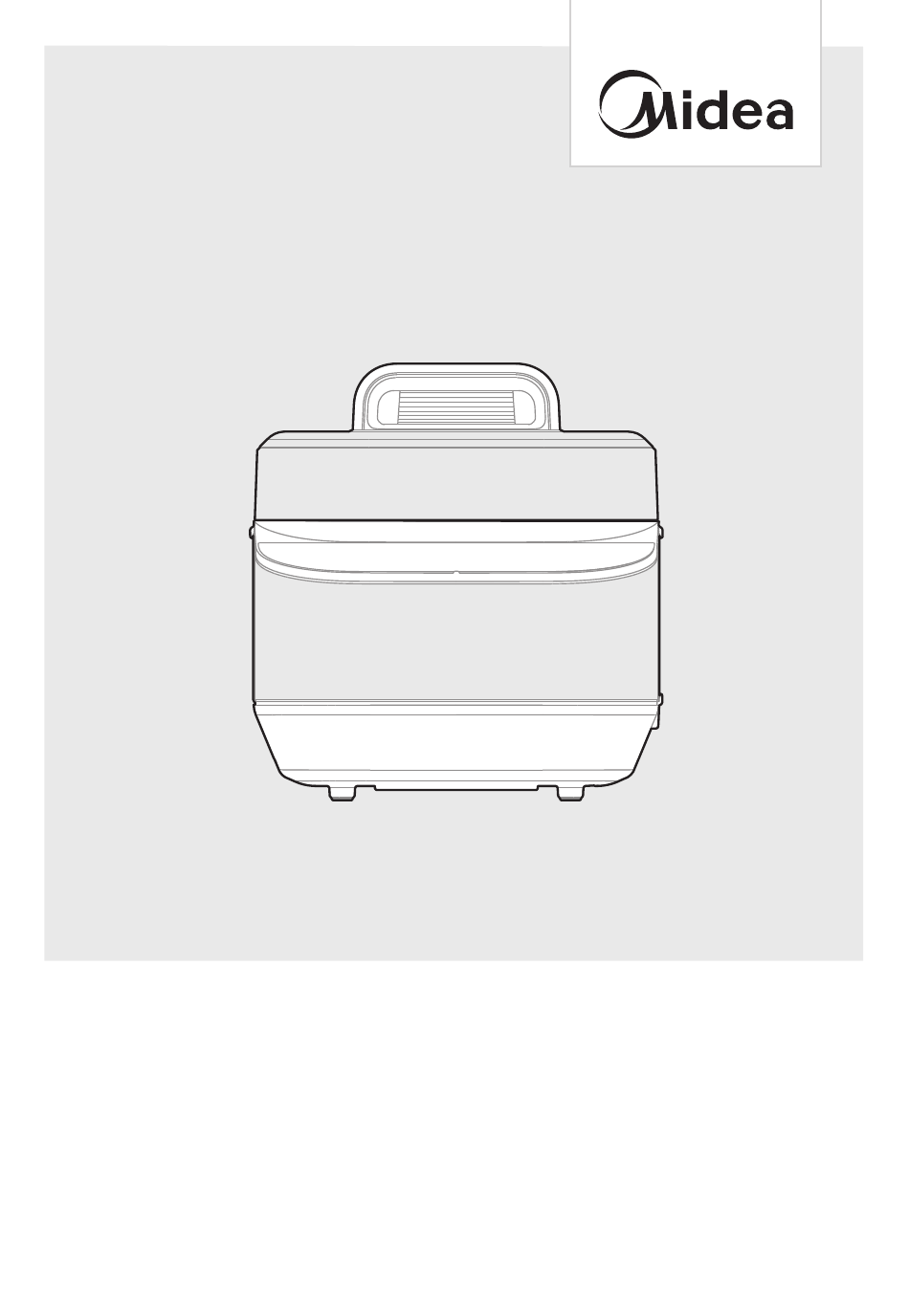

  • Page 1 EASY SAUTE MULTI-COOKER USER MANUAL MPC5016AASS Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

  • Page 2: Table Of Contents

    THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer.
  • Page 4 IMPORTANT PRECAUTIONS CAUTION • READ ALL INSTRUCTIONS. • Do not touch hot surfaces. Only use side handles or knobs for carrying or moving. • To protect against electrical shock, do not immerse the power cord, plugs, or appliance in water or other liquid. •...
  • Page 5 • Do not fill the appliance over 2/3 full. When cooking foods that expand during cooking such as rice or dried vegetables, do not fill the appliance over 1/2 full. Over filling may cause a risk of clogging the vent pipe and developing excess pressure.
  • Page 6 WARNING Observe instructions If the supply cord is damaged, it must be replaced by the ● sons in order to avoid a hazard. The appliance is not intended to be operated by means ● of an external timer or a separate remote-control system. Do not tamper with any of the safety systems beyond the ●...

  • Page 7: Specifications

    SPECIFICATIONS Product Model MPC5016AASS Volume Power Supply 120V~ Rated Power 1000W Frequency 60Hz Working Pressure 70kPa Keep Warm Temperature 140° F~176° F...

  • Page 8: Product Overview

    PRODUCT OVERVIEW Product Structure Steam dissipation Exhaust value Float valve Cover handle Clog prevention cap Pressure seal Seal retention ring Inner pot User Interface Main body Main body handle Parts List Measuring cup Flat spoon Ladle User Manual Drip tray NOTE All the pictures in this manual are for explanation purpose only.
  • Page 9 User Interface Soup/Broth Pressure Cook Beans/Chili Fast Release Display Screen “+” Button “-” Button Start Button Cancel Button Delay Start Sauté Sous Vide Slow Cook Operation Guidelines Function Operation Guidelines KEEP WARM/- Cancel the current state, return to standby or enter keep warm ●...
  • Page 10 Function Operation Guidelines Delay Start: Before the program start, press “DELAY START” ● button. The screen shows the preset beginning time. Press “-” or “+” or ● DELAY START “DELAY START” button to adjust the delay time. Press “START” button, the unit starts delay time count down. When it count- down to the end, the program starts working.
  • Page 11 Tips: 1. Please move the product with the handle of the main body; 2. Please remove the water from the housing cover with cloth. NOTE • Exhaust valve: Pull out the exhaust valve from the lid. Clean the internal side of the exhaust valve and the exhaust valve and float valve of the lid with brush and cloth at least once a month.
  • Page 12 Disassemble and install the sealing ring 1. Please do not pull the sealing ring, otherwise, the distorted pressure seal may influence the seal and pressure effect. 2. install the sealing ring, When the float valve is in a falling state, press the self-locking component with the left hand, then rotate the lid with left hand and press the sealing ring with right hand.
  • Page 13 2 Check if the parts and accessories of lid are well installed • Check if the floater valve and exhaust valve are jammed, confirm if the sealing ring and clog prevention cap are well installed. 3 Take out the inner pot, put the foods and water into the inner pot •...
  • Page 14 Lock State 6 Put the exhaust valve well • When working, please turn the exhaust valve to the sealing place, which means the electric pressure cooker keeps at sealing state; • For manual exhaust, please turn the exhaust valve handle to the exhaust place, the electric pressure cooker keeps at the exhaust state;...
  • Page 15 Safely Open the Lid 1. Cut off power supply or remove the power plug 2. Open the lid When the float valve drops, Turn the cover handle cover counter-clockwise to the open position, lift the cover handle cover. Do not open the lid before the pressure in the pot has been completely released, do not open the cover with force if it is difficult to open.

  • Page 16: Safety Precautions 1

    SAFETY PRECAUTIONS To avoid personal injury and property loss, be sure to observe the following safety precautions. • Meanings of the marks: General Disassemble Wet hands Forbid Forbidden Forbidden Means “Forbidden” items Contact Spray Water Forbidden Forbidden Means Must be Remove the “Mandatory”...
  • Page 17 WARNING It is strictly prohibited to use other lid • It is strictly prohibited to use other lid for heating, and in the (switching on) process, the use of non-original lid is not allowed. • As this may cause electric shock or safety hazards.
  • Page 18 WARNING Warning on Opening the lid • When the electric pressure cooker is not working, there isn't pressure in the pot, the float valve is down; • When the electric pressure cooker is working, pressure in the cooker rises, float valve ascends; do not fiercely open the lid before the pressure has been completely released;...
  • Page 19 CAUTION In working, never move your hands to close to the exhaust port. • In cooking process, never move your hands to close to the exhaust port to avoid burns. • During cooking, do not cover the vent with a cloth and other items.
  • Page 20 CAUTION Do not use in the following locations • Do not use in unstable locations; • Do not use in locations near water and fire; • Do not use near walls and furniture; • Do not use in locations exposed to direct sunlight and oil splatter.

  • Page 21: Cleaning And Maintenance 2

    CLEANING AND MAINTENANCE 1. Clean after each use. 2. Before cleaning and maintenance, please unplug the power cord until the product cools. 3. Remove the lid and inner pot, clean with detergent first, then rinse well with water, and wipe dry with a soft cloth. 4.

  • Page 22: Troubleshooting 2

    TROUBLESHOOTING Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.
  • Page 23 Problem Reason Solution Solution Exhaust valve not in Turn the exhaust valve to ● ● sealing position. the sealing position. Steam comes out from Send to the service center ● exhaust valve Pressure control fails ● for repair. non-stop Power indicator Please check the power ●...

  • Page 24: Trademarks, Copyrights And Legal Statement

    Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

  • Page 25: Data Protection Notice

    European Economic Area. Further information are provided on request. You can contact our Data Protection Officer via MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via...

  • Page 26: Year Limited Warranty

    Please note that failure to complete and submit this form does not diminish your warranty. In the event of a warranty period claim, question, comments or if service is required for this product, please contact us at the following: customerserviceusa@midea.com 1-866-646-4332...
