IMPORTANT SAFEGUARDS............................................................................1
How to use.........................................................................................................3
Cleaning.............................................................................................................3
Kettle model.......................................................................................................4
IMPORTANT NOTE: Please read the manual carefully before operating your
product. Retain it for future reference.
IMPORTANT SAFEGUARDS
Caution
1. Read carefully and save all the instructions.
2. For additional protection, we recommend the use of a power
outlet with a rated current of 10A. To avoid circuit overload, do
not operate another high wattage appliance on the same circuit.
3. Do not fill kettle when positioned on base, Dry the water on the
bottom of the body before place it onto power base.
4. Never leave the appliance unattended when in use.
5. Close supervision is necessary when your appliance is being
used near children or infirm persons.
6. Electric kettle must be operated on a flat surface. Do not place
this appliance on or near a hot gas or electric burner or on the
top of other electric appliances.
7. Do not touch hot surfaces, use the handle.Be aware of steam
being emitted from spout or lid especially during refilling. Do not
remove lid during boiling cycle.
8. Do not use the kettle to heat anything other than water. Do not
fill above the "max" indication. Do not operate kettle if water is
below minimum.
9. Do not let the power cord hang over the edge of the table or

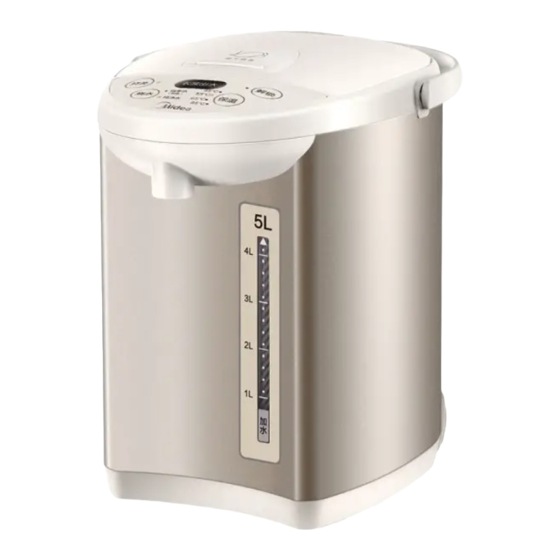

Thermo Pot
MK-SP50Colour201
USER MANUAL
CONTENT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea MK-SP50Colour201
Summary of Contents for Midea MK-SP50Colour201
- Page 1 Thermo Pot MK-SP50Colour201 USER MANUAL CONTENT IMPORTANT SAFEGUARDS................1 How to use......................3 Cleaning......................3 Kettle model.......................4 IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference. IMPORTANT SAFEGUARDS Caution 1. Read carefully and save all the instructions.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS touch hot surfaces. Always store excess portion of the power cord in the compartment of the base unit. 10. Do not immerse any part of the appliance in water or other liquid. Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person. - Page 3 IMPORTANT SAFEGUARDS 18. This appliance is intended to be used in household and similar applications as: - Staff kitchen areas in shops,offices and other working environments; - Farm houses; - By clients in hotels, motels and other residential type environents; - Breakfast type environments.
- Page 4 6. Grasp the top of the scale filter and pull upwards to remove. Wash with clean water and dry thoroughly before replacing in the kettle. Kettle model Model Volume Voltage frequency Rated power 750-900 W MK-SP50Colour201 5.0 L 220-240V~ 50-60Hz...
-
Page 5: Product Overview
Product overview Note The products’ exteriors are different. The following diagrams are for reference only; the specifics are based upon the actual product in the package. Part name Sealing ring Inner cover Water drainage Liner Handle Water outlet Kettle body Water level indicator Power... - Page 6 Operation panel Operation panel Unlock On/Off Press for water Tap Water Keep Boiling (Dechlorination) Warm Purified Water 1. In standby state, click the “Boiling” button, select the “Tap Water” function (the “Keep Warm” function is on by default). The “On/Off” Boiling button indicator light is on constantly.
-
Page 7: How To Use
1. In locked state, the corresponding function indicator will light off; click on the corresponding button, the corresponding function indicator will Unlock light on constantly, and the kettle enters the unlocked state. If there is no operation within 10 seconds after the unlock light is on, the unlock indicator will light off after 10 seconds and returns to the locked state. - Page 8 Turn on the power supply, all indicators light up, the buzzer sounds a long time. After 1 second, all the button indicator light off, except the “On/Off” button indicator flashes, and the kettle On/Off enters the standby state. (If there is no operation for 30 seconds, the kettle enters the “Shut Down”...
-
Page 9: Security Lock
Keep Warm Add 1 L to 5 L of purified water to the kettle with a water container, and the water level should not exceed the full water mark. Close the top cover. Turn on the power supply, all indicators light up, the buzzer sounds a long time. -
Page 10: Care And Cleaning
Press the “Unlock” button, the unlock Unlock indicator light is on, and the water outflow function is available. Disassembly of kettle lid Open the lid of the kettle, the lid and the horizontal level are at 20~30 degrees. Hold the kettle body with one hand and pull lid slightly with the other hand to remove the lid. - Page 11 Pour away the water from the water drainage, and dry the water kettle with a dry towel. Wipe the kettle exterior with a damp towel and prepare for the future usage. De-scaling Pour the de-scaling detergent (100 grams per wash) into the kettle. Add cold water to the full water mark and stir well, then turn on the power supply.
- Page 12 Please keep the kettle clean after each use. For prolonged storage, please unplug the power from the outlet, and apply necessary moisture, dust and pest prevention methods. Midea Appliances Australia 280 Wickham Rd, Highett, VIC 3190 www.midea-australia.com.au TEL: 1300 793 216...
