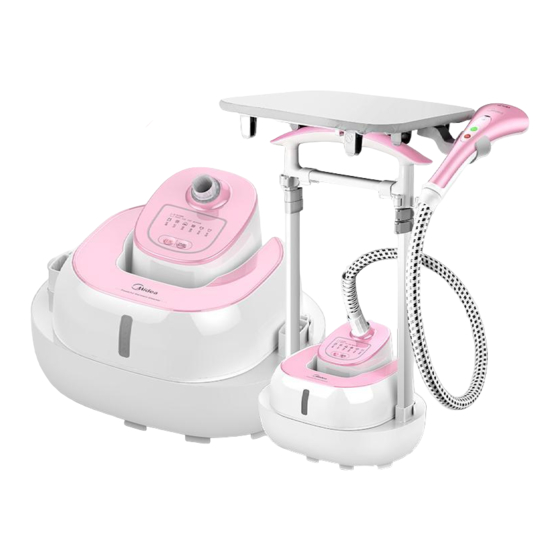

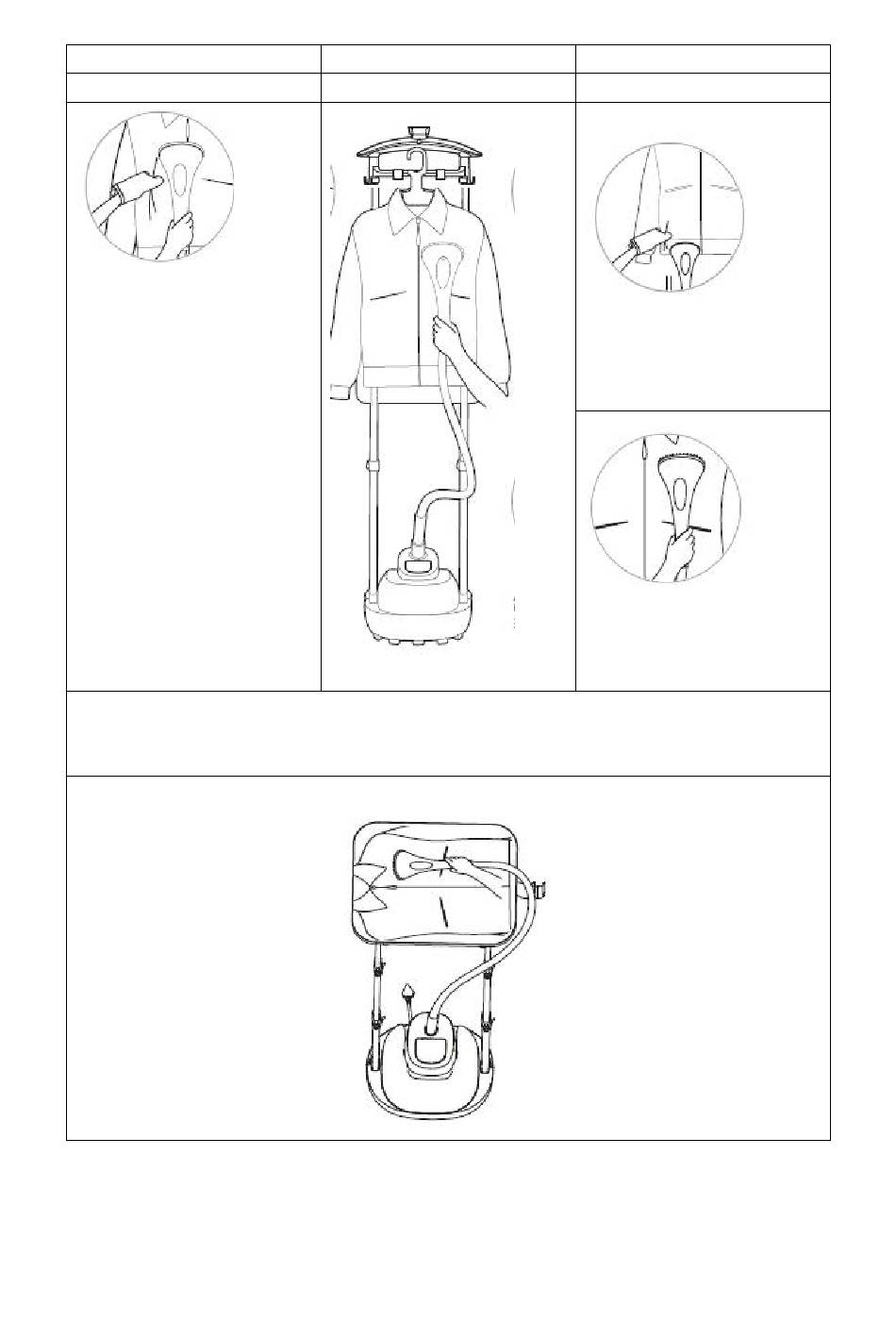

熨烫方法 Ironing method
Common ironing
Wear gloves plate can prevent
scald
Warmly reminding:
1. don't long time pressed on the same place, avoid damage the clothes.
2. The steam outlet has heat water drop out when ironing, please take protection actions when
use, avoid scald damage.
Clothes can be level placed for ironing
Hang the cloth ironing plate
can assist ironing clothes,
include the edge and tails
Can co-use with hair brush
when need remove hair.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midea YGD20D8
Summary of Contents for Midea YGD20D8
- Page 1 熨烫方法 Ironing method Common ironing Wear gloves plate can prevent scald Hang the cloth ironing plate can assist ironing clothes, include the edge and tails Can co-use with hair brush when need remove hair. Warmly reminding: 1. don’t long time pressed on the same place, avoid damage the clothes. 2.
- Page 2 Ironing method Ironing trousers For the customers who has requirements at creases or axes, can use the trouser sew clip assist ironing. Use clip sheet fixed the trousers or clothes well; Packed the trousers clips well; Use trousers clips clamped trousers creases or axes, slowly downward move ironing.
- Page 3 Model, accessories and basic parameters Model Air brush Trouser sew clip Hanging ironing plate gloves plate YGD20D8 YGD20D7 Product execute standard:GB4706.1-2005 GB4706.84-2007 Electric principle diagram: please reference Daily maintenance manual Product qualified certificate Check date: Please check the data plate...
- Page 4 Back data plate laser code of hanging ironing machine: XX XX XX XX XX Year Month Working section code Line number Example:1501071801 means produced at NO.18 working section line 01 in January 7 , 2015 All contents on this datum all have been carefully verified, can consult our company if any printing omit or misunderstanding at content.
- Page 6 X: means this harmful elements content of one homogeneous material in this part exceed the limits which stipulated in GB/T26572. TEL 400-8899-315 Guangdong Midea environment electric manufacture Co., Ltd Address:NO.28, Hesui industry part east, Dongfu road, Dongfeng town, Zhongshan city, Guangdong province Postal code:528425 Website:www.midea.com...
- Page 7 美的 Midea Steam hanging ironing machine Quick start manual Service arrive once WeChat scanning Read this manual carefully before use, and safety retain it...
- Page 8 Part introduce(The below diagram only for reference, the details subject to entity) Ironing head Clothes hanging rod assembly Clip sheet Steam lead pipe Hang ironing plate Support rod Fixed wrestles Steam lead pipe fix parts Control area Water tank Water discharge plug...
- Page 9 Trousers sew clip Hair brush Gloves plate Installation introduce ①Install support rod assembly Insert Flexible adjust height Loose lock button, insert the support rod into main machine, tightly lock each fix wrestles Insert Shown as picture: install each parts well successively Install steam lead pipe...
- Page 10 1. Make the concave mark of steam lead pipe fix parts Clockwise rotate the steam plead pipe fix parts, align to mark , and inserted to be bottom concave align to mark then can tightly locked. Installation introduce Installation of hang ironing plate Front installation diagram Marked fasteners align to first and second...
- Page 11 Clockwise direction pull then section support and pressed on position then disassemble Can up/down move Side installation diagram After finish rotating then can disassemble Marked fasteners align to first and second Hang ironing plate only used in YGD20D7 section support and pressed on position then Top installation diagram 1.
- Page 12 3. Level put the hang ironing plate on the top of cross rod, make the middle fix column of hang ironing plate inserted into corresponding hole to fix. Operating introduce ①Preparation works 1. Hanged the clothes which need ironing well, hang ironing plate can be hanged at side for 2.
- Page 13 1. Press down the “On/off” key, output steam after waiting a while; 2. The max steam volume at “Wistiti”, the min steam volume at “Silk”. Size:105*210mm Color:double color printing Midea blue:C90 M20 Black:K100 Material:80g double glue paper Specification Top secret Draw up...
