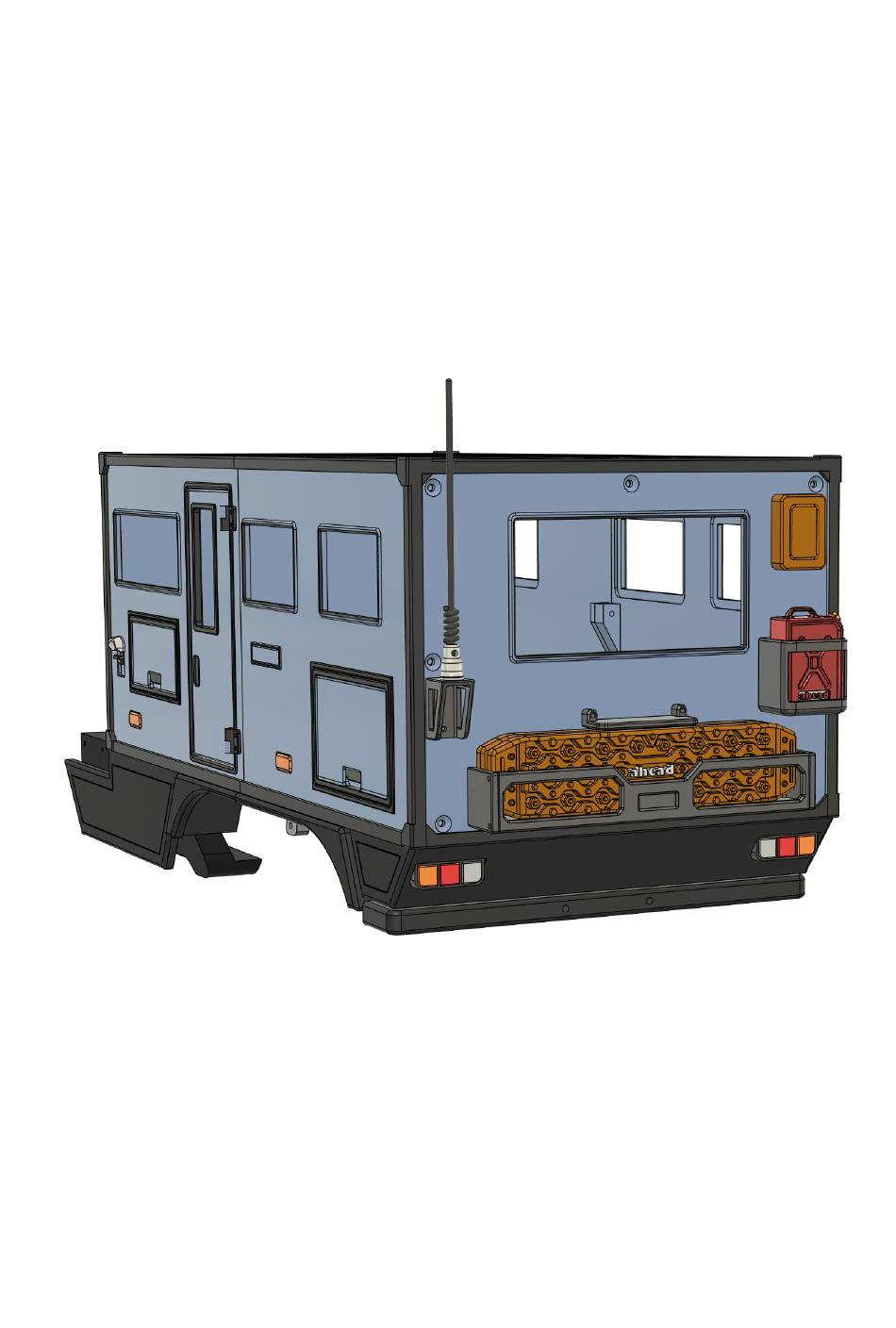

- Page 1 RC Crawler G90 6x6 Expedition Suite Assembly Manual ahead RC...
-
Page 2: Required Tools And Hardware
Required tools and hardware Tools 1.5mm Hex Driver 2.0mm Hex Driver 2.5mm Hex Driver Needle Nosed Pliers Instant Glue Hot Glue Electronics 5mm Red LED x2 5mm Orange LED x2 5mm White LED x2 3mm Orange LED x5 Hardware Hardware Quantity Check M2*5 Socket head M2*10 Socket head M3*10 Socket head M3*10 Countersunk (CS) M3*15 Socket head M3*20 Socket head M3*20 Countersunk (CS) M3*25 Socket head M3*30 Socket head M3*40 Socket head M3 washer (9mm dia.) M3*3 Grub screw (GS) M3 Nylon locknut ahead RC... -
Page 3: Before You Begin
Before you begin Be sure to read through the manual and familiarise yourself with the instructions Visualise a plan to assemble all the pieces Make sure you have all of the hardware and tools Be sure to have enough instant glue Dry fit all parts before painting and assembling Tip: It will help to paint all of the parts before final assembly ahead RC... - Page 4 Assembling the expedition suite and door M3x15mm x7 M2x10mm x2 ahead RC...
- Page 5 M2x5mm x4 ahead RC...
- Page 6 Installing the body mounts and fenders Align holes M3x10mm x4 Repeat on the other fender M3x20mm CS x8 ahead RC...
- Page 7 M3x20mm M3x15mm M3 washer x4 M3x40mm Repeat on the other mount M3x20mm Mount onto chassis Remove original chassis centre skid-plate screws first ahead RC...
- Page 8 Assembling the rear skid plate 5mm LED Orange x2 Red x2 White x2 M2x5mm Repeat on the other set of rear lights M3x15mm ahead RC...
- Page 9 Assembling the rear body / shock mounts Repeat on the other side M3x20mm Secure to chassis Rear shocks M3x25mm M3x20mm ahead RC...
- Page 10 M3x20mm M3 locknut ahead RC...
- Page 11 Installing the front wall M3x10mm CS x5 ahead RC...
- Page 12 Installing details and lights M2x5mm Repeat on the other side 3mm Orange LED ahead RC...
- Page 13 Installing the rear wall M3x10mm CS x7 ahead RC...
- Page 14 Installing the accessories M2x10mm ahead RC...
- Page 15 M3x3mm GS x1 M2x10mm M3x10mm ahead RC...
- Page 16 Installing the rear bumper To Chassis rails M3x10mm M3x30mm ahead RC...
- Page 17 Body is now fully complete. Thank you for selecting ahead RC products. If you have any questions or need help with the assembly, please do not hesitate to contact us at: aheadrc@gmail.com or visit us at: www.aheadrc.com Best of luck with your build! ahead RC...
