3onedata GW1114-4DI(RS-485)-TB-P(12-48VDC) Quick Installation Manual

GW1114-4DI(RS-485)-TB-P(12-48VDC)
Modbus Gateway
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the device for the first time.
1. Modbus Gateway 2. Mounting lug x2
3. Power adapter 4. Foot pad x4
5. Straight-through cable 6. Warranty card
7. Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

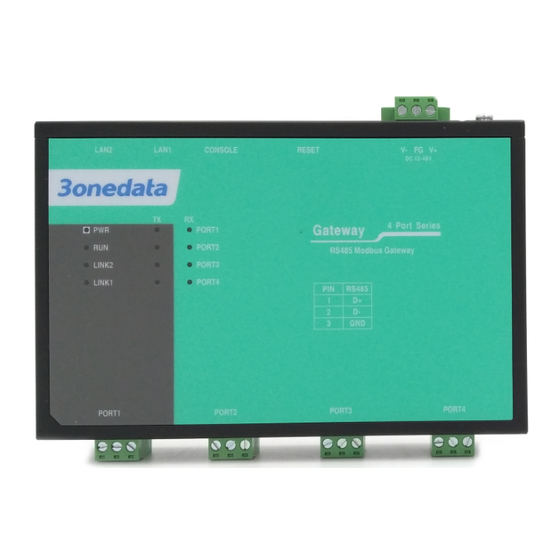

The product is desktop/wall-mounting Modbus gateway.
The model is
GW1114-4DI(RS-485)-TB-P(12-48VDC) (2
100M copper ports + 4 RS-485 serial ports with single-port
isolation + 1 12~48VDC power supply).

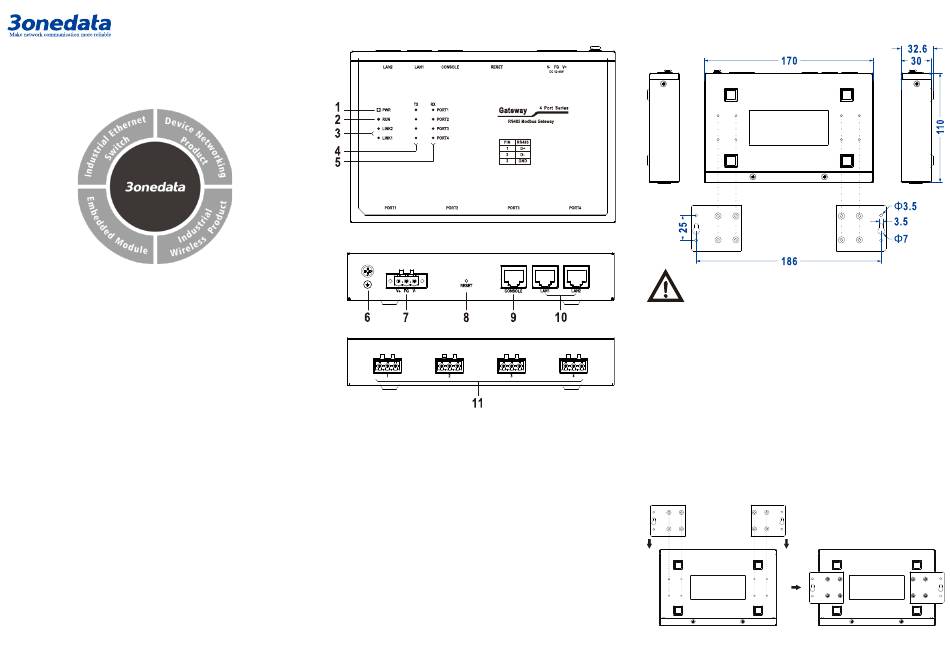

【Panel Design】
 Front view
 Top view and bottom view
Nanshan District,
1. Power supply indicator (PWR)
2. Running indicator (RUN)
3. Ethernet
indicator (LINK1-LINK2)
4. Serial port data transmission indicator (TX1-TX4)
5. Serial port data receiving indicator (RX1-RX4)
6. Grounding screw
7. Power supply input terminal block
8. RESET button
9. CONSOLE port
10. 10/100Base-T(X)
(LAN1-LAN2)
11. RS-485 serial port terminal block (1-4)
interface connection/activity state
100M Ethernet port RJ45
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【Wall-mounted Device Mounting】
Step 1 Adopt M3 screw to install the left/right
mounting board on the device backboard.
Step 2 On the wall of device mounting, place the device on
