GW1102-2D(RS-485)-TB-P(12-48VDC)
Modbus Gateway
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Shenzhen
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are
intact while using the device for the first time.
1.
Modbus gateway
2.
3.
CD
4.
5.
Straight-through cable
6.
7.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

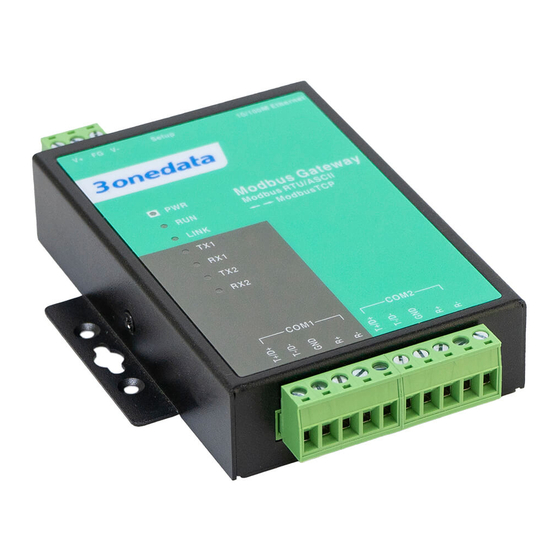

The product is managed wall-mounted MODBUS gateway.
The model is GW1102-2D(RS-485)-TB-P(12-48VDC) (2 RS-
485/422 serial ports + 1 100M copper port + 1 12~48VDC
power supply).
【Panel Design】
Top view, main view and bottom view
Xili,
Nanshan
District,
Rear view
Quick installation guide
Power adapter
Certification
1.
100M copper port
2.
Reset button
3.
Terminal block for power input
4.
Power supply indicator PWR
5.
Running indicator RUN
6.
Copper port indicator LINK
7.
Transmitting indicator of serial port TX1-TX2
8.
Receiving indicator of serial port RX1-RX2
9.
Lugs
10.
RS-485/422 serial port COM1-COM2
11.
Corresponding DIP switch of COM2
12.
Corresponding DIP switch of COM1
13.
Cover plate for DIP switch
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
