GW1102 Series
Modbus Gateway user manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】
GW1102 series products are MODBUS gateway device. The
series products include GW1102-2D (RS-232) and GW1102-2D
(RS-485) two models, which are used as a connection between
Modbus TCP and Modbus RTU/ASCII devices. The series
products provided 2 port RS232 (RJ45 connector) or RS485/422
(5 bit terminal block) and 1 port 10/100M Ethernet.
Modbus TCP, Modbus RTU and Modbus ASCII protocol are
integrated in the series of products, users can easily realize the
seamless integration of Modbus Ethernet devices and Modbus
serial devices and even multi master and slave hybrid networks.
At the same time, the user can be set up by Web or Telnet. The
simple design can not only realize the fast application, but also
guarantee the application of the entire real environment.
The series of products using EMC protection design. Power
has over current, over voltage protection, and can work in rugged
environment. The design supports 2 kinds of wall mounting
installation, easy to use for your projects.
【Packing list】
Please check the packaging and accessories by your first
using.
Modbus gateway ⅹ 1
User manual ⅹ 1
CD ⅹ 1
Certificate of quality ⅹ 1
Warranty card ⅹ 1
Please inform us or our distributor if your equipments have
been damaged or lost any accessories, we will try our best to
satisfy you.
【Feature】
Support 2 port RS232 (RJ45 connector) or 2 port
RS485/422 (5 bit terminal block)
Support 1 10/100M adaptive Ethernet interface
300bps~115200bps
baud
rate
communication
Support Modbus TCP, Modbus RTU, Modbus ASCII, IP,
ARP, DHCP, DNS protocol
Slave mode support 16 TCP master connections
Master mode support 32 slave TCP connection requests
Support RTU Slave, RTU Master, ASCII Slave, ASCII
Master four operating modes
Support Response Timeout and Interval Timeout setting
Support ID mapping function, to achieve the management of
the host ID
Support Telnet and Web
Support IP address and MAC address filtering function
Support gateway, cross route communication
IP40 grade protection, metal shell, wall mounted installation
Working temperature is -40~75℃

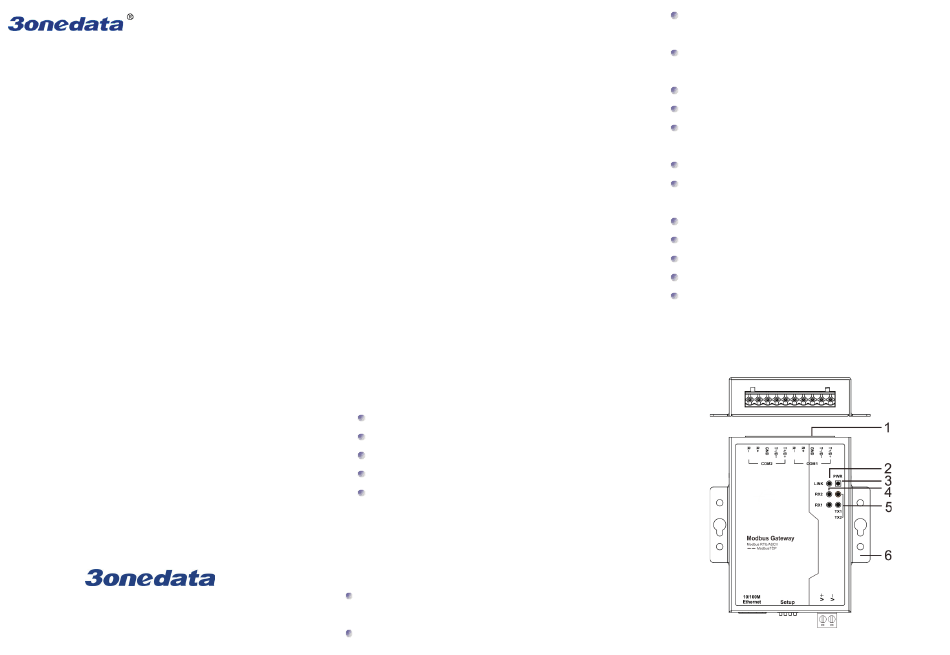

【Panel layout】
GW1102-2D (RS-485)-P(9~48VDC)
and
nonblocking
