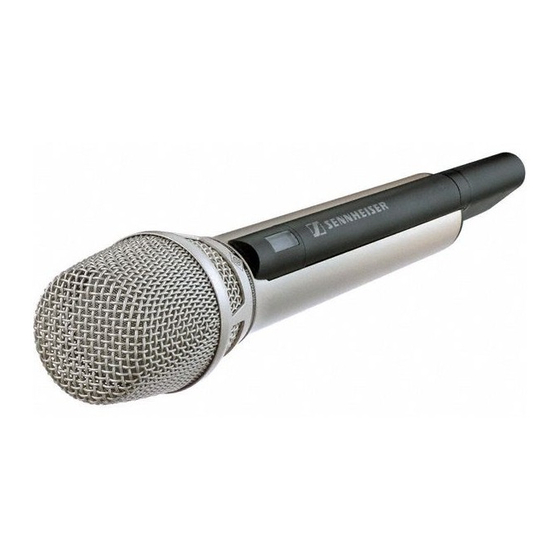

Sennheiser SKM 5200 Product Sheet

SKM 5200
RF Wireless Systems |

General Description

The SKM 5200 is the professional choice for demanding applications in broadcast
stage and live entertainment. In the more and more crowded UHF spectrum its
switching bandwidth and tuneable frequencies make it agile to use the transmitter
in difficult environment. Very much care was taken to achieve a robust construction
while keeping its very well established design.

Features

36 MHz switching bandwidth
j
Robust Housing
j
Backlit display
j
Tuneable frequencies
j
Adjustable lowcut filter with three settings
j
Sensitivity adjustable in 1 dB steps
j
Colour coding with 8 different colours
j

Capsules

ME 5005 e
j
ME 5005
j
ME 5004
j
ME 5009
j
ME 5002
j
MD 5235
j
KK 104-S
j
KK 105-S
j

Recommended Accessories

B 5000 battery compartment
j
BA 5000 accupack (incl. charging adaptor)
j
L 50 charger for 2 accupacks
j
KEN 5200 coloured identification rings
j
MZW 5000-ANT foam windshield anthrazite
j
5000 Series Hand-Held Transmitters
Cat. No. 005273
Cat. No. 005274
Cat. No. 003554
Cat. No. 512888
Cat. No. 003824

Technical Data SKM 5200

RF output power ...........................................50 mW (–3 dB)
Frequency range ............................................450–960 MHz
Switching bandwidth ................................................36 MHz
Frequency setting ........................ tuneable in 5 kHz steps
Modulation ....................................................... wideband FM
Nominal/peak deviation ....................± 40 kHz / ± 56 kHz
Noise reduction system ...................................HiDyn plus™
Audio frequency response ...........................60–20,000 Hz
Signal-to-noise ratio ........................................114 dB(A)
THD (at nominal deviation) ..........................................0.5 %
Sensitivity ..................................... switchable in 1 dB steps
Operating time .........................................8 h with B 5000-1
Temperatur range ............................................ -10 ... +55° C
Dimensions .................................length: 257 mm (10.12˝),
Weight (incl. battery) ................approx. 300 g (10.58 oz)

Product Variants

SKM 5200 A handheld transmitter:
j
450 - 570 MHz, colour: steel black
SKM 5200 B handheld transmitter:
j
534 - 674 MHz, colour: steel black
SKM 5200 C handheld transmitter:
j
638 - 762 MHz, colour: steel black
SKM 5200 D handheld transmitter:
j
726 - 866 MHz, colour: steel black
SKM 5200 E handheld transmitter:
j
830 - 960 MHz, colour: steel black
SKM 5200 NI-A handheld transmitter:
j
450 - 570 MHz, colour: nickel
SKM 5200 NI-B handheld transmitter:
j
534 - 674 MHz, colour: nickel
SKM 5200 NI-C handheld transmitter:
j
638 - 762 MHz, colour: nickel
SKM 5200 NI-D handheld transmitter:
j
726 - 866 MHz, colour: nickel
SKM 5200 NI-E handheld transmitter:
j
830 - 960 MHz, colour: nickel
SKM 5200 BK-A handheld transmitter:
j
450 - 570 MHz, colour: black
SKM 5200 BK-B handheld transmitter:
j
534 - 674 MHz, colour: black
SKM 5200 BK-C handheld transmitter:
j
638 - 762 MHz, colour: black
SKM 5200 BK-D handheld transmitter:
j
726 - 866 MHz, colour: black
SKM 5200 BK-E handheld transmitter:
j
830 - 960 MHz, colour: black
SKM 5200
rms
from 0 ... - 40 dB
8 h with BA 5000-1
Ø: 44 mm (1.73˝)
Cat. No. 500434
Cat. No. 500435
Cat. No. 500436
Cat. No. 500437
Cat. No. 500628
Cat. No. 500441
Cat. No. 500442
Cat. No. 500443
Cat. No. 500444
Cat. No. 500629
Cat. No. 500448
Cat. No. 500449
Cat. No. 500450
Cat. No. 500451
Cat. No. 500630
