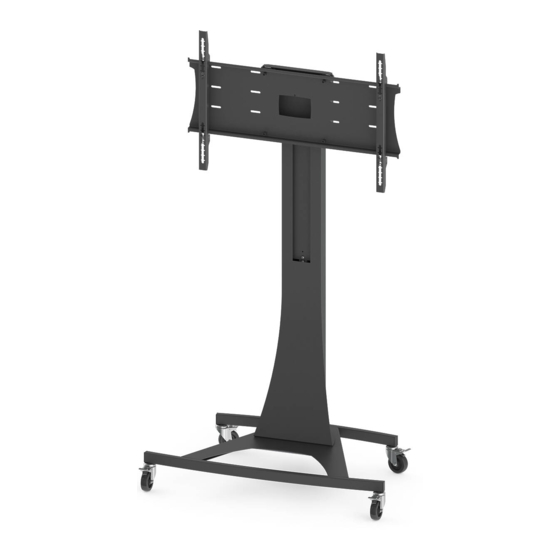

AXT15TPL
Screen Size: 71 - 110"
Guide Max. Weight: 200kg
Revised 26/04/24
*Please check model specific details before installing*
WARNING
Please carefully inspect the product before assembling. If you notice any apparent damage, call your
carrier claims agent and do not continue the installation until it has been reviewed. Please watch for pinch
points. Do not put your fingers between moveable parts. Do not tamper with or disassemble any spring
loaded parts. Before installing, make sure that the supporting surface will support five times the combined
load of the solution and the hardware. Never exceed the maximum load capacity. Please also layout all
components to ensure that you have all of the required parts before proceeding (see BOM list on following
page). Use of this product for anything other than its specified use may result in failure or personal
injury. This product is intended for indoor use only. We recommend using a qualified trades person for
installation. Use an assistant or lifting equipment to lift and position products.
For support, please call: +44 (0)1865 767676 or email: sales@unicol.com
Advertisement
Related Manuals for Unicol AXT15TPL
Summary of Contents for Unicol AXT15TPL
- Page 1 Use of this product for anything other than its specified use may result in failure or personal injury. This product is intended for indoor use only. We recommend using a qualified trades person for installation. Use an assistant or lifting equipment to lift and position products. For support, please call: +44 (0)1865 767676 or email: sales@unicol.com...
- Page 2 01865 767676 sales@unicol.com www.unicol.com TOOLS REQUIRED INSTALLERS REQUIRED 5mm Allen Keys Pozi Head Screwdriver 19mm Spanner 17mm Spanner COMPONENTS DESCRIPTION Axia Titan PowaLift Mast Axia Titan PowaLift Trolley Base Universal PZX9 Screen Mount Universal PZX9 Screen Arms Converter Plate Remote Control & Wired DPF Remote...
- Page 3 01865 767676 sales@unicol.com www.unicol.com STEP 2 STEP 1 With mast laying flat on a table (as shown above) Once secure, stand the trolley upright and pick up the base with the help of another person place on a flat, stable surface. Lock the brakes and offer the base to the mast.
- Page 4 01865 767676 sales@unicol.com www.unicol.com STEP 6 STEP 5 Using another team member, lift the screen up and Once centred, ensure the bottom screws are not gradually offer it up to the back plate. Gently tilting screwed tight and screw down the top screws to the screen forward, hook the arms over the lip of level the screen.
