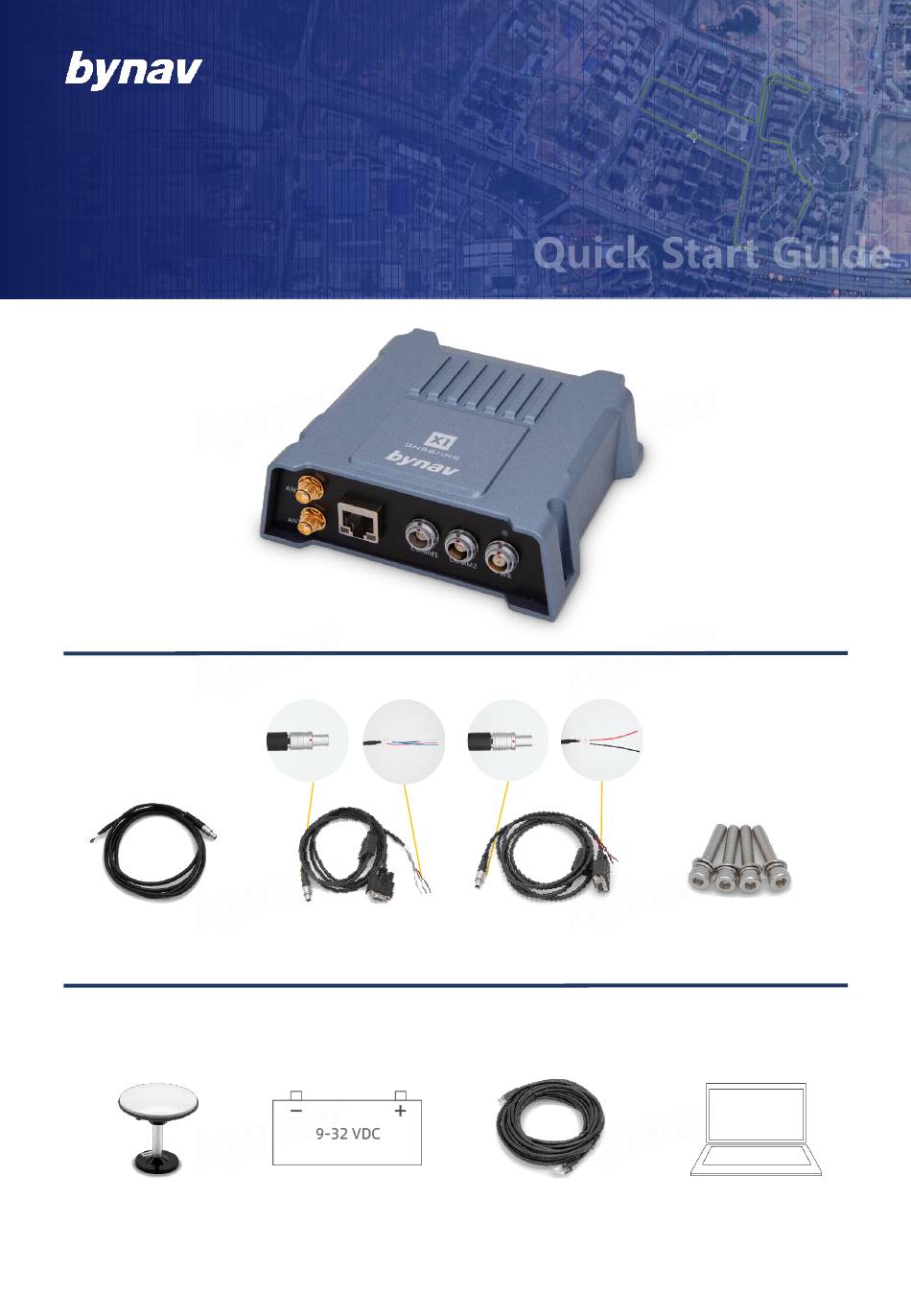

X1 Quick Start Guide

Packing List

Communication

Power cable

M5 Screws×4

Cable1 (COMM1)

Cable2 (COMM2)

Other Devices

DC Power Supply

Ethernet Cable

High precision

Laptop

9~32VDC, Output>10W

Mainly used for upgrade

GNSS Antenna

X 1 Q u i c k S t a r t G u i d e

w w w . b y n a v . c o m

Need help?

Do you have a question about the X1 and is the answer not in the manual?

Page 1 X1 Quick Start Guide Packing List Communication Communication Power cable M5 Screws×4 Cable1 (COMM1) Cable2 (COMM2) Other Devices DC Power Supply Ethernet Cable High precision Laptop 9~32VDC, Output>10W Mainly used for upgrade GNSS Antenna X 1 Q u i c k S t a r t G u i d e...
Page 2 Connect COMM1 to computer using Communication cable1, and COMM2 using Communication Cable 2 ③ Connect power to X1 and check the power LED be green solid Power LED Green Solid X 1 Q u i c k S t a r t G u i d e...
Page 3: Start Communication
SAVECONFIG At this moment X1 positioning status is Single Point Solution 3. To get high precision position, X1 should work in RTK mode by receiving correction data from Base station. • The correction data is received by COM2 by default, through Ethernet/Serial or Radio.
Page 4 LOG COM1 ENUAVR ONTIME 1 ⑤ Measure manually the distance from X1 navigation center to the phase center of auxiliary antenna in X, Y, Z axis and fill the values into BY_Offset. (you can simply use a band tape) ⑥...
Page 5 At last save configurations before start using X1 by entering: SAVECONFIG RESET Until now the configuration of X1 has been finished. You don’t have to configure it anymore unless the devices are moved. 5. Start using X1 Everytime when you power on X1 and start using it, X1 would go through a process called System Alignment.
