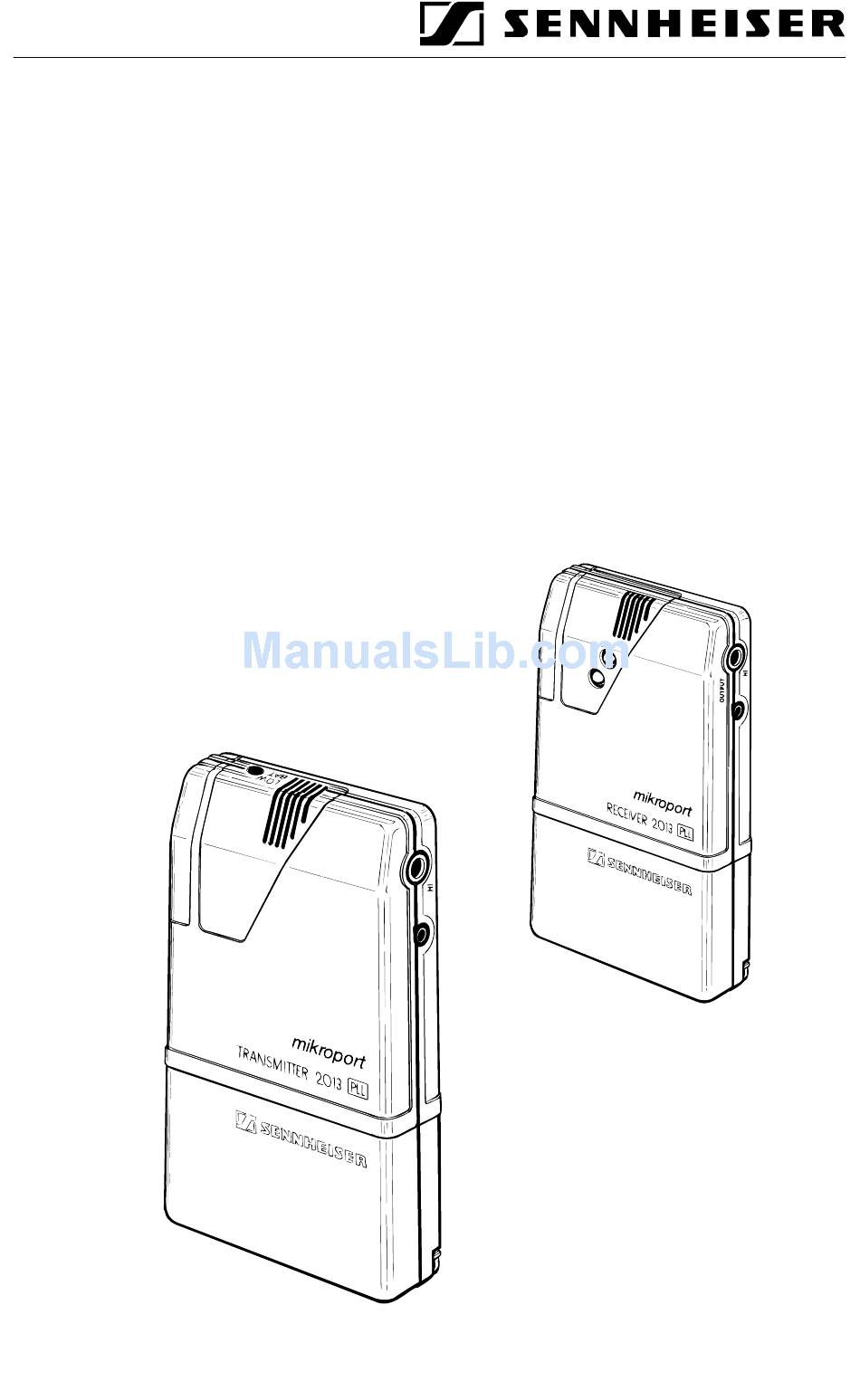

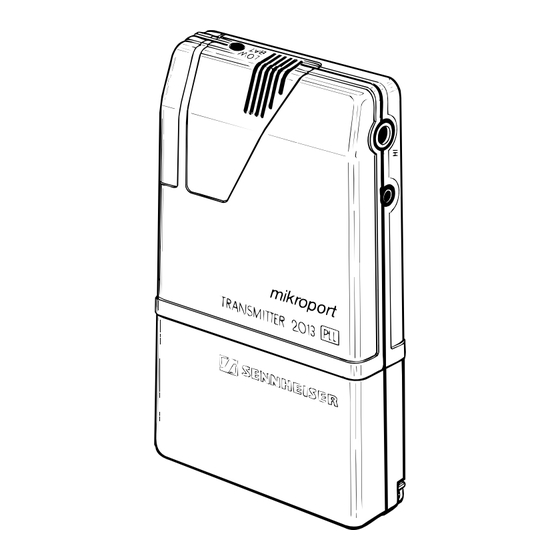

- Page 1 GEBRAUCHSANLEITUNG INSTRUCTIONS FOR USE INSTRUCTIONS POUR L‘USAGE ISTRUZIONI PER L‘USO MODO DE EMPLEO GEBRUIKSAANWIJZING SYSTEM 2013 BRUKSANVISNING...
-
Page 2: Built-In Microphone
OUTPUT JACK COVER FOR CONNECTION TO HEARING AID CHANNEL SELECTOR SWITCH FOR UP TO 16 FREELY-SELECTABLE HEADPHONE FREQUENCIES OUTPUT JACK INTERCHANGEABLE CHARGING CONTACT FOR CHARGING STANDARD OR IN CHARGING UNIT L 2013 (ONLY ON RECHARGEABLE RECHARGEABLE BATTERY PACK) BATTERY PACK... -
Page 3: Battery Indicator Lamp
ADDITIONAL DEVICES, E.G. CASSETTE RECORDER CHANNEL SELECTOR SWITCH FOR UP TO 16 FREELY-SELECTABLE FREQUENCIES CONNECTION FOR ADDITIONAL MICROPHONE MKE 2013 INTERCHANGEABLE CHARGING CONTACT FOR CHARGING STANDARD OR IN CHARGING UNIT L 2013 (ONLY ON RECHARGEABLE RECHARGEABLE BATTERY PACK) BATTERY PACK... -
Page 4: System Description
Setting channels on transmitter and receiver Receiver EK 2013 PLL Connection possibilities on receiver Integrated antenna Operation on hearing aid with audio input Operation on hearing aid without audio input Operation with headphones Lockable cover Automatic fade-in and microphone adjustment on receiver 2.10... - Page 5 MKE 2013 on the Transmitter SK 2013 PLL. The wide range of accessories allows connection of the receiver to nearly any type of hearing aid; the connection to the hearing aid can be either electrical or inductive.
- Page 6 RECHARGEABLE battery packs, type BA 2013. These battery packs are charged over night separately or in conjunction with their unit in the Dual Charging Unit L 2013. One battery pack has sufficient power for a normal working day (up to 12 hours). It is completely recharged over night.
-
Page 7: Initial Operation
The RECHARGEABLE battery pack BA 2013 is recommended for daily use. The battery pack is slid onto the base of the transmitter or receiver in the same manner as the standard battery pack. The RECHARGEABLE batteries are recharged in the Dual Charging Unit L 2013. -
Page 8: Frequency Selection
The transmission frequencies are set with the rotary switch (D) on the transmitter and receiver. The assignment of a switch position to a frequency is listed on the back of the unit on the information plate. Depending on the model, up to 16 frequencies are available. - Page 9 - even without additional accessories - Connection possibilities on receiver EK 2013 PLL There are two stereo cinch jacks on the left side of the unit: a large jack with 3.5 mm dia. and a small jack with 2.5 mm dia.
- Page 10 Lockable cover on receiver In order to reach the operating elements, a slide (S) is located on the right side of the unit. This protects the operating elements against unauthorized or accidental use. It is secured with a set screw (M), which is screwed in completely in order to open the slide.
- Page 11 This adjustment is made exclusively by the hearing aid dealer! An adjuster (E) for the reduction depth of the automatic fade-in is located at the top behind a hole in the housing. It can be turned with a 1.6 mm dia. screwdriver. Turning clockwise increases the reduction depth of the connected hearing aid microphones.
- Page 12 ATTENTION: The receiver is not functioning! Both indicator lamps are arranged on the front of the receiver so that they can also be dependably seen over a greater distance by the person equipped with the transmitter. In this way it is easy to ascertain whether the speech connection exists.
- Page 13 25 cm MICROPHONE MKE 2013 The 3.5 mm dia cinch jack (B2) is available for the connection of high-level sound sources, such as tape recorders, TV and Hi-Fi components. The connection cable of the connected additional microphone MKE 2013 acts as an antenna.
- Page 14 The microphone sensitivity should be set high enough on the regulator (R) that, on the one hand, the green LED on the Receiver EK 2013 PLL does not go out during normal speaking and, on the other hand, low enough that normal surrounding noise does not activate the LED display.
- Page 15 Power supply unit for charging unit, operates on 230 V. (Art No. 03433) NT 2013-120 Power supply unit for charging unit, operates on 120 V. (Art. No. 03434) NT 2013-UK Power supply unit for charging unit, operates on 240 V (GB).
-
Page 16: Technical Data
1 Battery compartment B 2013 1 Projection antenna 44891 Also included in the System 2013 (set of transmitter and receiver) are two securing plates with retaining straps. The System 2013 is supplied in a sturdy transport and storage carrying case. - Page 17 Operating time > 14 hours with RECHARGEABLE battery pack BA 2013 > 40 hours with 2 x Alkaline AA cells in B 2013 Battery check red LED for operating voltage < 2.2 V Dimensions 18 x 58 x 95 mm Weight (incl.
- Page 18 Sennheiser electronic KG · D-30892 Wedemark Printed in Germany Telephone (0 51 30) 6 00-0 · Telex 9 24 623 · Fax (0 51 30) 63 12 Publ. 7/93 44925 /A 04...
