Summary of Contents for Sennheiser SI 29-5

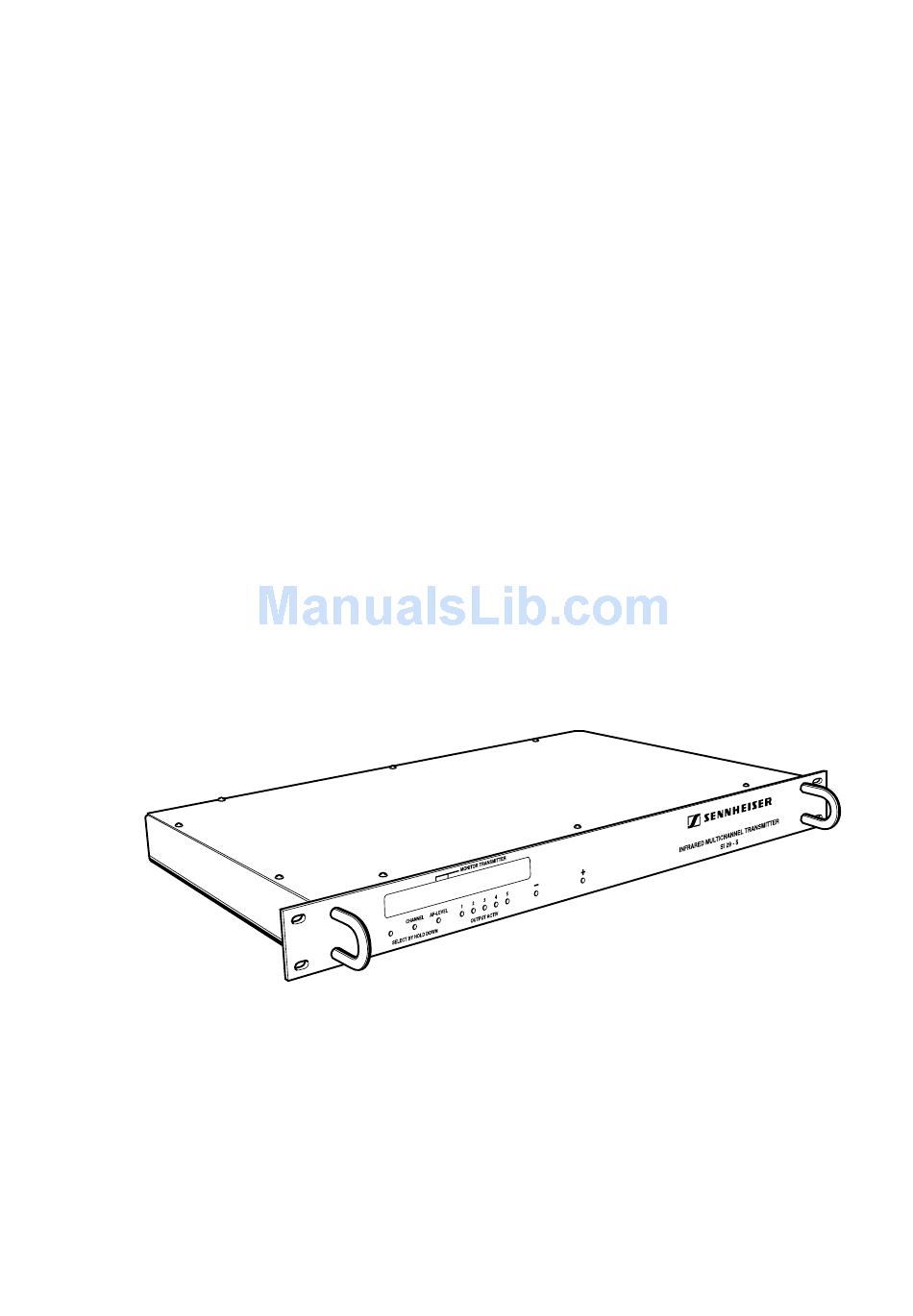

- Page 1 SI 29-5 Instructions for use...
- Page 2 Putting the IR modulator into The SI 29-5 infra-red modulator is powered via the NT 29 plug-in mains unit . operation/power supply It is connected to the DC input socket by a special twist-lock connector. The NT 29-5 mains unit is available in different versions, so that the SI 29-5 modulator can be used with the respective voltage of your country: •...
- Page 3 . The SI 29-5 will modulate the Connecting IR radiators infra-red light which will then be radiated by the IR radiators. You can connect a maximum of 50 radiators to the SI 29-5 modulator. You can also use different radiators (mixed operation): • SZI 20 Low power infra-red radiator for small rooms, cascadable •...
- Page 4 Do not duplicate channel numbers! Cascade the infra-red modulators with a BNC connection cable. Use the cascading sockets ( ) for interconnecting. Since these sockets are internally connected in parallel, it does not matter whether you choose the left or the right socket...
- Page 5 " and "+" or "-", you start Choosing the audio input INPUT the input search for sockets 1 - 5 at the back of the modulator. With the "+" button you choose a higher input number. Holding this button down initiates fast search, continually cycling from the beginning.
- Page 6 (full modulation). When both buttons are released, the selected AF level is stored. This completes all settings for the first audio input channel. For adjusting the next input channel, start again with...
- Page 7 5 transformer balanced XLR-3 inputs or a 25-pin SUB-D connector AF input sensitivity 50 mV - 2.5 V (line) The modulator input can optionally be fitted with microphone sensitivity (0.5 mV - 30 mV which can be done by your local Sennheiser dealer.
- Page 8 Sennheiser electronic GmbH & Co. KG D-30900 Wedemark Telefon: 05130/600-0 Telefax: 05130/600-300 Printed in Germany Publ. 6/97 54598 / A03...
