USER MANUAL
ACTIVE RUN 100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Active Run 100 and is the answer not in the manual?

Questions and answers

Related Manuals for BODYTONE Active Run 100

Summary of Contents for BODYTONE Active Run 100

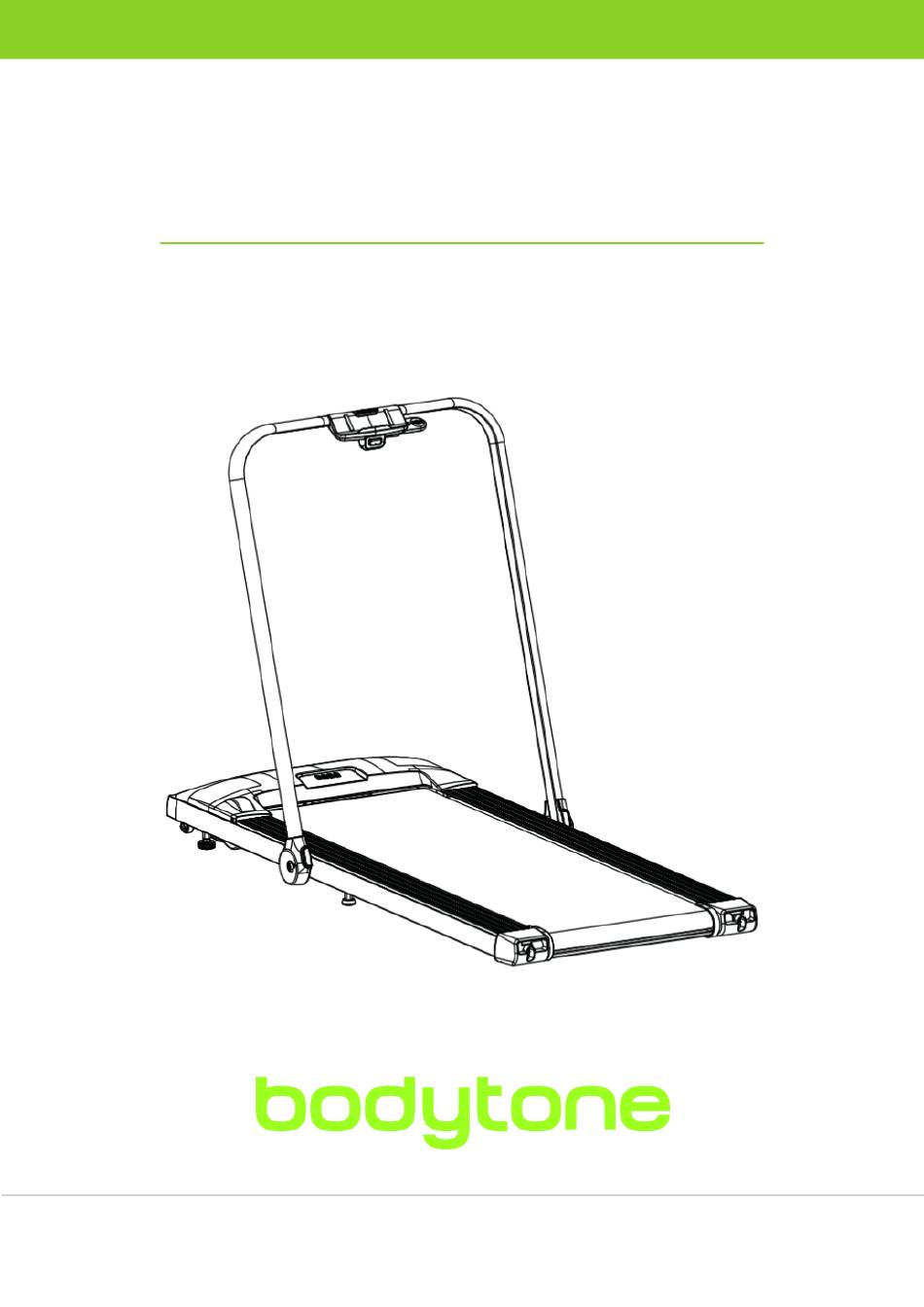

  • Page 1 USER MANUAL ACTIVE RUN 100...

  • Page 2: Table Of Contents

    CONTENT 1. Important Precautions 2. Main Technical Features 3. Assembly 4. Training Guidelines 5. Treadmill Operation 6. Maintenance 7. Recycling Information 8. Common mistakes 9. Warranty WARNING Read this manual before using the equipment.

  • Page 3: Important Precautions

    1. IMPORTANT PRECAUTIONS User Minimum Height 140 cm User Maximum Weight 110 kg WARNING It is very important to properly lubricate the machine with silicone Teflon. This lubrication must done regularly depending each person, even before their first use. You must keep the original packaging with its protections, receipt of purchase, manual and components during the warranty period.
  • Page 4 7. Keep children under 12 years of age and pets away from the equipment. Maintain a safe distance. 8. Check the manual for the maximum weight that your equipment can support. Excessive weight could cause the operating system to malfunction, which will not be covered by the warranty.
  • Page 5 19. Correct lubrication of the treadmill with silicone oil or Teflon is very important. This lubrication must be done periodically depending on each person, even before its first use. Lubrication should be carried out as follows: disconnect the equipment from the electrical network (if you have one), pull up the side with one hand and spread the oil over the board.

  • Page 6: Main Technical Features

    2. MAIN TECHNICAL FEATURES Tablet Holder Display Engine Cover Running Surface Transport Wheel Side Stripe End Cap Input Voltage 220Ve Frequency 50/60 Hz Career Zone 1200 x 420 mm Tiempo, Velocidad, Control Remoto, Function Autolubricación fácil Speed Range 0.8-12 Km/h 100 kgs User Maximum Weight Force...

  • Page 7: Assembly

    3. ASSEMBLY WARNING Assembly requires two people. Nº Items Remote Control Manual Silicone Oil Wrench Multiple Key Security Key STEP 1 1. Take the machine out of the package between two people and place it lightly on a flat ground. 2.
  • Page 8 STEP 2 1. Place the security key on the yellow background as shown in the image. 2. Turn on the power switch and you can use the equipment. STEP 3 When not using the treadmill, loosen the security screws so that the treadmill can be folded in the direction of arrow A until the transport wheels pop out in the direction of arrow B to save space.
  • Page 9 You should leave free space around the treadmill in the training area for safety. The free area cannot allow another machine and must include the area for emergency disassembly.

  • Page 10: Training Guidelines

    4. TRAINING GUIDELINES CAUTION: Before starting this or any exercise program, consult your doctor. This is especially important for people over 35 years old or for people with health problems. If your equipment is equipped with a pulse sensor, you should note that it is not a medical instrument.

  • Page 11: Treadmill Operation

    5. TREADMILL OPERATION CONSOLE 1. TIME: Shows the exercise time. Range: 0:00-99:59. The time indicator is on when the time is displayed. 2. DISTANCE: Shows the sports distance. Range: 0:00-99:9. The distance indicator lights up when the distance is displayed. 3.
  • Page 12 PRESET MODE/START DESCRIPTION MODE KEY DESCRIPTION This mode includes: time countdown mode, distance countdown mode, calorie countdown mode. In each mode, the target value of the relevant mode can be controlled by the speed addition and subtraction key on the remote control. START-UP INSTRUCTIONS Safety lock switch position to secure the safety lock to the panel.

  • Page 13: Maintenance

    6. MAINTENANCE This product must be grounded. If the power cord is damaged it must be replaced with a power cord recommended by the manufacturer. • Do not tangle the power cord REGULAR MAINTENANCE OF THE TREADMILL STORAGE: Keep your equipment in a closed place, away from dust or moisture. Do not store it in a garage or indoor backyard, or near water.
  • Page 14 ADJUST THE BELT: if the belt slips on the machine when walking). Start the treadmill and increase the speed. If the strap slips, use a 6mm wrench, turn the bolts on both sides 1/4 clockwise. Repeat this procedure until the strap is tight.

  • Page 15: Recycling Information

    7. RECYCLING INFORMATION This electronic product should not be disposed of with municipal waste. To preserve the environment, this product must be recycled after its useful life as required by law. 8. COMMON MISTAKES If nothing is displayed on the screen after power on, maybe the connection line of the PBC is not connected well or the transformer is broken.

  • Page 16: Warranty

    9. WARRANTY We have one year quality guarantee for the products. Within the warranty period, we provide the spare parts for FREE. If it is caused by assembly failure, incorrect use or replacement of parts, our company is not responsible. It should show the series of our products no.

This manual is also suitable for:

Ar100
